TT32R/L Threading

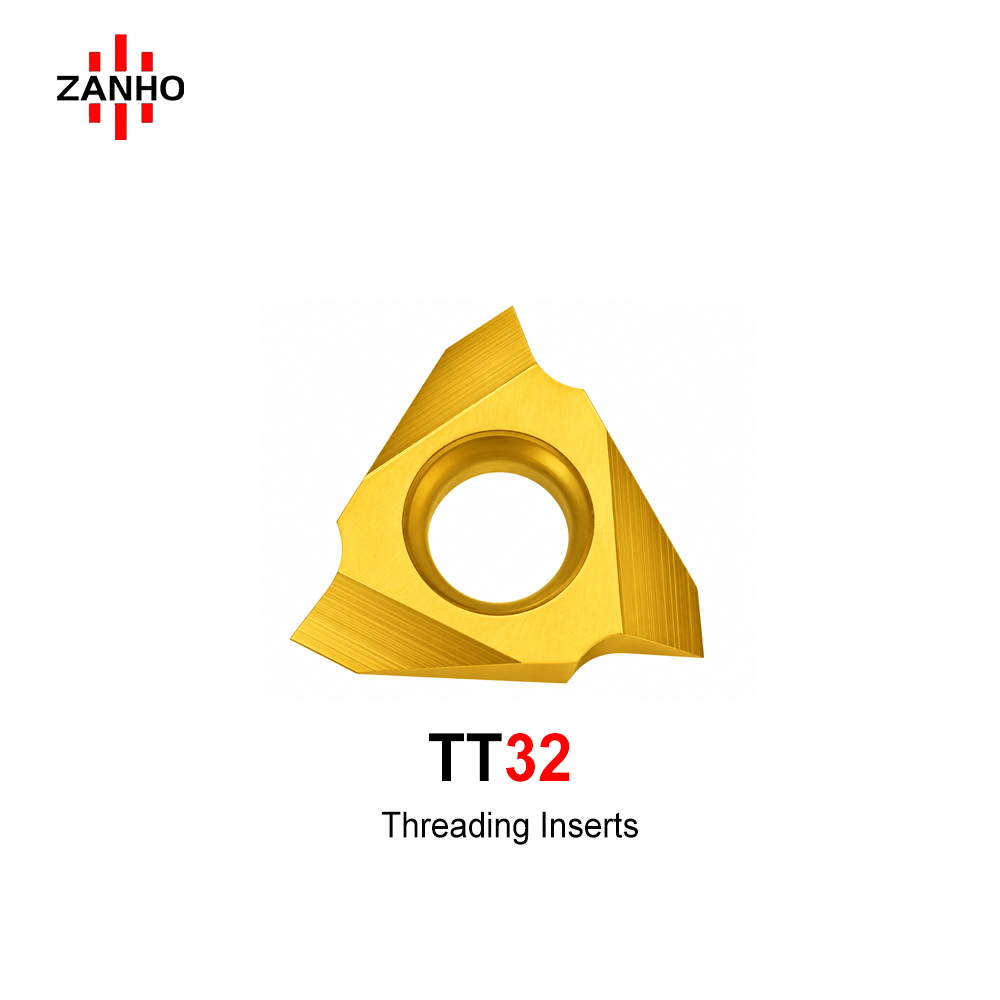

ZANHO TT32 series: High-precision vertical threading inserts designed for standard thread profiles. Supporting both 60° Metric (ISO) and 55° Whitworth (G/BSP) threads, these inserts provide exceptional stability and accuracy. Paired with KTTR/L tool holders, they are ideal for external threading operations where a sufficient relief groove is available.
Categories:
Learn More
Download PDF
Description

Technical Features

  • Vertical Mounting Design: Provides superior rigidity and clamping force for heavy-duty threading.
  • Dual Profile Support: Covers both 60° Metric M-thread and 55° Whitworth G/BSP pipe threads.
  • Standard Profile (No Wiper): Designed for standard thread forms where specific relief grooves are present.
  • High Precision Ground: Ensures tight tolerances and clean thread flanks for high-quality assembly.
  • Robust Toolholding: KTTR/L holders feature high-strength clamping for vibration-free performance.

TT32 Series Dimensions (mm)

Designation Pitch Dimensions Edge Info
Right Left Metric (mm) Inch (TPI) A T φd θ R
TT32R6000 TT32L6000 0.5 - 2.5 56 - 10 9.525 3.18 4.4 60° 0.00
TT32R6001 TT32L6001 1.0 - 2.5 24 - 10 0.10
TT32R6002 TT32L6002 1.5 - 2.5 16 - 10 0.20
TT32R6003 TT32L6003 2.5 11 - 10 0.30
TT32R5501 TT32L5501 - 28 - 10 55° 0.10
TT32R5502 TT32L5502 - 14 - 10 0.20

KTTR/L Tool Holder Dimensions

Designation Dimension (mm) Spare Parts
Right Left H / h / B / F H1 H2 / L1 L Screw Wrench
KTTR1010K-16 KTTL1010K-16 10 4 H2: 2.5
L1: 18		 125 M4*8 T15
KTTR1212K-16 KTTL1212K-16 12 2
KTTR1616K-16 KTTL1616K-16 16 -
KTTR2020K-16 KTTL2020K-16 20 -
KTTR2525M-16 KTTL2525M-16 25 - 150
