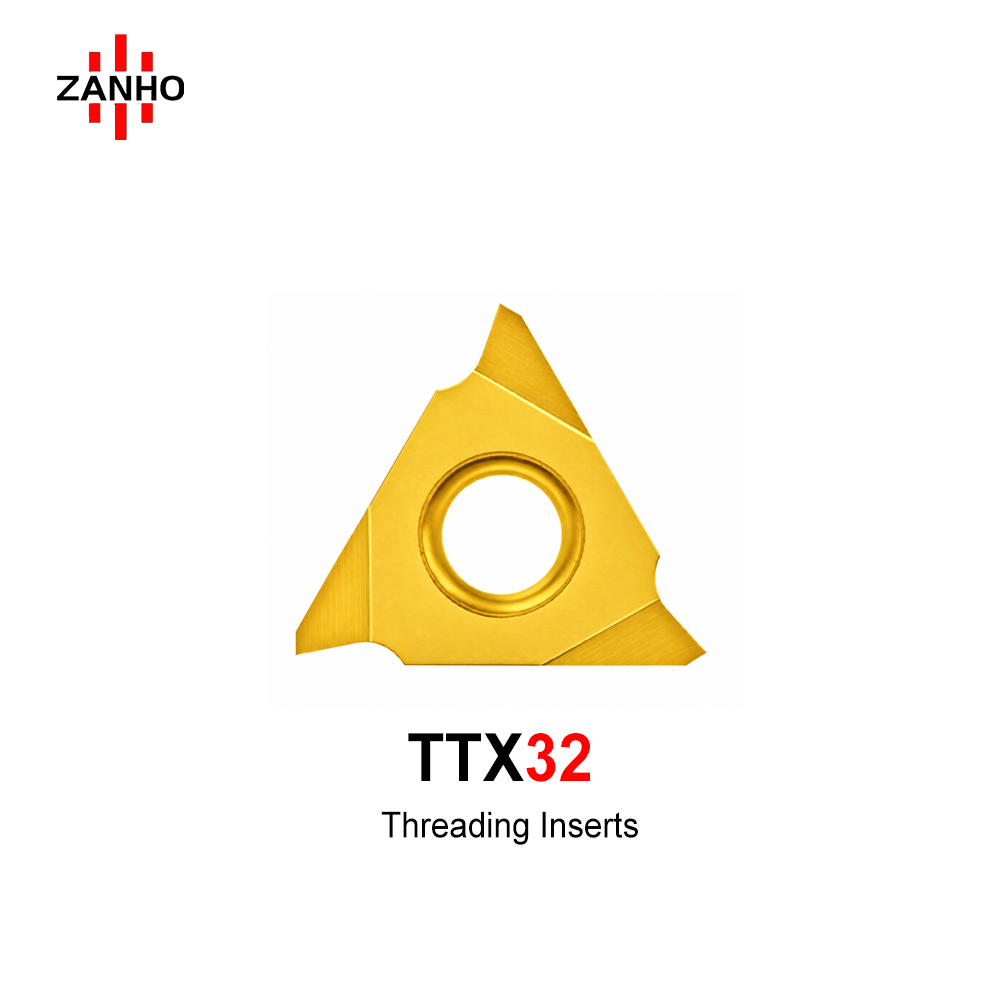

TTX32R TTX32L | Vertical Threading Insert for Swiss Lathe

ZANHO TTX32 series: Vertical threading inserts designed for Swiss-type lathes and small automatic lathes. These inserts feature a multi-pitch capability, allowing one insert to process multiple thread pitches including Metric (ISO), UN, and Whitworth (W/BSPT). Compatible with Kyocera KTTX toolholders, the vertical mounting ensures high rigidity and precision in tight machining spaces. Mirror-polished rake face for smooth chip evacuation without a wiper.

Categories: Vertically mounted threading insert

Download PDF

Technical Features

Swiss-Type Lathe Optimization: Specifically designed for small-part machining on automatic lathes.
Universal Thread Compatibility: One insert can process multiple pitches for Metric (ISO), Unified (UN), Whitworth, and Pipe threads (BSPT/NPT).
Precision Ground: Ensures high dimensional accuracy and exceptional surface finish on threads.
Kyocera Compatible: Directly interchangeable with TTX32 series systems.
Stable Toolholding: KTTX holders provide rigid clamping for vibration-free threading.

TTX32 Series Dimensions (mm)

Designation		Pitch		Dimensions			Corner Specs
Right	Left	Metric	Inch (TPI)	A	T	φd	θ	R	S1 / S2
TTX32R6000	TTX32L6000	0.5-1.0	56-32	9.525	3.18	4.4	60°	0.00	0.6 / 1.12
TTX32R60005	TTX32L60005	0.5-1.0	48-32					0.05	0.6 / 1.12
TTX32R6001	TTX32L6001	1.0-2.0	28-14					0.10	1.1 / 1.62
TTX32R6000S	TTX32L6000S	0.5	56-48					0.00	0.3 / 1.12
TTX32R60005S	TTX32L60005S	0.5	48					0.05	0.3 / 1.12
TTX32R5501	TTX32L5501	-	28-19				55°	0.10	0.75 / 1.01
TTX32R55015	TTX32L55015	-	29-11				55°	0.15	1.2 / 1.46

KTTX Tool Holder Dimensions

Designation		Dimension (mm)				Spare Parts
Right	Left	H / h / B	F	L1	L	Screw	Wrench
KTTXR1010K-16F	KTTXL1010K-16F	10	10	17.6	125	M4*8	T15
KTTXR1212K-16F	KTTXL1212K-16F	12	12
KTTXR1616K-16F	KTTXL1616K-16F	16	16
KTTXR2020K-16F	KTTXL2020K-16F	20	20
