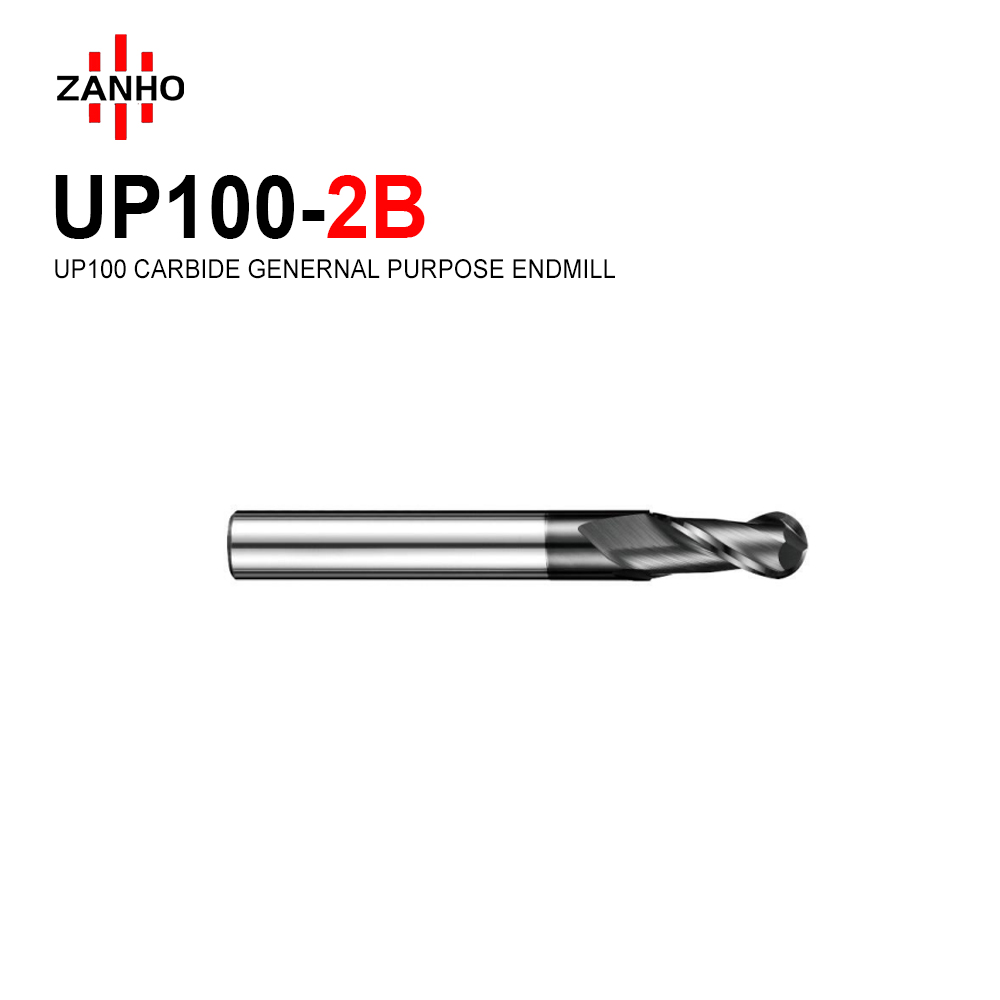

UP100-2B-BALL NOSE

  • Type: 2-Flute Ball Nose (Flat Head) for 3D profiling and contouring.
  • Series: UP100 Universal Type for high versatility and cost-effectiveness.
  • Coating: AlCrN Coating for enhanced thermal stability and wear resistance.
  • Helix Angle: 35° Helix optimized for stable cutting and chip removal.
  • Hardness: Ideal for materials up to 45 HRC (Carbon Steel, Alloy Steel, Cast Iron).
  • Range: Comprehensive precision sizes from R0.5 to R10.0
Categories:
Learn More
Download PDF
Description

ZANHO UP100 Series Features

  • 2-flute R-type milling design for profile and curved-surface machining.
  • UP100-2B and UP100-2BH specifications cover standard and extended overall lengths.
  • Multiple R sizes and shank diameters are available for different machining requirements.
  • The specification range includes overall lengths of 50 mm, 60 mm, 75 mm, 100 mm, 150 mm and 200 mm as shown in the supplied chart.
  • The supplied application chart indicates strong suitability for carbon steel and alloy steel, and suitability for cast iron.

UP100-2B Standard-Length Specifications

Order Number Specification D (mm) L1 (mm) D1 (mm) L (mm)
UP100-2B-01002 R0.5*D4*50L*2F 1 2 4 50
UP100-2B-01503 R0.75*D4*50L*2F 1.5 3 4 50
UP100-2B-02004 R1*D4*50L*2F 2 4 4 50
UP100-2B-02505 R1.25*D4*50L*4F 2.5 5 4 50
UP100-2B-33006 R1.5*D3*50L*2F 3 6 3 50
UP100-2B-03006 R1.5*D4*50L*2F 3 6 4 50
UP100-2B-03507 R1.75*D4*50L*2F 3.5 7 4 50
UP100-2B-04008 R2*D4*50L*2F 4 8 4 50
UP100-2B-55010 R2.5*D5*50L*2F 5 10 5 50
UP100-2B-05010 R2.5*D6*50L*2F 5 10 6 50
UP100-2B-06012 R3*D6*50L*2F 6 12 6 50
UP100-2B-08016 R4*D8*60L*2F 8 16 8 60
UP100-2B-10020 R5*D10*75L*2F 10 20 10 75
UP100-2B-12024 R6*D12*75L*2F 12 24 12 75
UP100-2B-14028 R7*D14*100L*2F 14 28 14 100
UP100-2B-16032 R8*D16*100L*2F 16 32 16 100
UP100-2B-18036 R9*D18*100L*2F 18 36 18 100
UP100-2B-20040 R10*D20*100L*2F 20 40 20 100

UP100-2BH Extended-Length Specifications

Order Number Specification D (mm) L1 (mm) D1 (mm) L (mm)
UP100-2BH-01002 R0.5*D4*75L*2F 1 2 4 75
UP100-2BH-01503 R0.75*D4*75L*2F 1.5 3 4 75
UP100-2BH-02004 R1*D4*75L*2F 2 4 4 75
UP100-2BH-02505 R1.25*D4*75L*2F 2.5 5 4 75
UP100-2BH-03006 R1.5*D4*75L*2F 3 6 4 75
UP100-2BH-33006 R1.5*D3*75L*2F 3 6 3 75
UP100-2BH-33006A R1.5*D3*100L*2F 3 6 3 100
UP100-2BH-04008 R2*D4*75L*2F 4 8 4 75
UP100-2BH-04008A R2*D4*100L*2F 4 8 4 100
UP100-2BH-55010 R2.5*D5*75L*2F 5 10 5 75
UP100-2BH-06012 R3*D6*75L*2F 6 12 6 75
UP100-2BH-55010A R2.5*D5*100L*2F 5 10 5 100
UP100-2BH-06012A R3*D6*100L*2F 6 12 6 100
UP100-2BH-06012B R3*D6*150L*2F 6 12 6 150
UP100-2BH-08016 R4*D8*75L*2F 8 16 8 75
UP100-2BH-08016A R4*D8*100L*2F 8 16 8 100
UP100-2BH-08016B R4*D8*150L*2F 8 16 8 150
UP100-2BH-10020 R5*D10*100L*2F 10 20 10 100
UP100-2BH-10020A R5*D10*150L*2F 10 20 10 150
UP100-2BH-12024 R6*D12*100L*2F 12 24 12 100
UP100-2BH-12024A R6*D12*150L*2F 12 24 12 150
UP100-2BH-14028 R7*D14*150L*2F 14 28 14 150
UP100-2BH-16032 R8*D16*150L*2F 16 32 16 150
UP100-2BH-18036 R9*D18*150L*2F 18 36 18 150
UP100-2BH-20040 R10*D20*150L*2F 20 40 20 150
UP100-2BH-08016C R4*D8*200L*2F 8 16 8 200
UP100-2BH-10020B R5*D10*200L*2F 10 20 10 200
UP100-2BH-12024B R6*D12*200L*2F 12 24 12 200
UP100-2BH-16032A R8*D16*200L*2F 16 32 16 200
UP100-2BH-20040A R10*D20*200L*2F 20 40 20 200

Workpiece Material Applicability

Material Group Workpiece Material Chart Indication
P Carbon steel, < HRC35 Very suitable
M Alloy steel, < HRC48 Very suitable
K Cast iron Suitable
N Aluminum alloy, copper alloy, graphite / composite material Not indicated in supplied chart
S Heat-resistant alloy Not indicated in supplied chart
H Hardened steel, HRC48-55 / HRC55-62 Not indicated in supplied chart

ZANHO UP100 Series R-Type Milling Solutions

Please select the appropriate order number according to the required R size, shank diameter and overall length.
