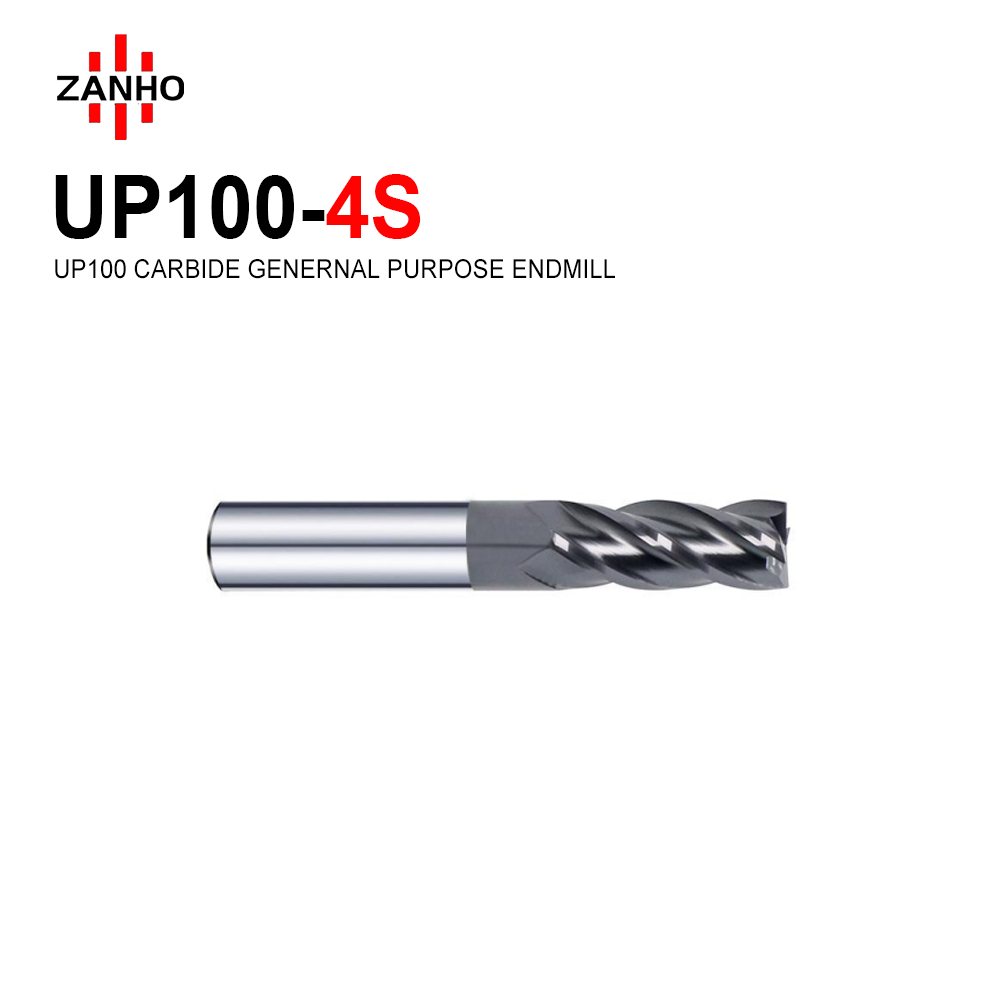

UP100-4S-SQUARE

  • Type: 4-Flute Square End Mill for versatile, general-purpose applications.
  • Coating: AlCrN Coating for improved wear resistance and tool life.
  • Helix Angle: 35° Helix optimized for stable cutting and chip removal.
  • Hardness: Best for materials up to 45 HRC (Carbon Steel, Alloy Steel, Cast Iron).
  • Versatility: Suitable for side milling, slotting, and roughing across various materials.
Categories:
Learn More
Download PDF
Description
  • Type: 4-Flute Square End Mill for versatile, general-purpose applications.
  • Coating: AlCrN Coating for improved wear resistance and tool life.
  • Helix Angle: 35° Helix optimized for stable cutting and chip removal.
  • Hardness: Best for materials up to 45 HRC (Carbon Steel, Alloy Steel, Cast Iron).
  • Versatility: Suitable for side milling, slotting, and roughing across various materials.

订货号
Order Number		 规格
Specification		 刃径
D		 刃长
L1		 柄径
D1		 总长
L
UP100-4SH-01004 D1*D4*75L*4F 1 4 4 75
UP100-4SH-01506 D1.5*D4*75L*4F 1.5 6 4 75
UP100-4SH-02008 D2*D4*75L*4F 2 8 4 75
UP100-4SH-02510 D2.5*D4*75L*4F 2.5 10 4 75
UP100-4SH-03012 D3*D3*75L*4F 3 12 3 75
UP100-4SH-33012 D3*D3*75L*4F 3 12 3 75
UP100-4SH-03015 D3*D3*100L*4F 3 15 3 100
UP100-4SH-04016 D4*D4*75L*4F 4 16 4 75
UP100-4SH-04020 D4*D4*100L*4F 4 20 4 100
UP100-4SH-55020 D5*D5*75L*4F 5 20 5 75
UP100-4SH-06024 D6*D6*75L*4F 6 24 6 75
UP100-4SH-55025 D5*D5*100L*4F 5 25 5 100
UP100-4SH-06030 D6*D6*100L*4F 6 30 6 100
UP100-4SH-06040 D6*D6*150L*4F 6 40 6 150
UP100-4SH-08030 D8*D8*75L*4F 8 30 8 75
UP100-4SH-08035 D8*D8*100L*4F 8 35 8 100
UP100-4SH-08045 D8*D8*150L*4F 8 45 8 150
UP100-4SH-10040 D10*D10*100L*4F 10 40 10 100
UP100-4SH-10050 D10*D10*150L*4F 10 50 10 150
UP100-4SH-10055 D10*D10*150L*4F 10 55 10 150
UP100-4SH-12045 D12*D12*100L*4F 12 45 12 100
UP100-4SH-12050 D12*D12*150L*4F 12 50 12 150
UP100-4SH-12055 D12*D12*150L*4F 12 55 12 150
UP100-4SH-14060 D14*D14*150L*4F 14 60 14 150
UP100-4SH-16075 D16*D16*150L*4F 16 75 16 150
UP100-4SH-18075 D18*D18*150L*4F 18 75 18 150
UP100-4SH-20075 D20*D20*150L*4F 20 75 20 150
UP100-4SH-06050 D6*D6*200L*4F 6 50 6 200
UP100-4SH-08070 D8*D8*200L*4F 8 70 8 200
UP100-4SH-10080 D10*D10*200L*4F 10 80 10 200
UP100-4SH-12080 D12*D12*200L*4F 12 80 12 200
UP100-4SH-14100 D14*D14*200L*4F 14 100 14 200
UP100-4SH-16100 D16*D16*200L*4F 16 100 16 200
UP100-4SH-18100 D18*D18*200L*4F 18 100 18 200
UP100-4SH-200100 D20*D20*200L*4F 20 100 20 200
