VBGT-AK

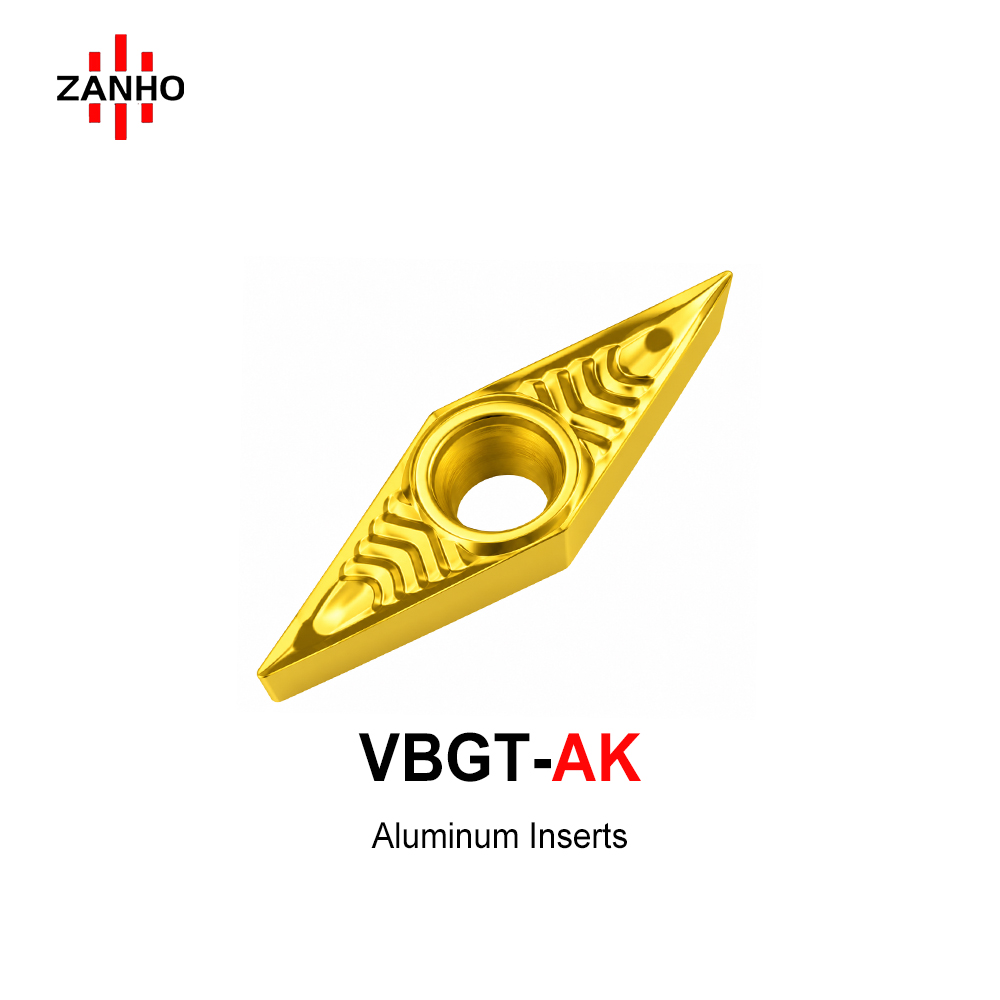

ZANHO VBGT-AK series: High-precision 35° rhombic positive inserts optimized for aluminum and non-ferrous alloys. Designed with a large positive rake geometry and a buffed mirror-polished rake face, these inserts minimize cutting resistance and prevent chip welding (BUE). The wave-style open chipbreaker ensures stable chip evacuation, making them perfect for high-speed external turning, internal boring, and complex profiling with optical-grade surface finish.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Mirror-Polished Rake Face: Significantly reduces cutting friction and effectively prevents aluminum adhesion and built-up edge (BUE).
  • Large Positive Rake Geometry: Ensures light and sharp cutting action, reducing cutting forces and minimizing tool vibration.
  • Wave-Style Open Chipbreaker: Facilitates mandatory and stable chip curling, ensuring smooth evacuation even at high feed rates.
  • Superior Profiling Capability: The 35° positive rhombic profile is ideal for intricate profiling and machining narrow contours with high clearance.
  • High Surface Integrity: Precision ground edges deliver exceptional surface brightness and maintain tight dimensional tolerances.

VBGT-AK Dimensions (ISO Standard)

Model Edge Length L (mm) Thickness S (mm) Bore D (mm) Radius R (mm)
VBGT110302-AK 11.0 3.18 4.3 0.2
VBGT110304-AK 11.0 3.18 4.3 0.4
VBGT110308-AK 11.0 3.18 4.3 0.8
VBGT160402-AK 16.5 4.76 5.16 0.2
VBGT160404-AK 16.5 4.76 5.16 0.4
VBGT160408-AK 16.5 4.76 5.16 0.8
