VBGT-ZH

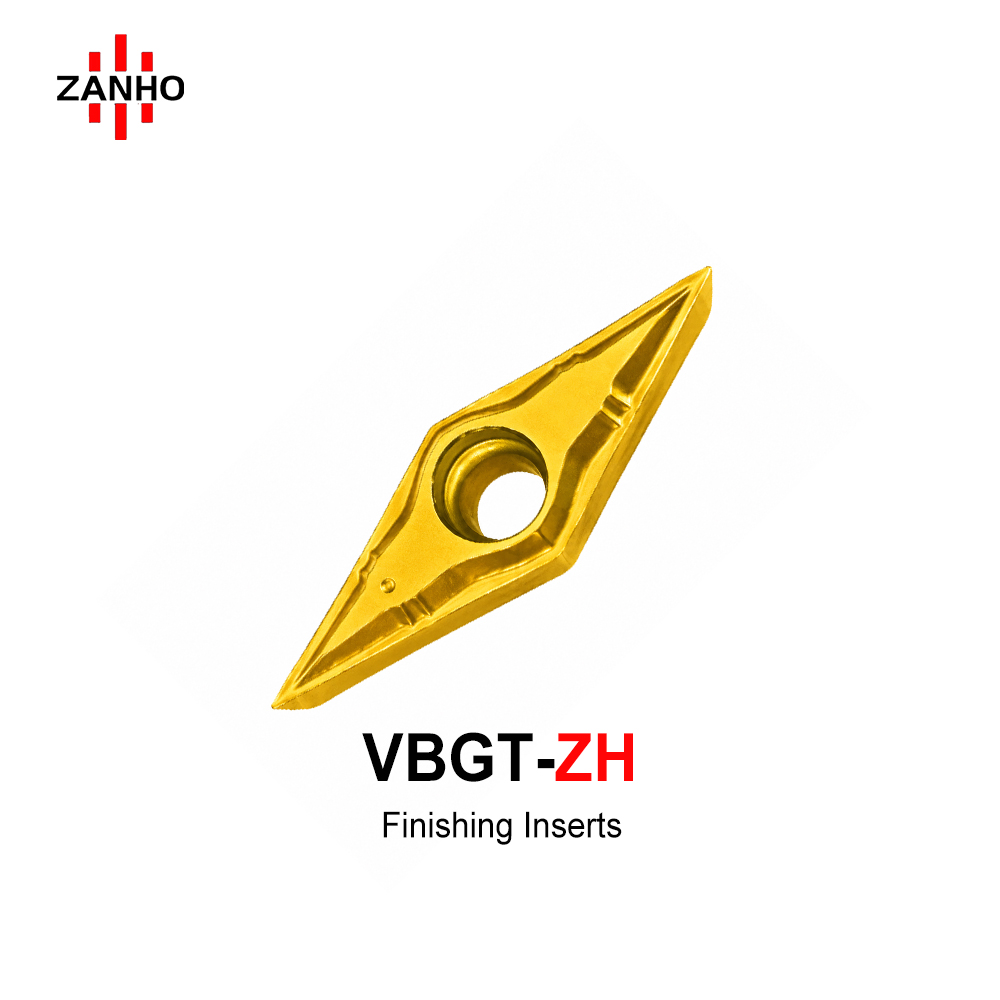

ZANHO VBGT1103-ZH series: G-class precision 35° rhombic finishing inserts optimized for all stainless steel grades. Peripheral ground for maximum accuracy, these inserts feature an ultra-sharp cutting edge and 5° clearance to deliver exceptional surface smoothness and precise profiling in CNC turning applications.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • G-Class Precision: Peripheral ground for superior dimensional accuracy and repeatability.
  • Profiling Expert: 35° rhombic shape allows for complex profiling and narrow access.
  • Stainless Steel Optimized: Ideal for Austenitic, Martensitic, and Ferritic grades.
  • Optical Finish: Sharp geometry minimizes cutting force for a high-gloss surface.

VBGT1103 Dimensions (mm)

Designation L øI.C S D1 RE
VBGT110301-ZH 11 6.35 3.18 2.8 0.1
VBGT110302-ZH 0.2

Designation Logic

V 35° Rhombic Shape
B 5° Clearance Angle
G G-Class Tolerance (High Precision Ground)
T Center hole + Single-sided chipbreaker (Positive)
