VCGT-AK

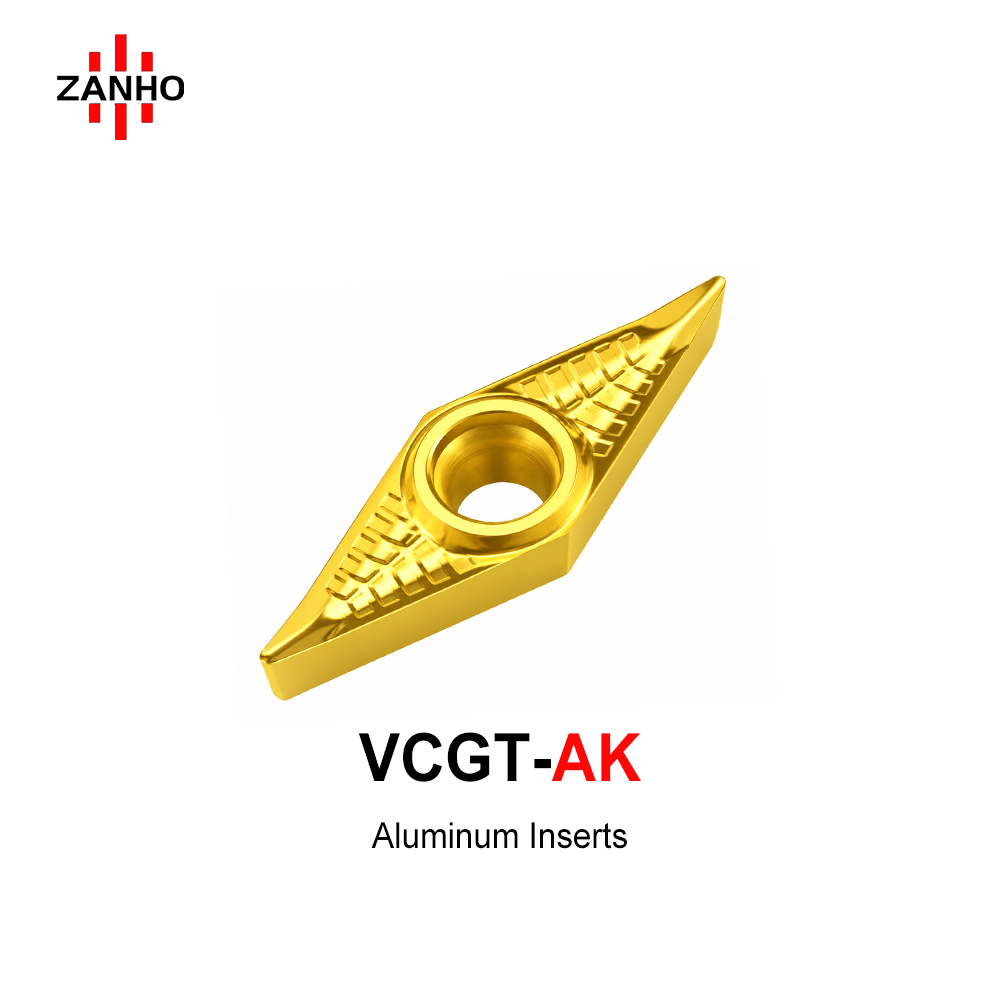

ZANHO VCGT-AK series: Ultra-sharp 35° rhombic inserts specifically engineered for high-precision machining of aluminum and non-ferrous metals. Designed with a large positive rake geometry and a mirror-polished rake face, these inserts minimize cutting resistance and prevent chip welding (BUE). The specialized segmented open chipbreaker ensures stable chip control, making them perfect for intricate profiling, tapering, and high-speed internal boring.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Mirror-Polished Rake Face: Ultra-smooth buffed surface effectively prevents chip adhesion and built-up edge (BUE) in non-ferrous materials.
  • Large Positive Rake Geometry: Provides an exceptionally sharp cutting edge, reducing cutting forces and minimizing tool vibration.
  • Segmented Open Chipbreaker: Delivers precise and stable chip curling and evacuation, even in narrow or enclosed spaces.
  • Superior Profiling Capability: The 35° sharp rhombic profile allows for machining complex contours and steep angles with high clearance.
  • High Surface Integrity: Delivers optical-grade surface finish and high dimensional accuracy on all aluminum alloys.

VCGT-AK Dimensions (ISO Standard)

Model Edge Length L (mm) Thickness S (mm) Bore D (mm) Radius R (mm)
VCGT110302-AK 11.0 3.18 4.3 0.2
VCGT110304-AK 11.0 3.18 4.3 0.4
VCGT110308-AK 11.0 3.18 4.3 0.8
VCGT160402-AK 16.5 4.76 5.16 0.2
VCGT160404-AK 16.5 4.76 5.16 0.4
VCGT160408-AK 16.5 4.76 5.16 0.8
VCGT160412-AK 16.5 4.76 5.16 1.2
VCGT160420-AK 16.5 4.76 5.16 2.0

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
