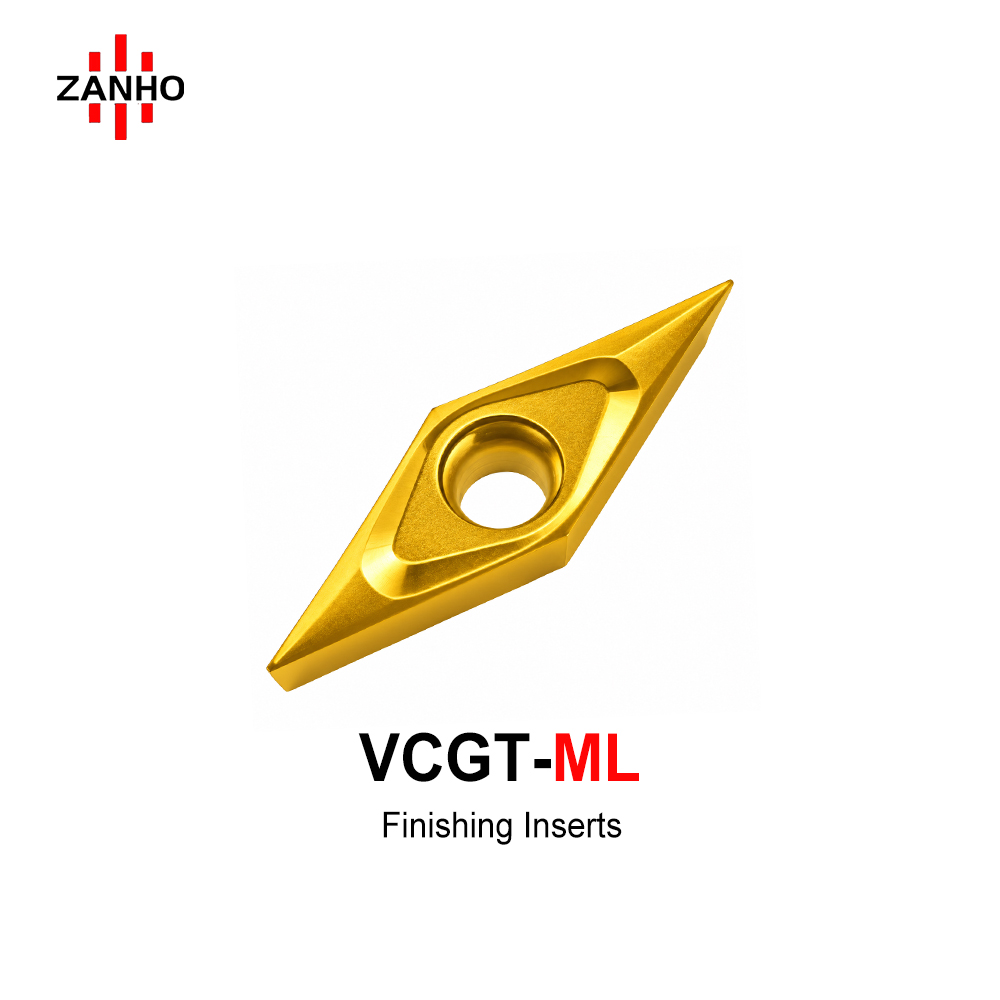

VCGT-ML

ZANHO VCGT-ML series: Advanced semi-finishing and finishing inserts featuring a dual-structure alloy substrate and ultra-fine grain α-Al2O3 coating. Engineered for exceptional edge strength and plastic deformation resistance, these inserts are optimized for high-performance machining of 200/300/400 series, Martensitic, and Duplex stainless steels (20-35 HRC).
Categories:
Learn More
Download PDF
Description

Technical Features

  • Dual-Structure Substrate: Advanced core-surface differentiated alloy for balanced toughness and hardness.
  • α-Al2O3 Coating: Ultra-fine grain coating provides superior thermal stability and wear resistance.
  • Semi-Finishing Expert: Optimized for workpiece hardness between 20 HRC and 35 HRC.
  • Material Versatility: High performance on 201, 304, 316, 420, Martensitic, and Duplex Stainless Steels.
  • Deformation Resistance: Enhanced edge geometry prevents tip collapsing under high-temperature loads.

VCGT-ML Dimensions (mm)

Designation L øI.C S D1 RE
VCGT110301-ML 11 6.35 3.18 2.8 0.1
VCGT110302-ML 0.2
VCGT110304-ML 0.4
VCGT160401-ML 16.5 9.525 4.76 3.81 0.1
VCGT160402-ML 0.2
VCGT160404-ML 0.4

Recommended Cutting Parameters

Depth of Cut (ap) Cutting Speed (Vc) Feed Rate (f)
1.0 mm 70 - 120 m/min 0.25 (0.20 - 0.30) mm/rev
