VNMG-HA

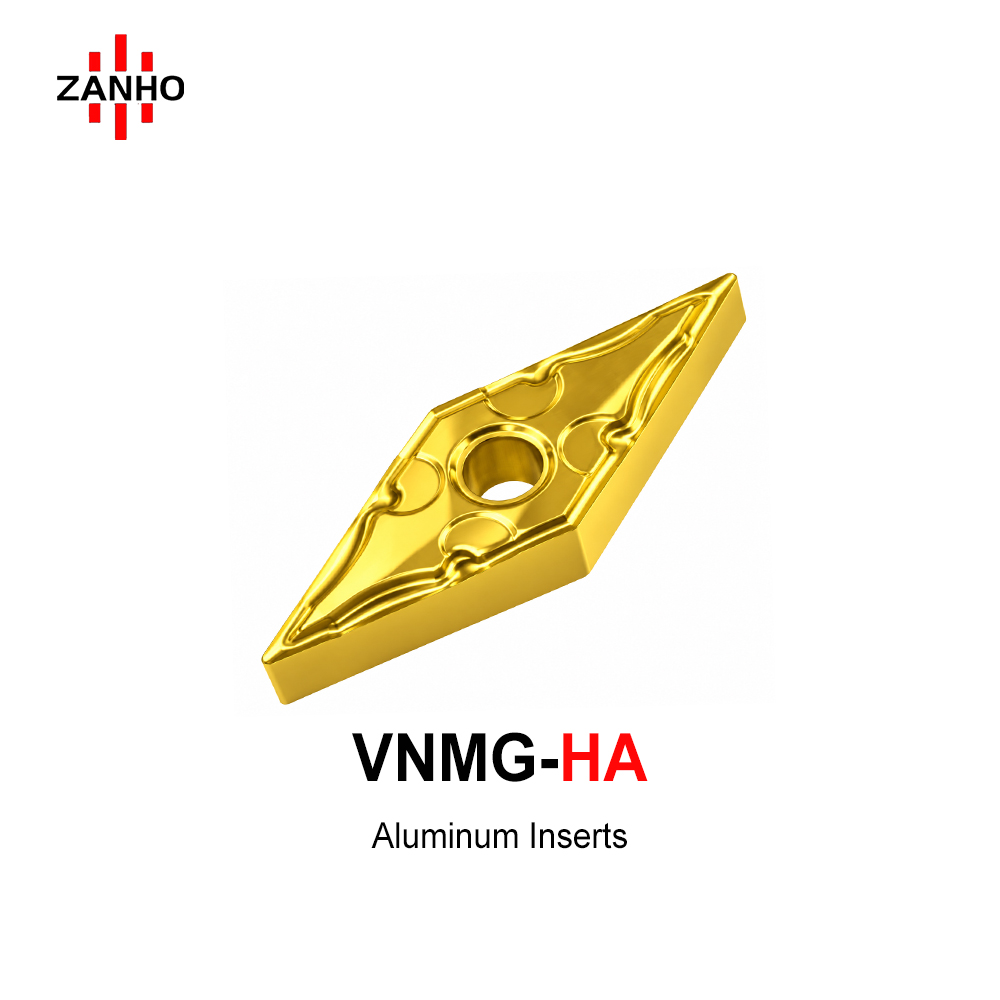

ZANHO VNMG1604-HA series: High-precision 35° rhombic inserts optimized for aluminum and non-ferrous metal machining. Featuring a large positive rake angle and a buffed mirror-polished rake face, these inserts excel in complex profiling and high-speed turning. The HA chipbreaker ensures smooth chip evacuation and prevents built-up edge (BUE), delivering superior surface finishes on all non-ferrous workpieces.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Mirror-Polished Rake Face: Reduces cutting friction and effectively prevents chip adhesion and built-up edge (BUE).
  • Large Positive Rake Geometry: Ensures light cutting action and minimizes vibration during precision operations.
  • Wave-Style Chipbreaker: Open design provides ample space for stable chip evacuation even at high feed rates.
  • High Profiling Capability: The 35° rhombic shape is ideal for complex profiling, tapering, and narrow contour machining.
  • Sharp Cutting Edge: Guarantees excellent workpiece surface quality and dimensional accuracy.

VNMG1604-HA Dimensions (ISO Standard)

Model Edge Length L (mm) Thickness S (mm) Bore D (mm) Radius R (mm)
VNMG160402-HA 16.5 4.76 5.16 0.2
VNMG160404-HA 16.5 4.76 5.16 0.4
VNMG160408-HA 16.5 4.76 5.16 0.8

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
