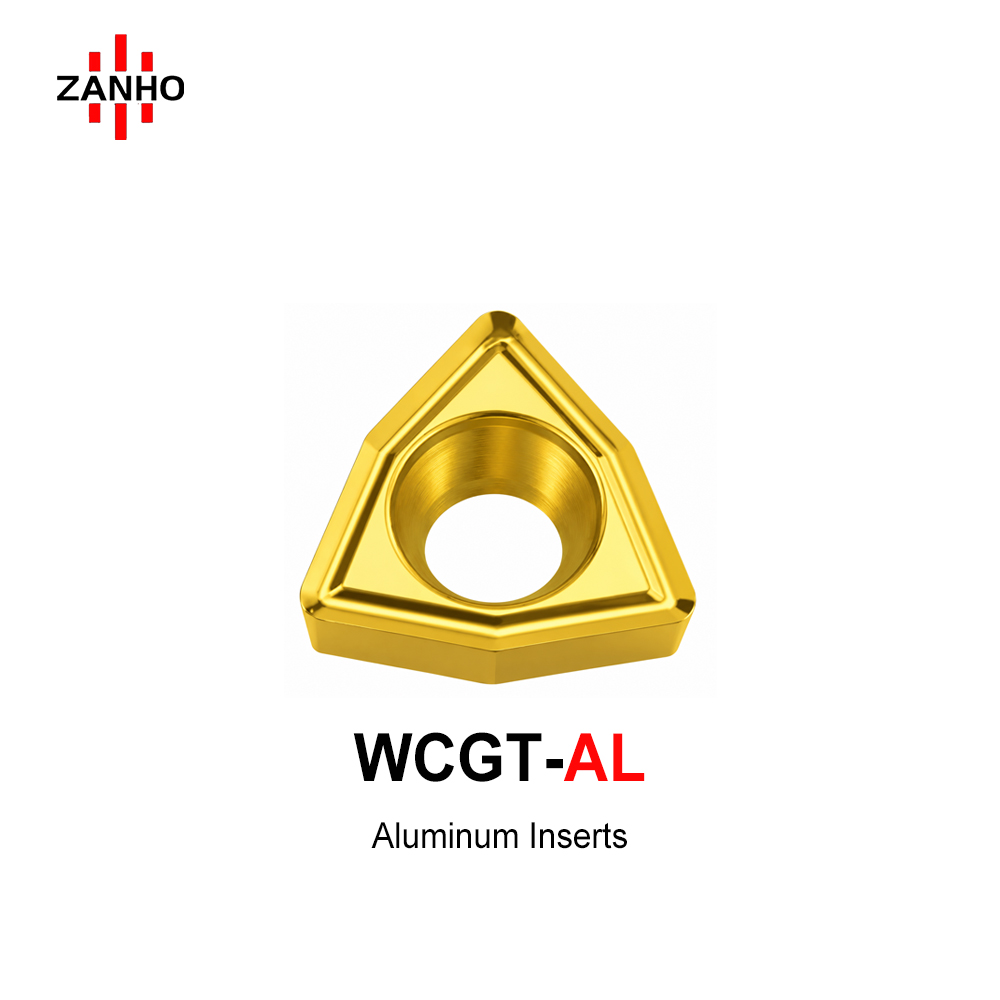

WCGT-AL

ZANHO WCGT-AL series: High-precision 80° trigon positive inserts specifically engineered for aluminum and non-ferrous alloys. Featuring a large positive rake angle and a buffed mirror-polished rake face, these inserts provide exceptionally light cutting action and superior anti-adhesion properties. Ideal for high-speed external turning, internal boring, and face machining, ensuring an optical-grade surface finish and high dimensional accuracy.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Mirror-Polished Rake Face: Significantly reduces cutting friction and prevents chip welding and built-up edge (BUE) in non-ferrous materials.
  • Large Positive Rake Geometry: Ensures sharp and light cutting action, minimizing power consumption and tool vibration.
  • Open Profile Chipbreaker: Optimized for stable chip curling and smooth evacuation even at high feed rates and finishing depths.
  • High Precision Ground Edges: Delivers exceptional surface brightness and maintains strict dimensional tolerances.
  • 80° Trigon Versatility: Combines the strength of a square insert with the profiling capabilities of a rhombic insert, ideal for external and internal work.

WCGT-AL Dimensions (ISO Standard)

Model Edge Length L (mm) Thickness S (mm) Bore D (mm) Radius R (mm)
WCGT030208-AL 9.525mm 2.38mm 4.0mm 0.8mm
WCGT040208-AL 12.7mm 2.38mm 4.5mm 0.8mm
WCGT050308-AL 15.875mm 3.18mm 5.0mm 0.8mm
WCGT06T308-AL 19.05mm 3.97mm 6.0mm 0.8mm
WCGT080412-AL 25.4mm 4.76mm 7.5mm 1.2mm
