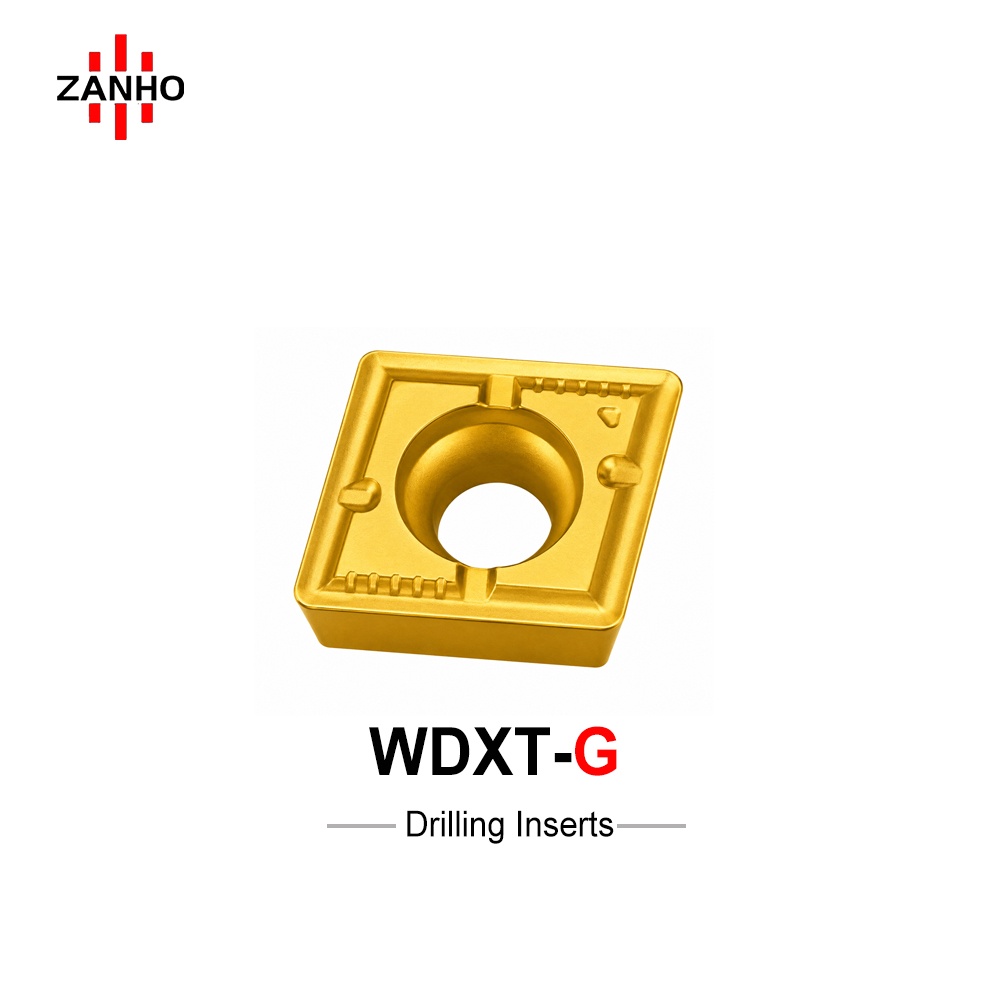

WDXT-G

ZANHO WDXT-G series is a highly versatile universal indexable drill insert featuring a unique common inner and outer edge design. A single insert geometry functions as both the central and peripheral cutter, simplifying inventory management and reducing tool costs. Engineered with a reinforced G-type chipbreaker and multiple chip-breaking ribs, it provides exceptional stability and superior chip evacuation in carbon steel, alloy steel, and stainless steel. Ideal for high-productivity drilling, counterboring, and shallow boring applications.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Universal Edge Versatility: A truly common-use design where the same insert works in both the inner (central) and outer (peripheral) positions of the U-drill body.
  • High Edge Strength (G-Type): The G-series features a reinforced chamfered edge with superior impact resistance, making it suitable for drilling workpieces with light oxide scales or rough surfaces.
  • Advanced Chipbreaking Ribs: Multiple sets of chipbreaking ribs segment wide chips into short pieces, significantly improving chip evacuation and preventing hole clogging.
  • Economic 4-Corner Usage: Each insert provides 4 effective cutting corners (2 for inner use and 2 for outer use), maximizing the tool utilization rate.
  • Multi-Functional Capabilities: Optimized not only for drilling but also for efficient counterboring and shallow-hole boring in steel and stainless materials.

Dimensional Specifications

Model W (mm) H (mm) S (mm) d (mm) R (mm) Drill DC (mm)
WDXT042004-G 4.2 4 2 2.1 0.4 13.0 - 15.0
WDXT052504-G 5.2 5 2.5 2.3 0.4 15.5 - 18.0
WDXT063006-G 6.3 6 3 2.5 0.6 18.5 - 22.5
WDXT073506-G 7.3 7 3.5 2.95 0.6 23.0 - 28.5
WDXT094008-G 9.4 9 4 3.5 0.8 29.0 - 36.0
WDXT125012-G 12.5 12 5 4.65 1.2 37.0 - 55.0

Universal Solution for CNC Drilling

ZANHO WDXT-G inserts are compatible with mainstream U-drill bodies. Contact us for bulk wholesale pricing and grade matching for steel and stainless steel.
