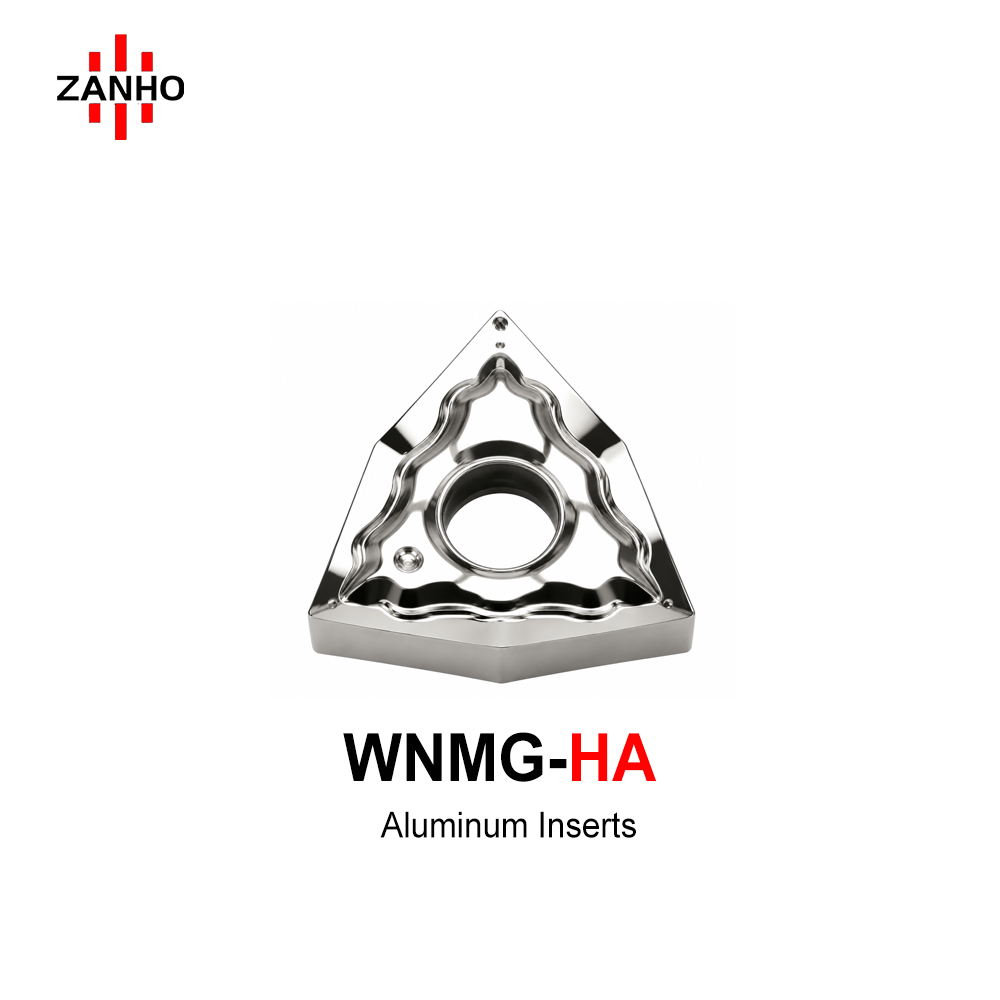

WNMG-HA

ZANHO WNMG-HA series: Premium uncoated carbide inserts with a buffed mirror rake face. Designed for medium-roughing of aluminum and non-ferrous metals, these 80° trigon inserts feature an ultra-sharp edge and superior anti-adhesion properties to prevent built-up edge (BUE), ensuring stable machining and extended tool life.
Categories:
Learn More
Download PDF
Description

Technical Features

  • Buffed Mirror Face: High-quality polished rake face significantly reduces friction and chip welding.
  • HA Chipbreaker: Engineered for medium-roughing operations with aggressive chip control in aluminum alloys.
  • Ultra-Sharp Cutting Edge: Minimizes cutting force and heat generation, ideal for non-ferrous materials.
  • Uncoated Carbide Grade: Provides the optimal balance of toughness and sharpness for aluminum machining.
  • 80° Trigon Geometry: Combines strength and versatility for various turning and profiling tasks.

WNMG-HA Dimensions (mm)

ISO Designation L I.C S D1 R
WNMG080402-HA 10.86 12.7 4.76 5.16 0.2
WNMG080404-HA 0.4
WNMG080408-HA 0.8

Matching Accessories

Tool Holder Shim Clamp Screw Wrench
PWLNR/L
WWLNR/L		 CTM510 HL1511 ML0518 L2.0, L2.5
CTM613, CTM617 HL1810, HL1814 ML0520, ML0620 L2.5, L3.0
