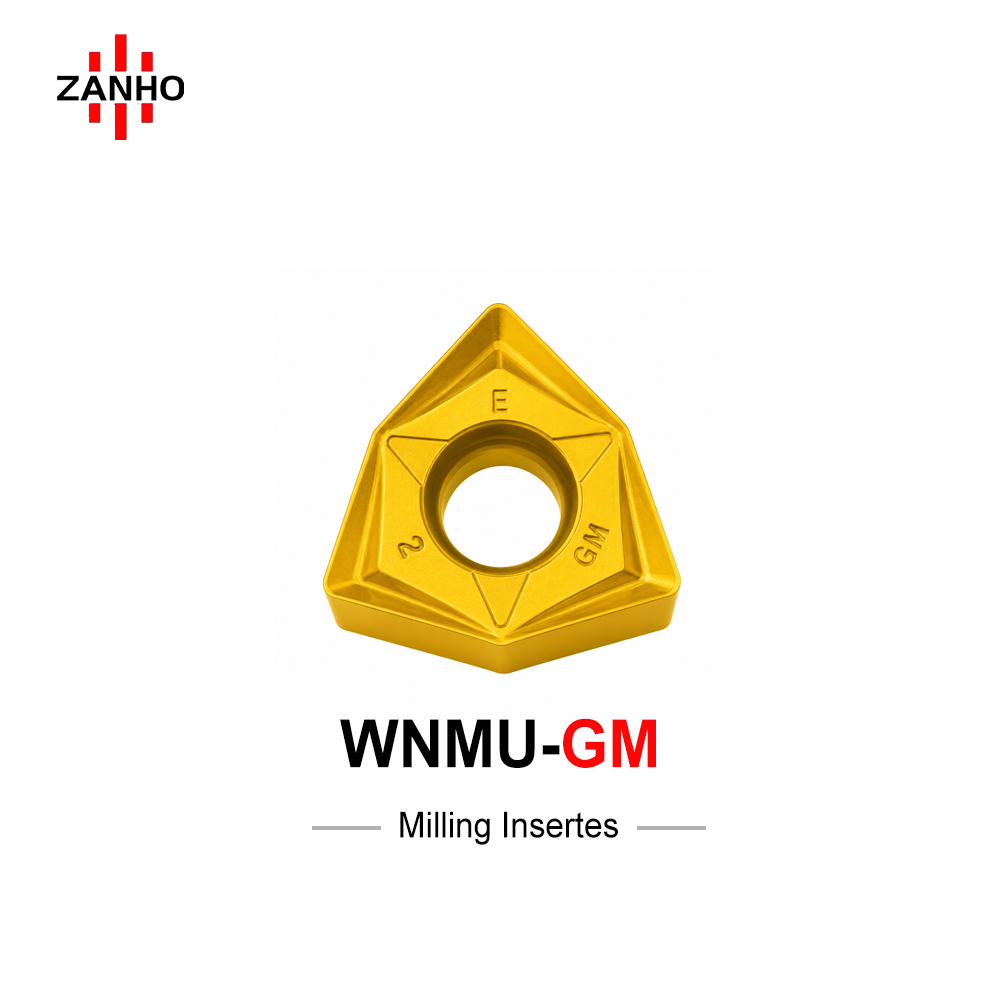

WNMU-GM

ZANHO WNMU-GM series is a high-efficiency double-sided 6-corner milling insert, 100% compatible with MFWN style face mills. Featuring a dynamic slanted cutting edge, it significantly reduces entry impact and suppresses vibration, making it ideal for long-overhang applications. The versatile GM chipbreaker covers a wide ISO range from Steel (P) and Stainless Steel (M) to Cast Iron (K) and Heat-Resistant Alloys (S). Designed for rough to semi-finish milling, it offers the perfect balance between edge strength and cost-per-edge economy.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • 6 Cutting Edges: Double-sided hexagonal structure provides 6 high-precision cutting corners, offering superior economic value for face milling operations.
  • Dynamic Slanted Edge: Reduces cutting resistance at the moment of entry, protecting the insert from chipping and improving performance in long-overhang conditions.
  • Versatile GM Chipbreaker: A balanced geometry positioned between light-cutting (SM) and heavy-duty (GH), ideal for roughing to semi-finishing applications.
  • Optimized Chip Evacuation: Enhanced chipbreaker geometry ensures reliable chip fragmentation across various feed rates and depths of cut.
  • MFWN System Compatibility: Specifically designed for 90-degree shoulder milling, face milling, and plunge milling using MFWN series tool holders.

Dimensional Specifications (mm)

Model IC (I.C) S (Thickness) D1 (Hole Dia) RE (Corner R)
WNMU040304EN-GM 6.35 3.18 3.18 0.4
WNMU040308EN-GM 6.35 3.18 3.18 0.8
WNMU060408EN-GM 9.525 4.76 4.76 0.8
WNMU080608EN-GM 14.02 6.65 6.0 0.8

Upgrade Your Milling Productivity

ZANHO WNMU series delivers exceptional 6-corner economy for MFWN systems. Contact us for direct factory wholesale pricing and technical parameter support.
