WNMU050320ZER-PM

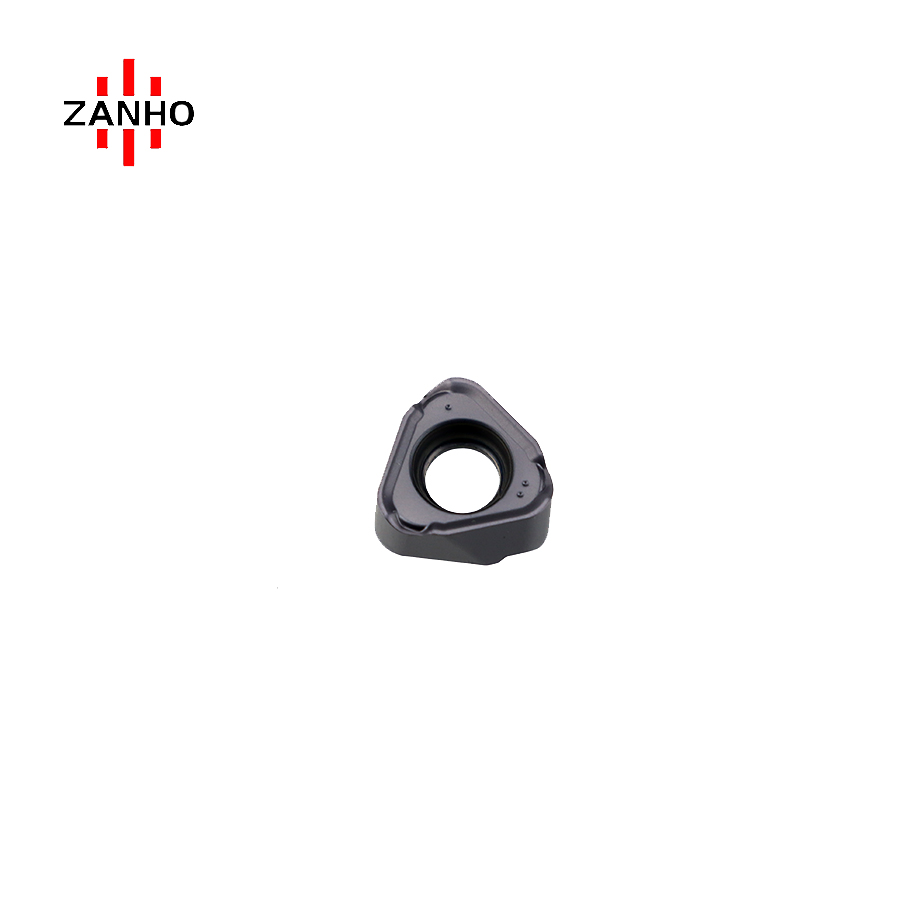

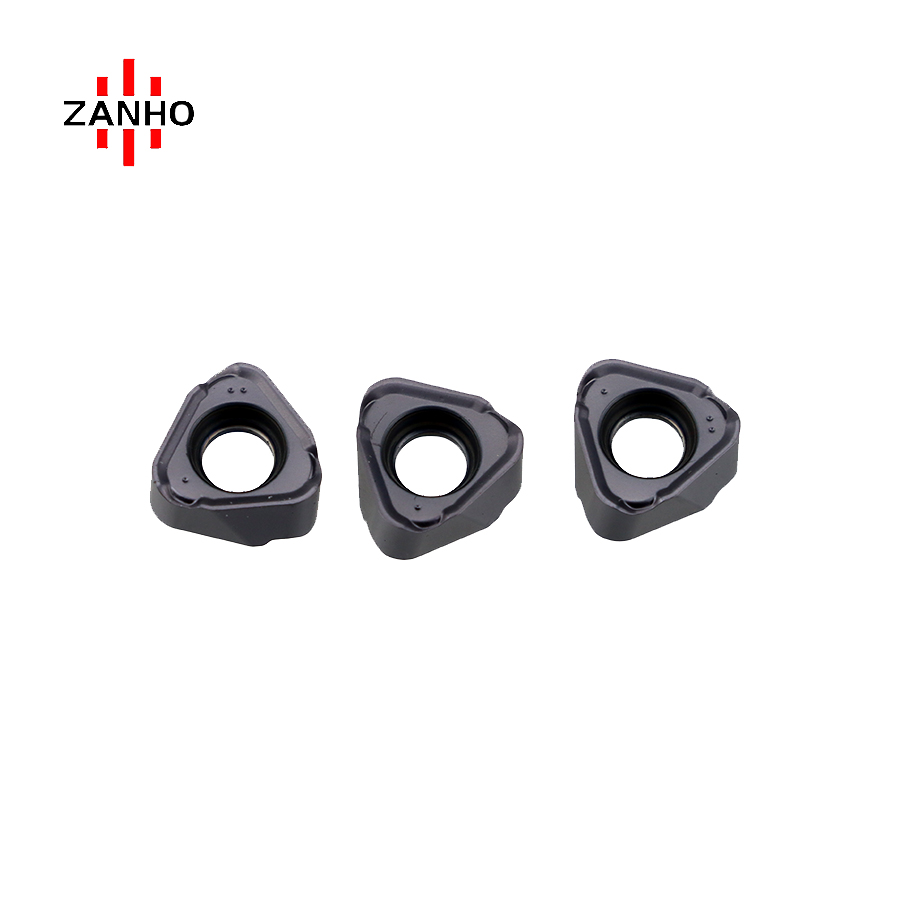

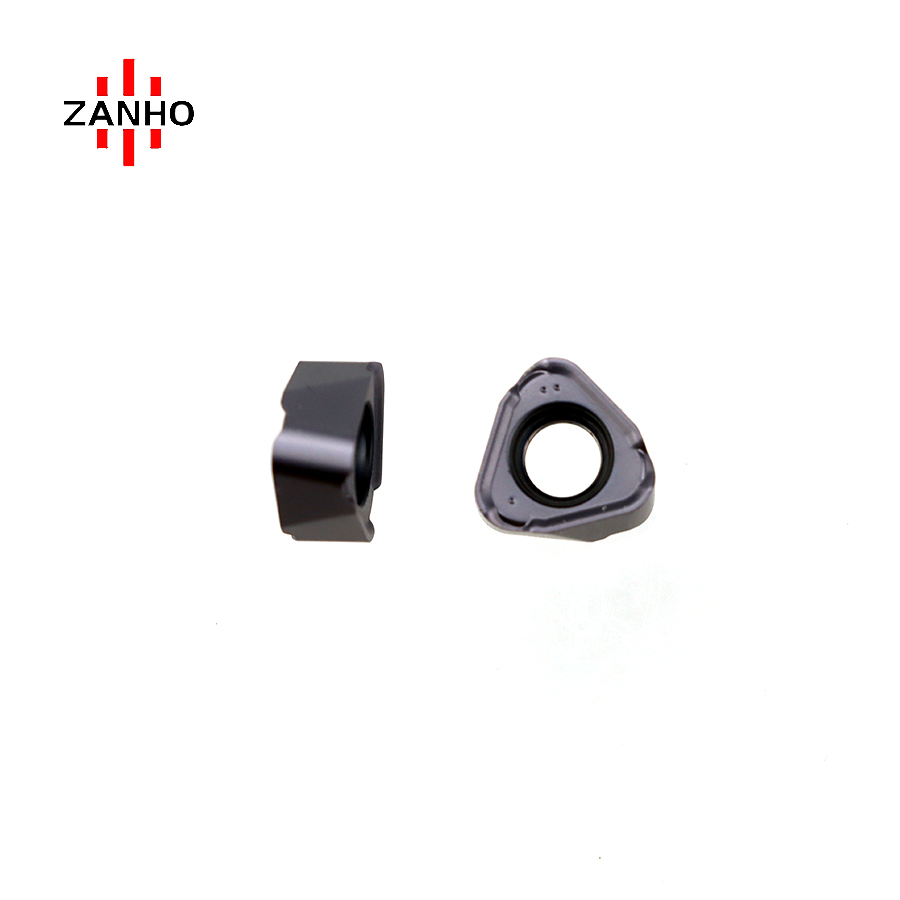

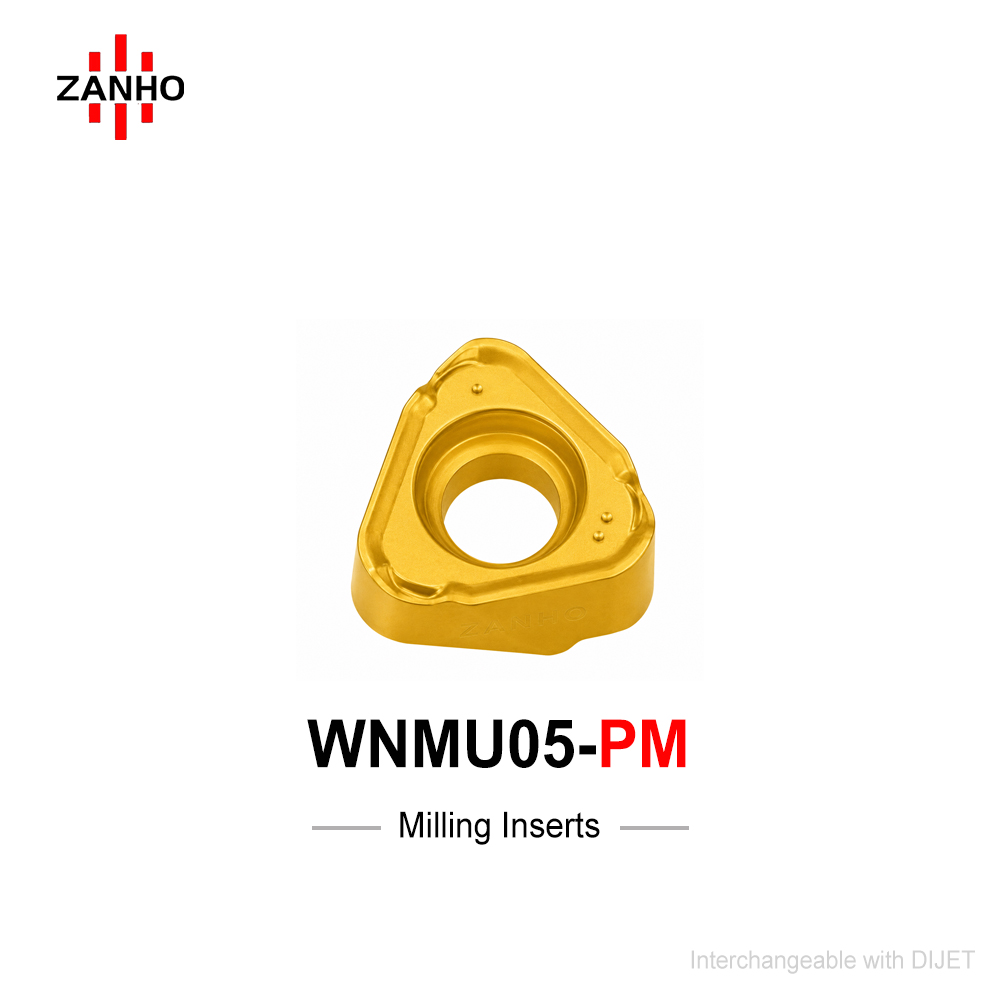

ZANHO WNMU050320ZER-PM is a high-economy double-sided 6-edge insert for high-feed roughing and square shoulder milling. Featuring a 3D low-resistance chipbreaker and reinforced negative land, it excels in mold cavities and deep pockets. Engineered for impact resistance and stable performance in interrupted cuts with a maximum 1.5mm depth of cut.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • 6-Edge Economy: Double-sided triangular design provides six usable corners, significantly lowering tool cost-per-edge.
  • Dual Functionality: Optimized for both high-feed roughing and square shoulder milling in mold cavities and deep pockets.
  • Low-Resistance 3D Geometry: The PM chipbreaker reduces cutting force and heat, ensuring stable performance on varied spindle powers.
  • High Impact Resistance: Reinforced negative land design handles scale, interrupted cuts, and unstable machining conditions with ease.
  • Versatile Machining: Supports ramping, plunging, and helical interpolation for complex 3D workpiece profiles.

Specifications (mm)

Model Thickness (s) Radius (rε) Max ap Edges
WNMU050320ZER-PM 3.18 mm R2.0 mm 1.5 mm 6 (Double-sided)

Boost Productivity in Deep Cavity Roughing

ZANHO WNMU series delivers stability and maximum economy. Contact us for bulk B2B pricing.
