WNMU070620ZER-PM

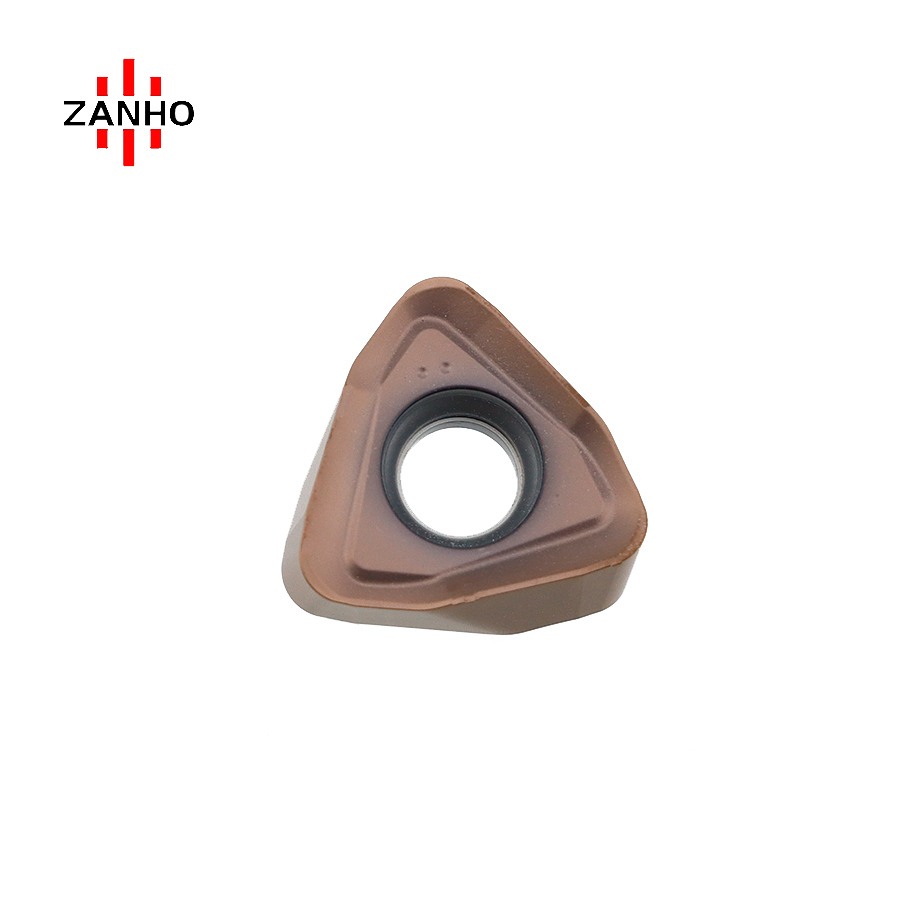

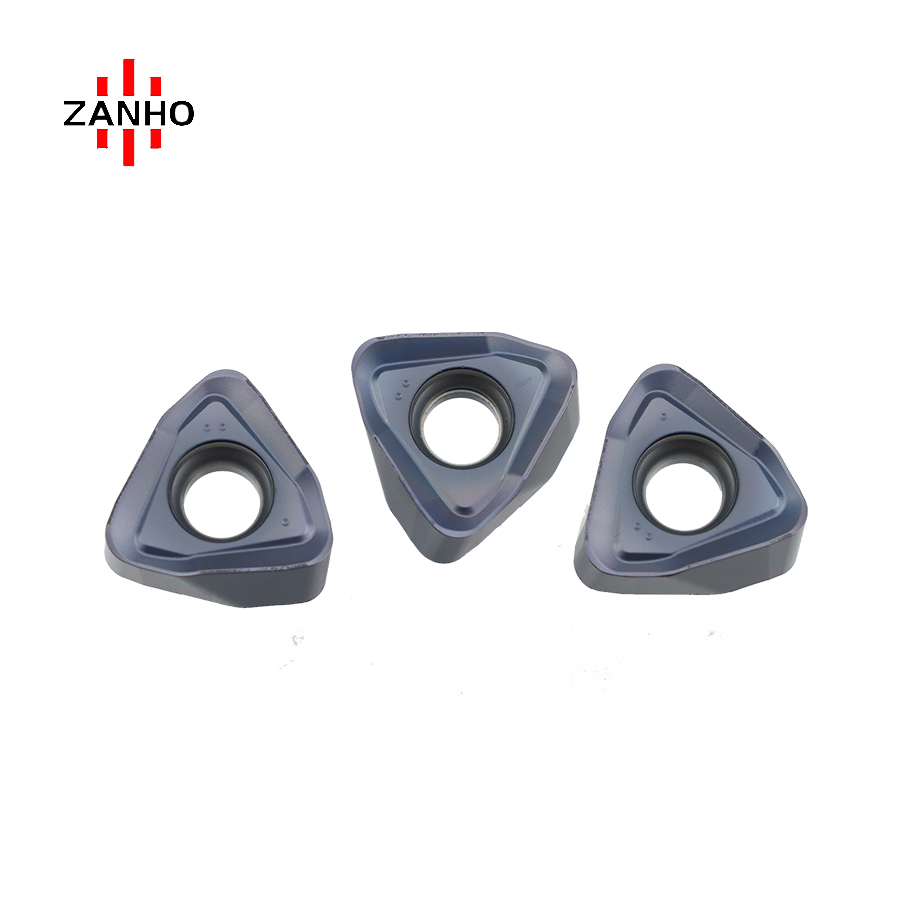

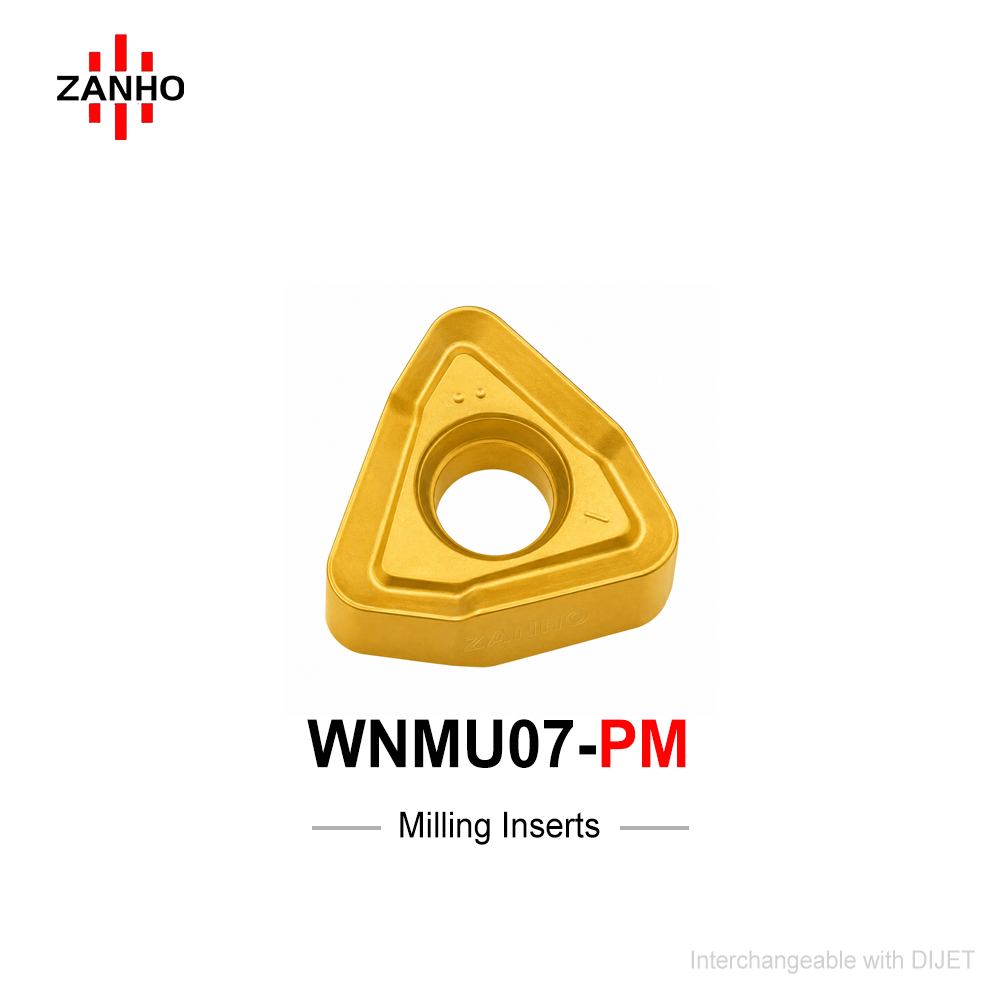

ZANHO WNMU070620ZER-PM is a large-format double-sided 6-edge insert for heavy-duty high-feed and square shoulder milling. Featuring a 3D low-resistance geometry, it maximizes metal removal in large mold cavities with a 2.0mm max ap, delivering high impact resistance and ultimate economic value per edge.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • 6-Edge Efficiency: Large-format double-sided design provides 6 effective corners, drastically lowering the cost per cutting edge.
  • Heavy-Duty Roughing: Engineered for massive metal removal in medium-to-large mold cavities, bases, and large face milling tasks.
  • Low-Resistance 3D Chipbreaker: PM geometry facilitates light cutting action, reducing spindle stress while maintaining high edge security.
  • Exceptional Impact Strength: Reinforced land design effectively handles interrupted cuts, casting scale, and rough surface conditions.
  • Advanced 3D Versatility: Supports high-feed ramping, plunging, and complex helical interpolation for heavy workpiece profiles.

Specifications (mm)

Model Thickness (s) Radius (rε) Max ap Edges
WNMU070620ZER-PM 6.35 mm R2.0 mm 2.0 mm 6 (Double-sided)

Master Large-Scale Heavy Roughing

ZANHO WNMU07 series provides high-productivity machining with maximum durability. Contact us for bulk B2B inquiry.
