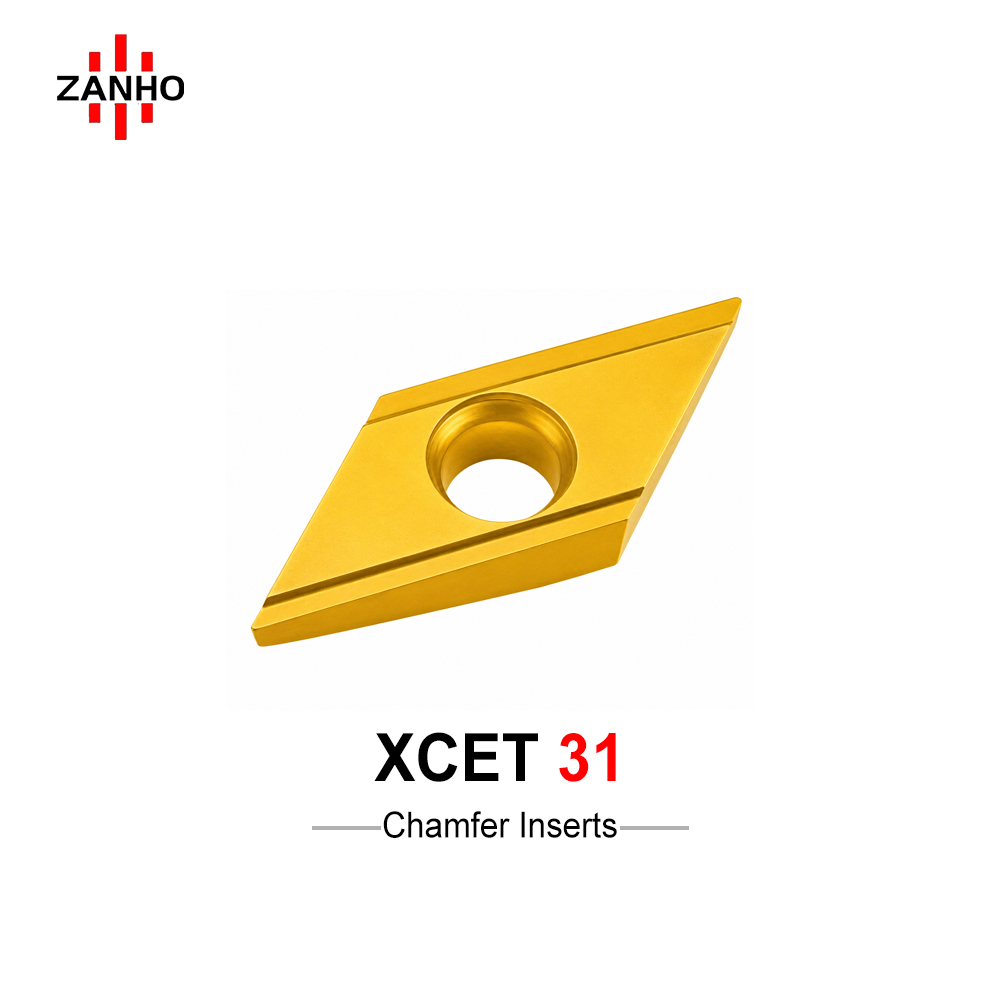

XCET310404ER

ZANHO XCET310404ER: Dovetail-style chamfering insert specifically engineered for large-angle wide chamfers and deep-hole deburring. Compatible with a versatile range of ECC tool holders (15° to 75°), providing exceptional stability and precision. Ideal for light-to-medium chamfering milling in steel, stainless steel, and cast iron components.

Categories: Chamfering Inserts

Download PDF

Technical Advantages

Multi-Purpose Chamfering: Ideal for large-angle outer edge chamfering and complex deep-hole deburring operations.
ECC Holder Compatibility: Perfectly fits 15° to 75° constant angle ECC series dovetail tool holders.
Precision Edge Stability: Engineered for light-to-medium constant angle milling with excellent dimensional consistency.

Insert Specifications (mm)

Model Type	Length (L)	I.C (øI.C)	Thickness (S)	Hole (D1)	Radius (RE)
XCET310404-ER	31	12.7	4	5.2	0.4

Compatible Tool Holder Models

ECC31005R-15°-C32-130-1T	ECC31005R-20°-C32-130-1T
ECC31005R-20°-C32-130-2T	ECC31005R-25°-C32-130-1T
ECC31005R-30°-C20-130-1T	ECC31005R-30°-C32-130-1T
ECC31005R-35°-C32-130-1T	ECC31005R-40°-C32-130-1T
ECC31005R-45°-C20-130-2T	ECC31005R-45°-C32-130-2T
ECC31005R-45°-C32-160-2T	ECC31005R-45°-C32-160-3T
ECC31005R-50°-C32-130-2T	ECC31005R-55°-C32-130-2T
ECC31005R-60°-C20-130-2T	ECC31005R-60°-C32-130-2T
ECC31005R-65°-C32-130-2T	ECC31005R-70°-C32-130-2T
ECC31005R-75°-C32-130-2T	-

Versatile Chamfering Solutions for High Efficiency

ZANHO XCET series provides industrial stability for precision deburring. Contact us for bulk inquiry and full tool set compatibility.
