XNEX-M13

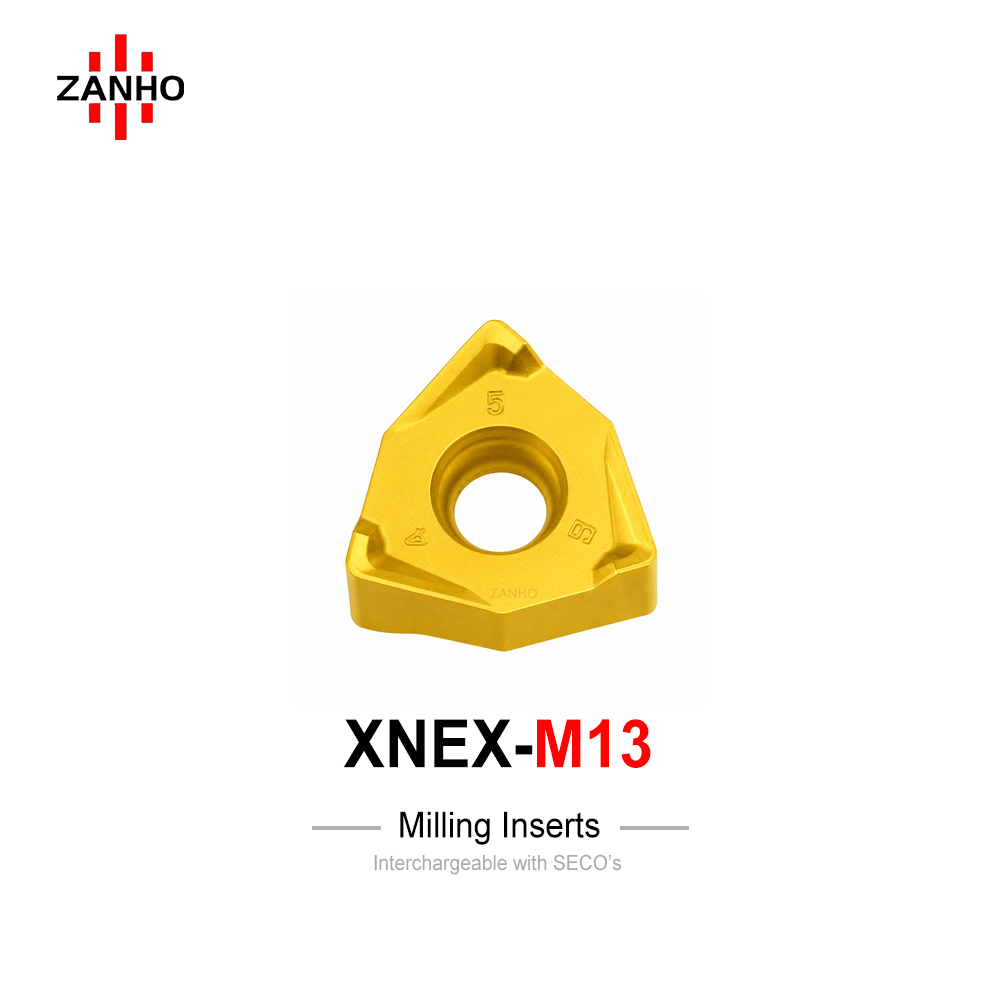

ZANHO XNEX series: Double-sided 6-edge triangular insert for 90° shoulder milling. The M13 chipbreaker balances cutting resistance with high impact strength, optimized for square shoulder, face, and step milling. Ideal for roughing and semi-finishing in carbon steel, alloy steel, and cast iron.
Categories:
Learn More
Download PDF
Description

Technical Features

  • 90° Square Shoulder: Precise geometry for vertical wall milling and face roughing with high utilization of cutting edges.
  • 6-Edge Economy: Double-sided triangular design provides 6 effective edges, significantly reducing tool cost per component.
  • M13 General-Purpose Chipbreaker: Engineered to balance low cutting resistance with high toughness against impact and oxide skin.
  • Versatile Operations: Supports square shoulder milling, face milling, ramping, and cavity roughing with stable chip curl.
  • Broad Material Suitability: Reliable performance in Carbon Steel, Alloy Steel, Mold Steel, and Cast Iron.

Technical Specifications (mm)

Model Type I.C (IC) Thickness (S) Radius (Re) Edges Max APMX Max ARMAX
XNEX040308TR-M13 9.525 3.98 0.80 6 4.0 8.0
XNEX080608TR-M13 15.875 6.35 0.80 6 8.0 13.0

High Efficiency for Precision Shoulder Milling

ZANHO XNEX series maximizes productivity in general machinery and mold processing. Contact us for OEM and bulk B2B inquiry.

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.
