XNMU-M

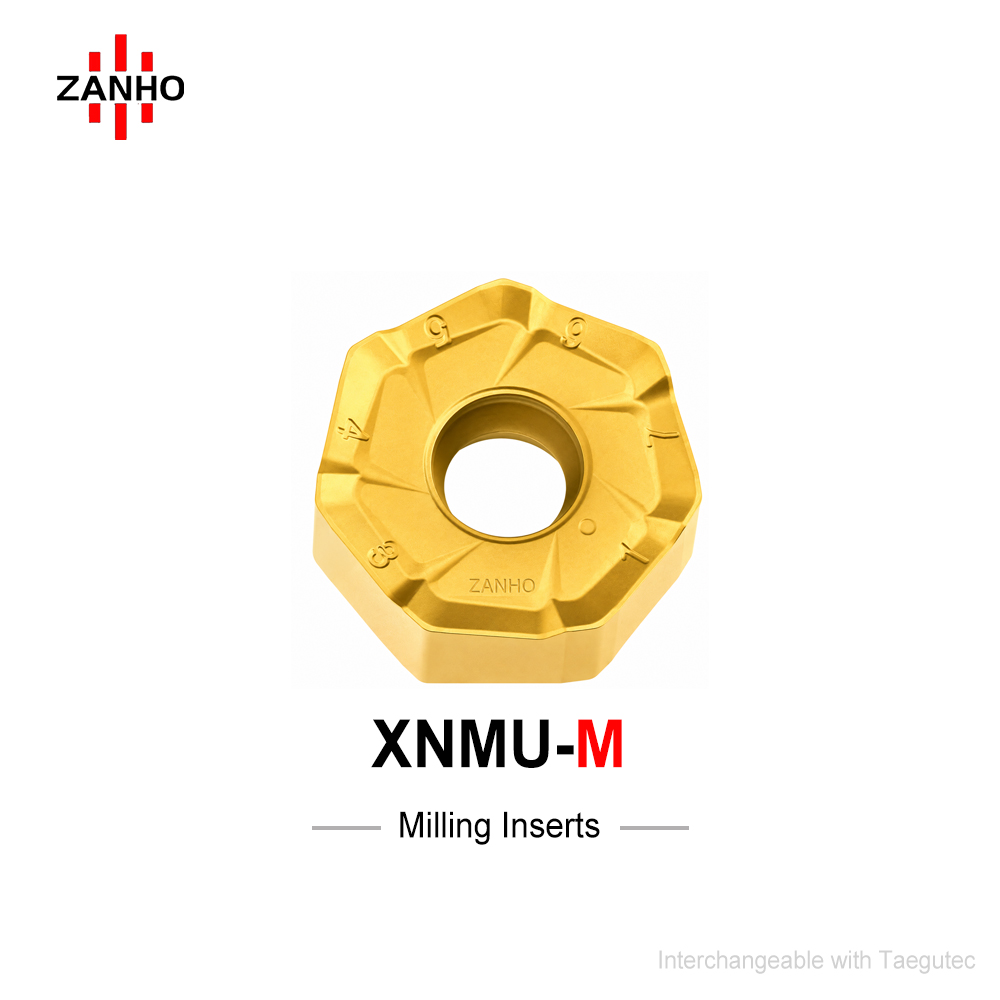

ZANHO XNMU 0906ANTR-M is a high-rigidity face milling insert featuring an industrial-leading double-sided 14-edge structure for ultimate economy. Designed for stable large-allowance roughing to semi-finishing, it offers a 4.5mm max depth of cut and an integrated 1.52mm wiper edge, ensuring superior surface quality and process security in Steel and Cast Iron applications.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Extreme 14-Edge Economy: Unique double-sided heptagonal geometry providing 14 high-precision cutting corners per insert, delivering the lowest total tool cost for high-volume face milling.
  • Robust Thick-Body Rigidity: The 7.34mm thick substrate provides excellent structural strength and thermal resistance, handling aggressive feed rates and heavy depths of cut without edge failure.
  • Precision 1.52mm Wiper: Features an integrated wiper flat (Bs) that maintains exceptional workpiece surface integrity and floor flatness even during heavy roughing operations.
  • Stable Metal Removal (Max 4.5mm Ap): Optimized for large-allowance face milling, achieving high metal removal rates with reduced radial forces and vibration suppression.
  • Universal Process Versatility: Perfectly covers roughing to semi-finishing tasks, supporting diverse milling strategies including face milling, chamfering, and high-speed ramping.

Insert Dimensional Specifications (mm)

Model L (Length) I.C (Inscribed) R (Radius) S (Thickness) d (Hole Dia) Bs (Wiper) t (mm) Edges
XNMU 0906ANTR-M 19.27 18.5 1.0 7.34 6.24 1.52 6.75 14

Maximize Economy with 14 Cutting Edges

ZANHO XNMU series delivers unmatched cost-per-edge for industrial face milling. Contact us for bulk B2B pricing and global distribution opportunities.
