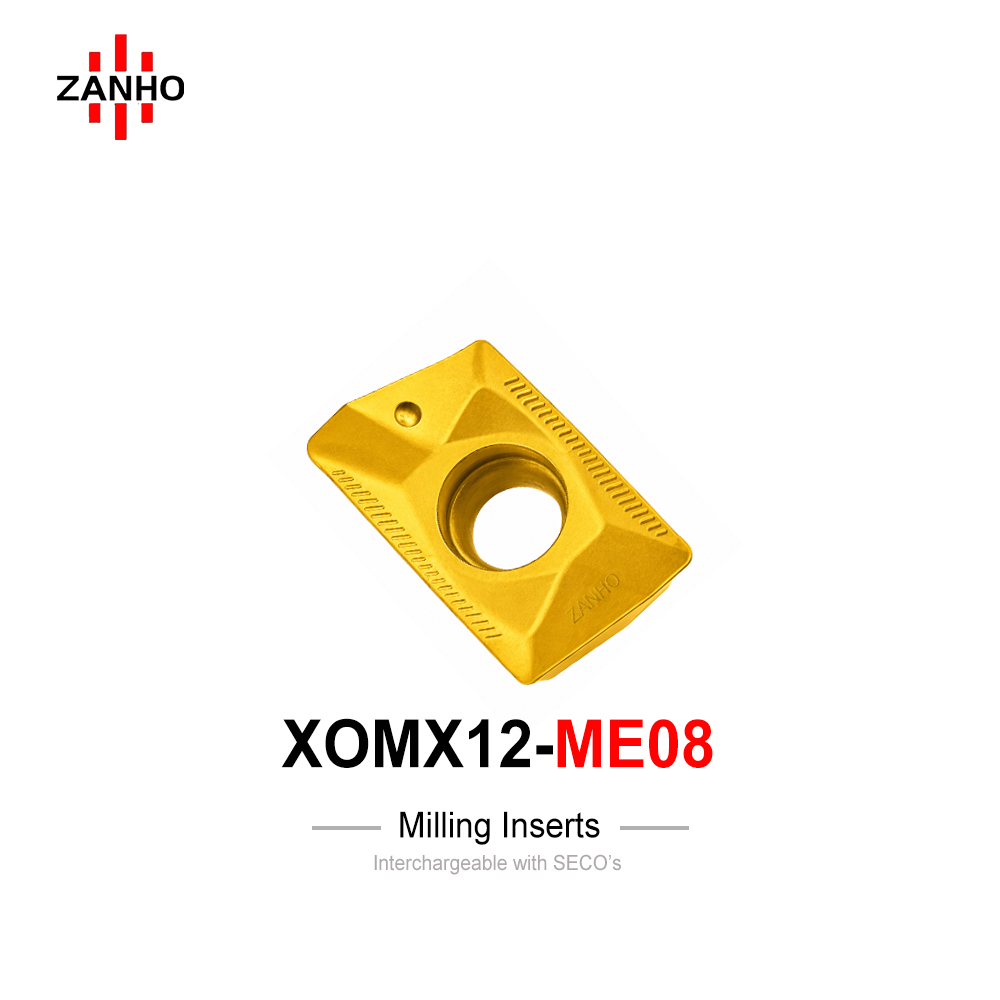

XOMX120408/20/40

ZANHO XOMX1204 series: Single-sided 90° shoulder milling insert with reinforced cutting ribs. Positive rake angle reduces cutting resistance while maintaining high durability against interrupted cuts and oxide skin. Specially optimized for large R-corner roughing in molds, roughing, and semi-finishing in steel and cast iron.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Reinforced Cutting Edge: Features integral reinforcing ribs to maximize resistance against chipping and edge breakdown during heavy-duty operations.
  • Positive Rake Geometry: High-performance positive rake design reduces cutting forces and heat generation, ensuring stable machining.
  • Mold R-Corner Optimization: Specifically engineered for roughing large R-corners in mold and die components with high material removal rates.
  • Interrupted Cut Stability: Robust substrate allows for reliable performance through oxide skin, scale, and severe interrupted cutting conditions.
  • Multi-Material Reliability: Excelled performance across Carbon Steel, Alloy Steel, Mold Steel, and Cast Iron.

Technical Specifications (mm)

Model Type Length (I) I.C Thickness (S) Hole (D1) Radius (RE)
XOMX120408TR-ME08 13.7 8.2 5.07 3.9 0.8
XOMX120420TR-ME08 13.7 8.2 5.07 3.9 2.0
XOMX120440TR-ME08 13.7 8.2 5.07 3.9 4.0

Heavy-Duty Reliability for Mold & Die Roughing

ZANHO XOMX1204 series provides industrial strength for high-efficiency CNC operations. Contact us for bulk B2B inquiry and holder specifications.
