XSEQ12 Series

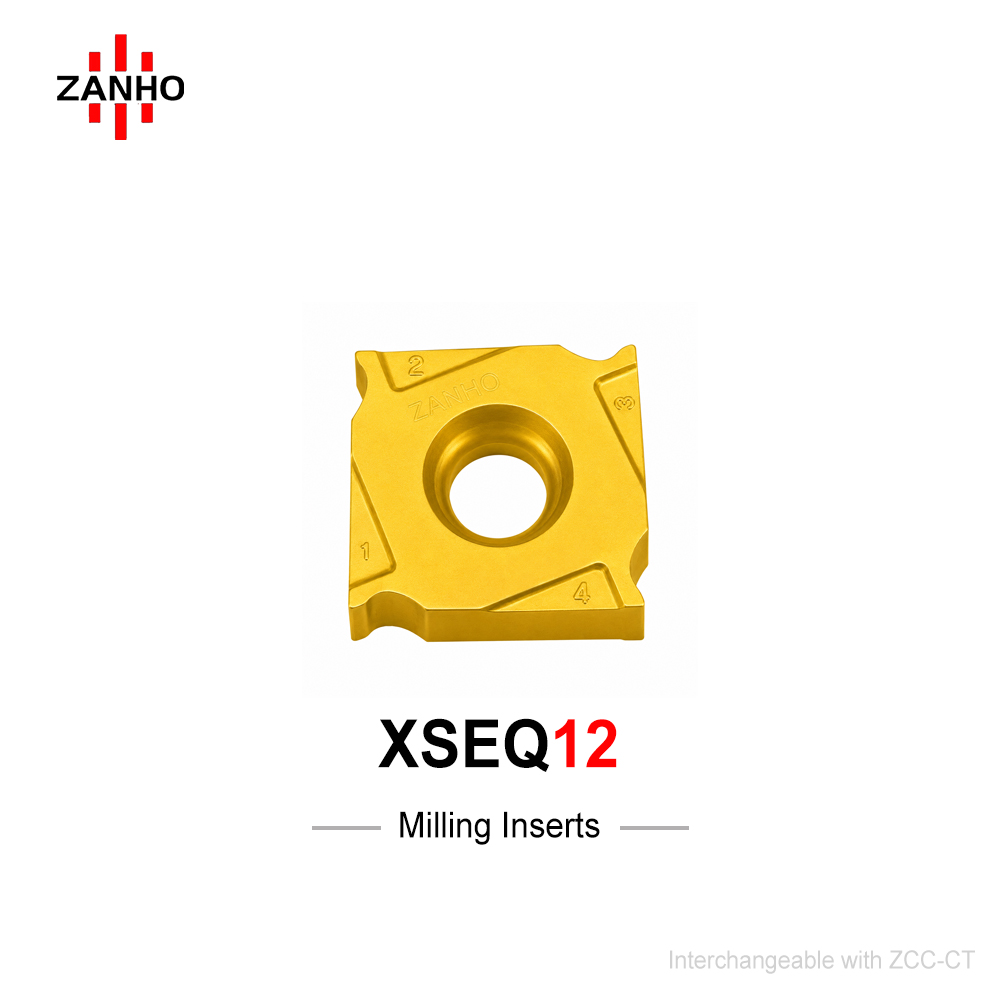

ZANHO XSEQ12 series is an ultra-economical double-sided 8-edge insert designed for high-precision slot and side milling. Featuring effective cutting edges on both sides and faces, it ensures controllable slot widths and superior process stability. The reinforced edge design is optimized for interrupted cutting and smooth chip evacuation across various slot widths (4mm to 8mm).
Categories:
Learn More
Download PDF
Description

Core Design Features

  • 8-Edge Double-Sided Economy: Square structure provides 8 effective cutting edges, significantly reducing the cost per component in high-volume milling.
  • Precise Slot Width Control: Both side and face edges are active, ensuring dimensional accuracy in slotting and side-and-face milling operations.
  • Optimized Geometry: Curved chipbreaker reduces cutting resistance and optimizes chip curling, preventing blockages in deep slots.
  • Interrupted Cut Reliability: Reinforced side edges provide high impact resistance, making the insert suitable for demanding interrupted cutting conditions.
  • Modular Thickness: Multiple thickness specifications allow a single cutter body to adapt to various slot widths, reducing tool inventory.

Specifications (mm)

Model Length (L) I.C (IC) Thickness (S) Hole (Ød) Target Slot Width
XSEQ1202 12.7 12.7 2.3 5.0 4mm
XSEQ12T3 12.7 12.7 3.0 5.0 6mm
XSEQ1204 12.7 12.7 3.6 5.0 7mm
XSEQ12T4 12.7 12.7 4.0 5.0 8mm

Cost-Effective Multi-Slot Solutions

ZANHO XSEQ series provides flexible and durable milling for various slot dimensions. Inquire for cutter body compatibility and B2B volume pricing.
