YPHW1003ZER-1.5

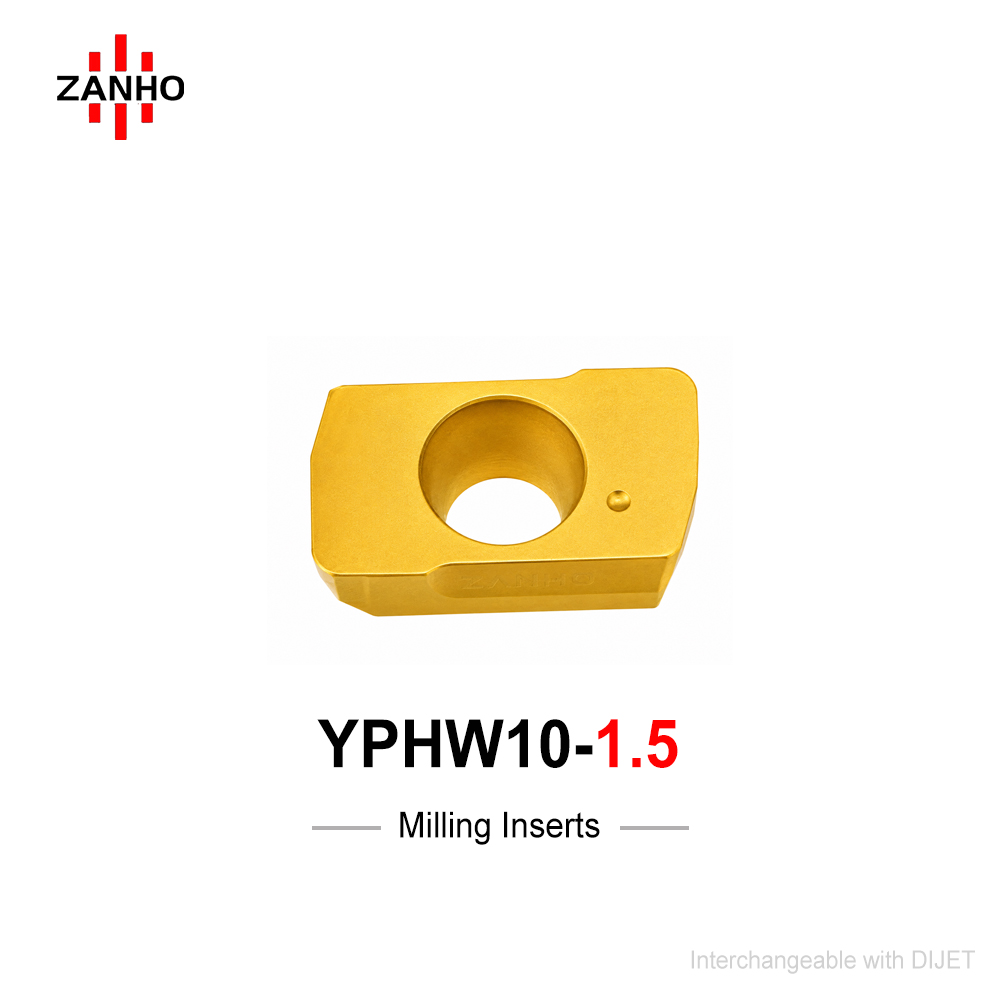

ZANHO YPHW1003ZER-1.5 is a high-performance QM-MAX series insert for small-diameter high-feed milling. Optimized for deep cavities and long overhangs, it delivers high efficiency under low cutting loads with a 1.0mm max ap. The 3D geometry ensures excellent chip evacuation and edge security in narrow spaces.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • Deep Cavity Specialist: Small-scale design tailored for narrow pockets and deep cavity machining where space is limited.
  • Low Cutting Load: Ideal for low-power machines and long overhang setups, minimizing vibration and spindle stress.
  • 3D Chipbreaker Geometry: Advanced -ZER geometry optimizes chip evacuation and reduces cutting resistance for smoother operation.
  • High Edge Security: Negative land design enhances the cutting edge's impact resistance against interruptions.
  • Precision Efficiency: Achieves high metal removal rates (HFR) in small components with precise 1.0mm depth control.

Specifications (mm)

Model Thickness (s) Radius (r) Max ap Edges
YPHW1003ZER-1.5 3.18 mm R1.5 mm 1.0 mm 2 (Single-sided)

Precision High-Feed for Small Workpieces

ZANHO QM-MAX series is the benchmark for small-scale roughing. Contact us for technical support and volume discounts.
