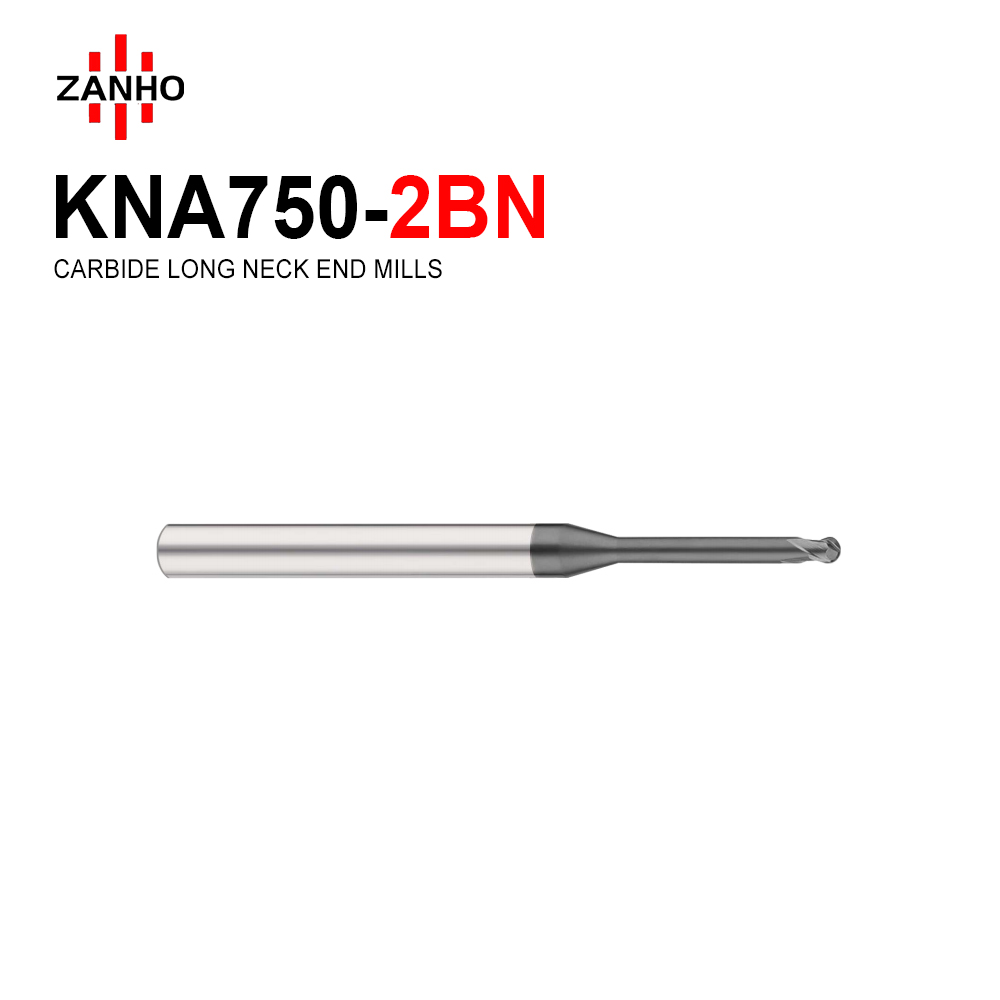

KNA750-2BN

  • Elite Deep Reach Specialist: Specifically engineered with a Long Neck design for ultra-precise Deep-Pocket 3D Profiling where standard tools cannot perform.
  • Enhanced Precision: Precision-ground micro radii (R0.5 to R1.5) and optimized geometry ensure stable, vibration-free contouring on complex curved surfaces.
  • Interference-Free Machining: Relieved neck diameter provides necessary clearance for deep cavity work without tool interference or collision risks.
  • Extended Shank Options: Available in standard 50mm and 75mm Extended Shank (2BNH) versions to meet extreme depth-of-cut requirements.
Categories:
Learn More
Download PDF
Description
  • Elite Deep Reach Specialist: Specifically engineered with a Long Neck design for ultra-precise Deep-Pocket 3D Profiling where standard tools cannot perform.
  • Enhanced Precision: Precision-ground micro radii (R0.5 to R1.5) and optimized geometry ensure stable, vibration-free contouring on complex curved surfaces.
  • Interference-Free Machining: Relieved neck diameter provides necessary clearance for deep cavity work without tool interference or collision risks.
  • Extended Shank Options: Available in standard 50mm and 75mm Extended Shank (2BNH) versions to meet extreme depth-of-cut requirements.

Order Number Specification D L2 D1 L
KNA750-2BN-01006 R0.5*6L*D4*50L*2F 1 6 4 50
KNA750-2BN-01008 R0.5*8L*D4*50L*2F 1 8 4 50
KNA750-2BN-01010 R0.5*10L*D4*50L*2F 1 10 4 50
KNA750-2BN-01012 R0.5*12L*D4*50L*2F 1 12 4 50
KNA750-2BN-01015 R0.5*15L*D4*50L*2F 1 15 4 50
KNA750-2BN-01020 R0.5*20L*D4*50L*2F 1 20 4 50
KNA750-2BN-01506 R0.75*6L*D4*50L*2F 1.5 6 4 50
KNA750-2BN-01508 R0.75*8L*D4*50L*2F 1.5 8 4 50
KNA750-2BN-01510 R0.75*10L*D4*50L*2F 1.5 10 4 50
KNA750-2BN-01512 R0.75*12L*D4*50L*2F 1.5 12 4 50
KNA750-2BN-01515 R0.75*15L*D4*50L*2F 1.5 15 4 50
KNA750-2BN-01520 R0.75*20L*D4*50L*2F 1.5 20 4 50
KNA750-2BN-02006 R1*6L*D4*50L*2F 2 6 4 50
KNA750-2BN-02008 R1*8L*D4*50L*2F 2 8 4 50
KNA750-2BN-02010 R1*10L*D4*50L*2F 2 10 4 50
KNA750-2BN-02012 R1*12L*D4*50L*2F 2 12 4 50
KNA750-2BN-02015 R1*15L*D4*50L*2F 2 15 4 50
KNA750-2BN-02020 R1*20L*D4*50L*2F 2 20 4 50
KNA750-2BN-02025 R1*25L*D4*50L*2F 2 25 4 50
KNA750-2BN-02510 R1.25*10L*D4*50L*2F 2.5 10 4 50
KNA750-2BN-02512 R1.25*12L*D4*50L*2F 2.5 12 4 50
KNA750-2BN-02515 R1.25*15L*D4*50L*2F 2.5 15 4 50
KNA750-2BN-02520 R1.25*20L*D4*50L*2F 2.5 20 4 50
KNA750-2BN-03012 R1.5*12L*D4*50L*2F 3 12 4 50
KNA750-2BN-03015 R1.5*15L*D4*50L*2F 3 15 4 50
KNA750-2BN-03020 R1.5*20L*D4*50L*2F 3 20 4 50
KNA750-2BN-03025 R1.5*25L*D4*50L*2F 3 25 4 50
KNA750-2BN-62010 R1*10L*D6*50L*2F 2 10 6 50
KNA750-2BN-62012 R1*12L*D6*50L*2F 2 12 6 50
KNA750-2BN-62016 R1*16L*D6*50L*2F 2 16 6 50
KNA750-2BN-62020 R1*20L*D6*50L*2F 2 20 6 50
KNA750-2BN-63010 R1.5*10L*D6*50L*2F 3 10 6 50
KNA750-2BN-63012 R1.5*12L*D6*50L*2F 3 12 6 50
KNA750-2BN-63016 R1.5*16L*D6*50L*2F 3 16 6 50
KNA750-2BN-63020 R1.5*20L*D6*50L*2F 3 20 6 50
KNA750-2BNH-62015 R1*15L*D6*75L*2F 2 15 6 75
KNA750-2BNH-62020 R1*20L*D6*75L*2F 2 20 6 75
KNA750-2BNH-62025 R1*25L*D6*75L*2F 2 25 6 75
KNA750-2BNH-62030 R1*30L*D6*75L*2F 2 30 6 75
KNA750-2BNH-63015 R1.5*15L*D6*75L*2F 3 15 6 75
KNA750-2BNH-63020 R1.5*20L*D6*75L*2F 3 20 6 75
KNA750-2BNH-63025 R1.5*25L*D6*75L*2F 3 25 6 75
KNA750-2BNH-63030 R1.5*30L*D6*75L*2F 3 30 6 75
