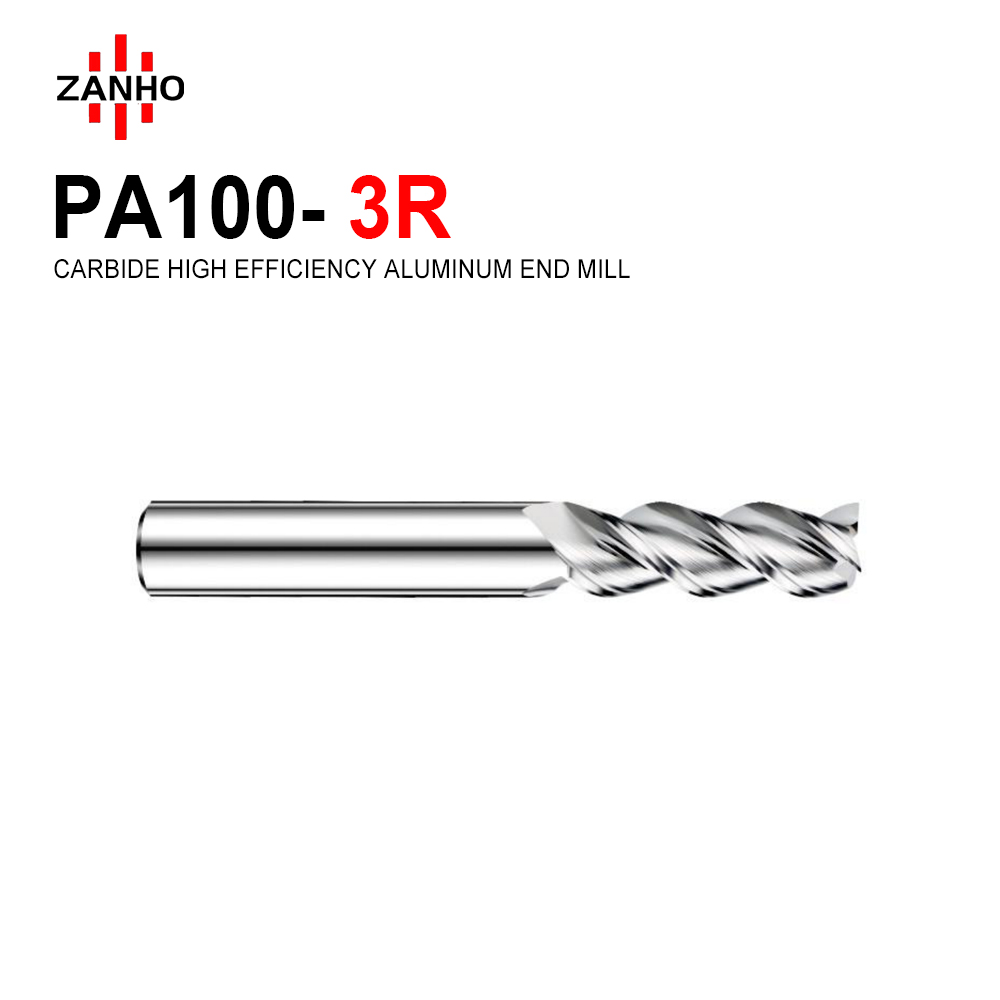

PA100-3R-CORNER RADIUS

  • Specialty: 3-Flute (3R) corner radius design engineered for High-Precision Finishing.
  • Edge Strength: Corner Radius (Bull Nose) protects the cutting edge from chipping, extending tool life in hard-working conditions.
  • Surface Quality: Uncoated (Bright) carbide provides the sharpest edge to achieve a mirror-like finish on non-ferrous metals.
  • Helix Angle: 45° Helix Angle for stable, vibration-free operation during fine finishing.
  • Workpiece: Ideal for Aluminum Alloy, Copper, and Plastics (Workpiece category N).
Categories:
Learn More
Download PDF
Description

订货号 Order Number 规格 Specification 刀径 D R角 R 刃长 L1 柄径 D1 总长 L
PA100-3R-01002 D1R0.2*D4*50L*3F 1 0.2 3 4 50
PA100-3R-01502 D1.5R0.2*D4*50L*3F 1.5 0.2 4.5 4 50
PA100-3R-02002 D2R0.2*D4*50L*3F 2 0.2 5 4 50
PA100-3R-02005 D2R0.5*D4*50L*3F 2 0.5 5 4 50
PA100-3R-03002 D3R0.2*D4*50L*3F 3 0.2 7 4 50
PA100-3R-03005 D3R0.5*D4*50L*3F 3 0.5 7 4 50
PA100-3R-03100 D3R1*D4*50L*3F 3 1 7 4 50
PA100-3R-04002 D4R0.2*D4*50L*3F 4 0.2 10 4 50
PA100-3R-04005 D4R0.5*D4*50L*3F 4 0.5 10 4 50
PA100-3R-04010 D4R1*D4*50L*3F 4 1 10 4 50
PA100-3R-06002 D6R0.2*D6*50L*3F 6 0.2 15 6 50
PA100-3R-06005 D6R0.5*D6*50L*3F 6 0.5 15 6 50
PA100-3R-06010 D6R1*D6*50L*3F 6 1 15 6 50
PA100-3R-08005 D8R0.5*D8*60L*3F 8 0.5 20 8 60
PA100-3R-08010 D8R1*D8*60L*3F 8 1 20 8 60
PA100-3R-10005 D10R0.5*D10*75L*3F 10 0.5 25 10 75
PA100-3R-10010 D10R1*D10*75L*3F 10 1 25 10 75
PA100-3R-12005 D12R0.5*D12*75L*3F 12 0.5 30 12 75
PA100-3R-12010 D12R1*D12*75L*3F 12 1 30 12 75
PA100-3RH-04005 D4R0.5*D4*75L*3F 4 0.5 16 4 75
PA100-3RH-04005A D4R0.5*D4*100L*3F 4 0.5 20 4 100
PA100-3RH-04010 D4R1*D4*75L*3F 4 1 16 4 75
PA100-3RH-04010A D4R1*D4*100L*3F 4 1 20 4 100
PA100-3RH-06005 D6R0.5*D6*75L*3F 6 0.5 24 6 75
PA100-3RH-06005A D6R0.5*D6*100L*3F 6 0.5 30 6 100
PA100-3RH-06005B D6R0.5*D6*150L*3F 6 0.5 40 6 150
PA100-3RH-06010 D6R1*D6*75L*3F 6 1 24 6 75
PA100-3RH-06010A D6R1*D6*100L*3F 6 1 30 6 100
PA100-3RH-06010B D6R1*D6*150L*3F 6 1 40 6 150
PA100-3RH-08005 D8R0.5*D8*75L*3F 8 0.5 25 8 75
PA100-3RH-08005A D8R0.5*D8*100L*3F 8 0.5 35 8 100
PA100-3RH-08005B D8R0.5*D8*150L*3F 8 0.5 40 8 150
PA100-3RH-08010 D8R1*D8*75L*3F 8 1 25 8 75
PA100-3RH-08010A D8R1*D8*100L*3F 8 1 35 8 100
PA100-3RH-08010B D8R1*D8*150L*3F 8 1 45 8 150
PA100-3RH-10005 D10R0.5*D10*100L*3F 10 0.5 40 10 100
PA100-3RH-10005A D10R0.5*D10*150L*3F 10 0.5 50 10 150
PA100-3RH-10010 D10R1*D10*100L*3F 10 1 40 10 100
PA100-3RH-10010A D10R1*D10*150L*3F 10 1 50 10 150
PA100-3RH-12005 D12R0.5*D12*100L*3F 12 0.5 45 12 100
PA100-3RH-12005A D12R0.5*D12*150L*3F 12 0.5 55 12 150
PA100-3RH-12010 D12R1*D12*100L*3F 12 1 45 12 100
PA100-3RH-12010A D12R1*D12*150L*3F 12 1 55 12 150
