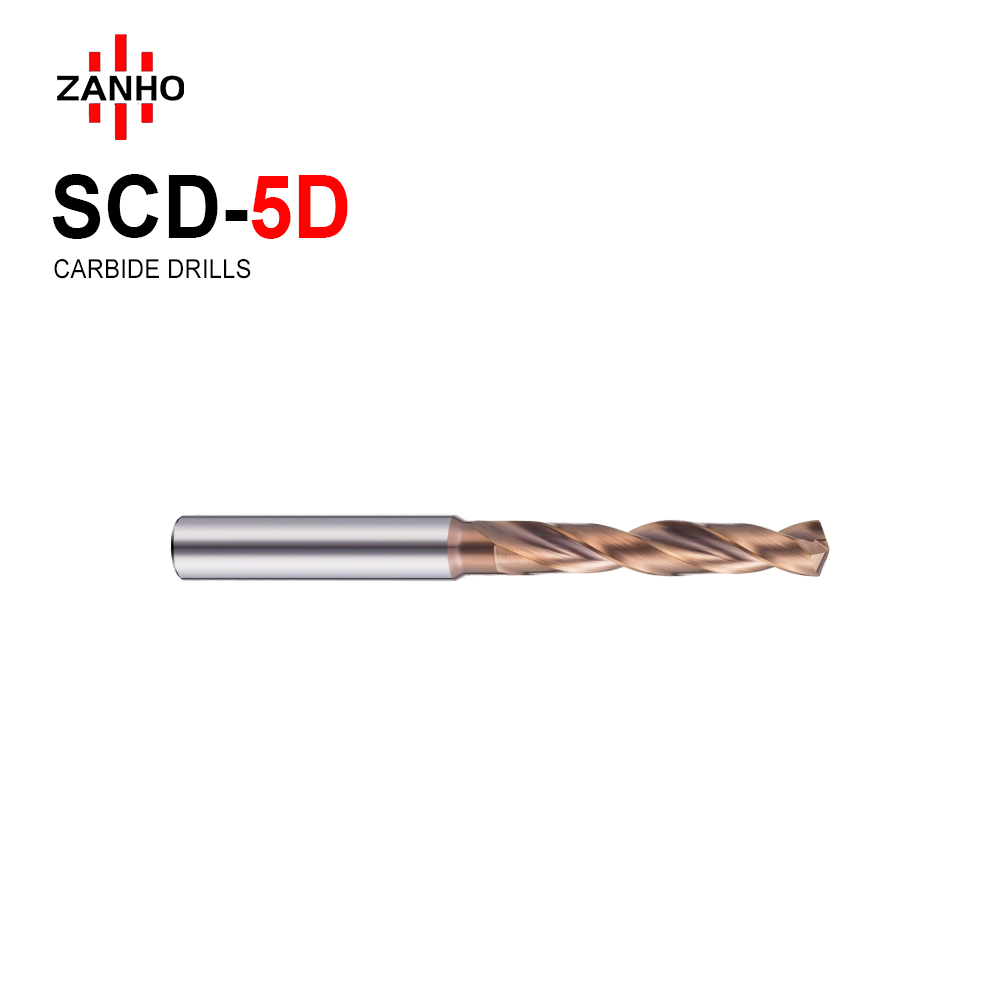

5XD Carbide Twist Drills

  • Deep Hole Specialist: Features a 5xD Depth-to-Diameter Ratio, optimized for drilling deeper holes with high dimensional accuracy in a single pass.
  • Hardened Steel Performance: Specifically engineered for stable and accurate drilling in Hardened Materials up to 62 HRC and heat-treated mold steels.
  • Superior Chip Evacuation: Specialized helical flute geometry ensures smooth chip flow even at 5xD depths, preventing tool clogging and breakage.
  • High Rigidity & Precision: Made from premium sub-micron grain carbide to ensure tight hole tolerances and a superior surface finish on internal walls
  • Massive Size Range: Available in precision diameters from 3.0mm up to 11.5mm to meet diverse industrial and CNC demands.
Categories:
Learn More
Download PDF
Description
  • Deep Hole Specialist: Features a 5xD Depth-to-Diameter Ratio, optimized for drilling deeper holes with high dimensional accuracy in a single pass.
  • Hardened Steel Performance: Specifically engineered for stable and accurate drilling in Hardened Materials up to 62 HRC and heat-treated mold steels.
  • Superior Chip Evacuation: Specialized helical flute geometry ensures smooth chip flow even at 5xD depths, preventing tool clogging and breakage.
  • High Rigidity & Precision: Made from premium sub-micron grain carbide to ensure tight hole tolerances and a superior surface finish on internal walls
  • Massive Size Range: Available in precision diameters from 3.0mm up to 11.5mm to meet diverse industrial and CNC demands.

订货号 Order Number 规格 Specification 刀径 D 刃长 L1 柄径 D1 总长 L 柄长 LS
SCD-5D-0030 D3.0*28H*D6*66L 3 28 6 66 36
SCD-5D-0031 D3.1*28H*D6*66L 3.1 28 6 66 36
SCD-5D-0032 D3.2*28H*D6*66L 3.2 28 6 66 36
SCD-5D-0033 D3.3*28H*D6*66L 3.3 28 6 66 36
SCD-5D-0034 D3.4*28H*D6*66L 3.4 28 6 66 36
SCD-5D-0035 D3.5*28H*D6*66L 3.5 28 6 66 36
SCD-5D-0036 D3.6*28H*D6*66L 3.6 28 6 66 36
SCD-5D-0037 D3.7*28H*D6*66L 3.7 28 6 66 36
SCD-5D-0038 D3.8*36H*D6*74L 3.8 36 6 74 36
SCD-5D-0039 D3.9*36H*D6*74L 3.9 36 6 74 36
SCD-5D-0040 D4.0*36H*D6*74L 4 36 6 74 36
SCD-5D-0041 D4.1*36H*D6*74L 4.1 36 6 74 36
SCD-5D-0042 D4.2*36H*D6*74L 4.2 36 6 74 36
SCD-5D-0043 D4.3*36H*D6*74L 4.3 36 6 74 36
SCD-5D-0044 D4.4*36H*D6*74L 4.4 36 6 74 36
SCD-5D-0045 D4.5*36H*D6*74L 4.5 36 6 74 36
SCD-5D-0046 D4.6*36H*D6*74L 4.6 36 6 74 36
SCD-5D-0047 D4.7*36H*D6*74L 4.7 36 6 74 36
SCD-5D-0048 D4.8*44H*D6*82L 4.8 44 6 82 36
SCD-5D-0049 D4.9*44H*D6*82L 4.9 44 6 82 36
SCD-5D-0050 D5.0*44H*D6*82L 5 44 6 82 36
SCD-5D-0051 D5.1*44H*D6*82L 5.1 44 6 82 36
SCD-5D-0052 D5.2*44H*D6*82L 5.2 44 6 82 36
SCD-5D-0053 D5.3*44H*D6*82L 5.3 44 6 82 36
SCD-5D-0054 D5.4*44H*D6*82L 5.4 44 6 82 36
SCD-5D-0055 D5.5*44H*D6*82L 5.5 44 6 82 36
SCD-5D-0056 D5.6*44H*D6*82L 5.6 44 6 82 36
SCD-5D-0057 D5.7*44H*D6*82L 5.7 44 6 82 36
SCD-5D-0058 D5.8*44H*D6*82L 5.8 44 6 82 36
SCD-5D-0059 D5.9*44H*D6*82L 5.9 44 6 82 36
SCD-5D-0060 D6.0*44H*D6*82L 6 44 6 82 36
SCD-5D-0061 D6.1*53H*D8*91L 6.1 53 8 91 36
SCD-5D-0062 D6.2*53H*D8*91L 6.2 53 8 91 36
SCD-5D-0063 D6.3*53H*D8*91L 6.3 53 8 91 36
SCD-5D-0064 D6.4*53H*D8*91L 6.4 53 8 91 36
SCD-5D-0065 D6.5*53H*D8*91L 6.5 53 8 91 36
SCD-5D-0066 D6.6*53H*D8*91L 6.6 53 8 91 36
SCD-5D-0067 D6.7*53H*D8*91L 6.7 53 8 91 36
SCD-5D-0068 D6.8*53H*D8*91L 6.8 53 8 91 36
SCD-5D-0069 D6.9*53H*D8*91L 6.9 53 8 91 36
SCD-5D-0070 D7.0*53H*D8*91L 7 53 8 91 36
SCD-5D-0071 D7.1*53H*D8*91L 7.1 53 8 91 36
SCD-5D-0072 D7.2*53H*D8*91L 7.2 53 8 91 36
SCD-5D-0073 D7.3*53H*D8*91L 7.3 53 8 91 36
SCD-5D-0074 D7.4*53H*D8*91L 7.4 53 8 91 36
SCD-5D-0075 D7.5*53H*D8*91L 7.5 53 8 91 36
SCD-5D-0076 D7.6*53H*D8*91L 7.6 53 8 91 36
SCD-5D-0077 D7.7*53H*D8*91L 7.7 53 8 91 36
SCD-5D-0078 D7.8*53H*D8*91L 7.8 53 8 91 36
SCD-5D-0079 D7.9*53H*D8*91L 7.9 53 8 91 36
SCD-5D-0080 D8.0*53H*D8*91L 8 53 8 91 36
SCD-5D-0081 D8.1*61H*D10*103L 8.1 61 10 103 40
SCD-5D-0082 D8.2*61H*D10*103L 8.2 61 10 103 40
SCD-5D-0083 D8.3*61H*D10*103L 8.3 61 10 103 40
SCD-5D-0084 D8.4*61H*D10*103L 8.4 61 10 103 40
SCD-5D-0085 D8.5*61H*D10*103L 8.5 61 10 103 40
SCD-5D-0086 D8.6*61H*D10*103L 8.6 61 10 103 40
SCD-5D-0087 D8.7*61H*D10*103L 8.7 61 10 103 40
SCD-5D-0088 D8.8*61H*D10*103L 8.8 61 10 103 40
SCD-5D-0089 D8.9*61H*D10*103L 8.9 61 10 103 40
SCD-5D-0090 D9.0*61H*D10*103L 9 61 10 103 40
SCD-5D-0091 D9.1*61H*D10*103L 9.1 61 10 103 40
SCD-5D-0092 D9.2*61H*D10*103L 9.2 61 10 103 40
SCD-5D-0093 D9.3*61H*D10*103L 9.3 61 10 103 40
SCD-5D-0094 D9.4*61H*D10*103L 9.4 61 10 103 40
SCD-5D-0095 D9.5*61H*D10*103L 9.5 61 10 103 40
SCD-5D-0096 D9.6*61H*D10*103L 9.6 61 10 103 40
SCD-5D-0097 D9.7*61H*D10*103L 9.7 61 10 103 40
SCD-5D-0098 D9.8*61H*D10*103L 9.8 61 10 103 40
SCD-5D-0099 D9.9*61H*D10*103L 9.9 61 10 103 40
SCD-5D-0100 D10.0*61H*D10*103L 10 61 10 103 40
SCD-5D-0101 D10.1*71H*D12*118L 10.1 71 12 118 45
SCD-5D-0102 D10.2*71H*D12*118L 10.2 71 12 118 45
SCD-5D-0103 D10.3*71H*D12*118L 10.3 71 12 118 45
SCD-5D-0104 D10.4*71H*D12*118L 10.4 71 12 118 45
SCD-5D-0105 D10.5*71H*D12*118L 10.5 71 12 118 45
SCD-5D-0106 D10.6*71H*D12*118L 10.6 71 12 118 45
SCD-5D-0107 D10.7*71H*D12*118L 10.7 71 12 118 45
SCD-5D-0108 D10.8*71H*D12*118L 10.8 71 12 118 45
SCD-5D-0109 D10.9*71H*D12*118L 10.9 71 12 118 45
SCD-5D-0110 D11.0*71H*D12*118L 11 71 12 118 45
SCD-5D-0111 D11.1*71H*D12*118L 11.1 71 12 118 45
SCD-5D-0112 D11.2*71H*D12*118L 11.2 71 12 118 45
SCD-5D-0113 D11.3*71H*D12*118L 11.3 71 12 118 45
SCD-5D-0114 D11.4*71H*D12*118L 11.4 71 12 118 45
SCD-5D-0115 D11.5*71H*D12*118L 11.5 71 12 118 45
SCD-5D-0116 D11.6*71H*D12*118L 11.6 71 12 118 45
SCD-5D-0117 D11.7*71H*D12*118L 11.7 71 12 118 45
SCD-5D-0118 D11.8*71H*D12*118L 11.8 71 12 118 45
SCD-5D-0119 D11.9*71H*D12*118L 11.9 71 12 118 45
SCD-5D-0120 D12.0*71H*D12*118L 12 71 12 118 45
SCD-5D-0121 D12.1*77H*D14*124L 12.1 77 14 124 45
SCD-5D-0122 D12.2*77H*D14*124L 12.2 77 14 124 45
SCD-5D-0123 D12.3*77H*D14*124L 12.3 77 14 124 45
SCD-5D-0124 D12.4*77H*D14*124L 12.4 77 14 124 45
SCD-5D-0125 D12.5*77H*D14*124L 12.5 77 14 124 45
SCD-5D-0126 D12.6*77H*D14*124L 12.6 77 14 124 45
SCD-5D-0127 D12.7*77H*D14*124L 12.7 77 14 124 45
SCD-5D-0128 D12.8*77H*D14*124L 12.8 77 14 124 45
SCD-5D-0129 D12.9*77H*D14*124L 12.9 77 14 124 45
SCD-5D-0130 D13.0*77H*D14*124L 13 77 14 124 45
SCD-5D-0131 D13.1*77H*D14*124L 13.1 77 14 124 45
SCD-5D-0132 D13.2*77H*D14*124L 13.2 77 14 124 45
SCD-5D-0133 D13.3*77H*D14*124L 13.3 77 14 124 45
SCD-5D-0134 D13.4*77H*D14*124L 13.4 77 14 124 45
SCD-5D-0135 D13.5*77H*D14*124L 13.5 77 14 124 45
SCD-5D-0136 D13.6*77H*D14*124L 13.6 77 14 124 45
SCD-5D-0137 D13.7*77H*D14*124L 13.7 77 14 124 45
SCD-5D-0138 D13.8*77H*D14*124L 13.8 77 14 124 45
SCD-5D-0139 D13.9*77H*D14*124L 13.9 77 14 124 45
SCD-5D-0140 D14.0*77H*D14*124L 14 77 14 124 45
SCD-5D-0141 D14.1*83H*D16*133L 14.1 83 16 133 48
SCD-5D-0142 D14.2*83H*D16*133L 14.2 83 16 133 48
SCD-5D-0143 D14.3*83H*D16*133L 14.3 83 16 133 48
SCD-5D-0144 D14.4*83H*D16*133L 14.4 83 16 133 48
SCD-5D-0145 D14.5*83H*D16*133L 14.5 83 16 133 48
SCD-5D-0146 D14.6*83H*D16*133L 14.6 83 16 133 48
SCD-5D-0147 D14.7*83H*D16*133L 14.7 83 16 133 48
SCD-5D-0148 D14.8*83H*D16*133L 14.8 83 16 133 48
SCD-5D-0149 D14.9*83H*D16*133L 14.9 83 16 133 48
SCD-5D-0150 D15.0*83H*D16*133L 15 83 16 133 48
SCD-5D-0151 D15.1*83H*D16*133L 15.1 83 16 133 48
SCD-5D-0152 D15.2*83H*D16*133L 15.2 83 16 133 48
SCD-5D-0153 D15.3*83H*D16*133L 15.3 83 16 133 48
SCD-5D-0154 D15.4*83H*D16*133L 15.4 83 16 133 48
SCD-5D-0155 D15.5*83H*D16*133L 15.5 83 16 133 48
SCD-5D-0156 D15.6*83H*D16*133L 15.6 83 16 133 48
SCD-5D-0157 D15.7*83H*D16*133L 15.7 83 16 133 48
SCD-5D-0158 D15.8*83H*D16*133L 15.8 83 16 133 48
SCD-5D-0159 D15.9*83H*D16*133L 15.9 83 16 133 48
SCD-5D-0160 D16.0*83H*D16*133L 16 83 16 133 48
SCD-5D-0161 D16.1*93H*D18*143L 16.1 93 18 143 48
SCD-5D-0162 D16.2*93H*D18*143L 16.2 93 18 143 48
SCD-5D-0163 D16.3*93H*D18*143L 16.3 93 18 143 48
SCD-5D-0164 D16.4*93H*D18*143L 16.4 93 18 143 48
SCD-5D-0165 D16.5*93H*D18*143L 16.5 93 18 143 48
SCD-5D-0166 D16.6*93H*D18*143L 16.6 93 18 143 48
SCD-5D-0167 D16.7*93H*D18*143L 16.7 93 18 143 48
SCD-5D-0168 D16.8*93H*D18*143L 16.8 93 18 143 48
SCD-5D-0169 D16.9*93H*D18*143L 16.9 93 18 143 48
SCD-5D-0170 D17.0*93H*D18*143L 17 93 18 143 48
SCD-5D-0171 D17.1*93H*D18*143L 17.1 93 18 143 48
SCD-5D-0172 D17.2*93H*D18*143L 17.2 93 18 143 48
SCD-5D-0173 D17.3*93H*D18*143L 17.3 93 18 143 48
SCD-5D-0174 D17.4*93H*D18*143L 17.4 93 18 143 48
SCD-5D-0175 D17.5*93H*D18*143L 17.5 93 18 143 48
SCD-5D-0176 D17.6*93H*D18*143L 17.6 93 18 143 48
SCD-5D-0177 D17.7*93H*D18*143L 17.7 93 18 143 48
SCD-5D-0178 D17.8*93H*D18*143L 17.8 93 18 143 48
SCD-5D-0179 D17.9*93H*D18*143L 17.9 93 18 143 48
SCD-5D-0180 D18.0*93H*D18*143L 18 93 18 143 48
SCD-5D-0181 D18.1*101H*D20*153L 18.1 101 20 153 50
SCD-5D-0182 D18.2*101H*D20*153L 18.2 101 20 153 50
SCD-5D-0183 D18.3*101H*D20*153L 18.3 101 20 153 50
SCD-5D-0184 D18.4*101H*D20*153L 18.4 101 20 153 50
SCD-5D-0185 D18.5*101H*D20*153L 18.5 101 20 153 50
SCD-5D-0186 D18.6*101H*D20*153L 18.6 101 20 153 50
SCD-5D-0187 D18.7*101H*D20*153L 18.7 101 20 153 50
SCD-5D-0188 D18.8*101H*D20*153L 18.8 101 20 153 50
SCD-5D-0189 D18.9*101H*D20*153L 18.9 101 20 153 50
SCD-5D-0190 D19.0*101H*D20*153L 19 101 20 153 50
SCD-5D-0191 D19.1*101H*D20*153L 19.1 101 20 153 50
SCD-5D-0192 D19.2*101H*D20*153L 19.2 101 20 153 50
SCD-5D-0193 D19.3*101H*D20*153L 19.3 101 20 153 50
SCD-5D-0194 D19.4*101H*D20*153L 19.4 101 20 153 50
SCD-5D-0195 D19.5*101H*D20*153L 19.5 101 20 153 50
SCD-5D-0196 D19.6*101H*D20*153L 19.6 101 20 153 50
SCD-5D-0197 D19.7*101H*D20*153L 19.7 101 20 153 50
SCD-5D-0198 D19.8*101H*D20*153L 19.8 101 20 153 50
SCD-5D-0199 D19.9*101H*D20*153L 19.9 101 20 153 50
SCD-5D-0200 D20.0*101H*D20*153L 20 101 20 153 50
