snmu090408
snmu090408

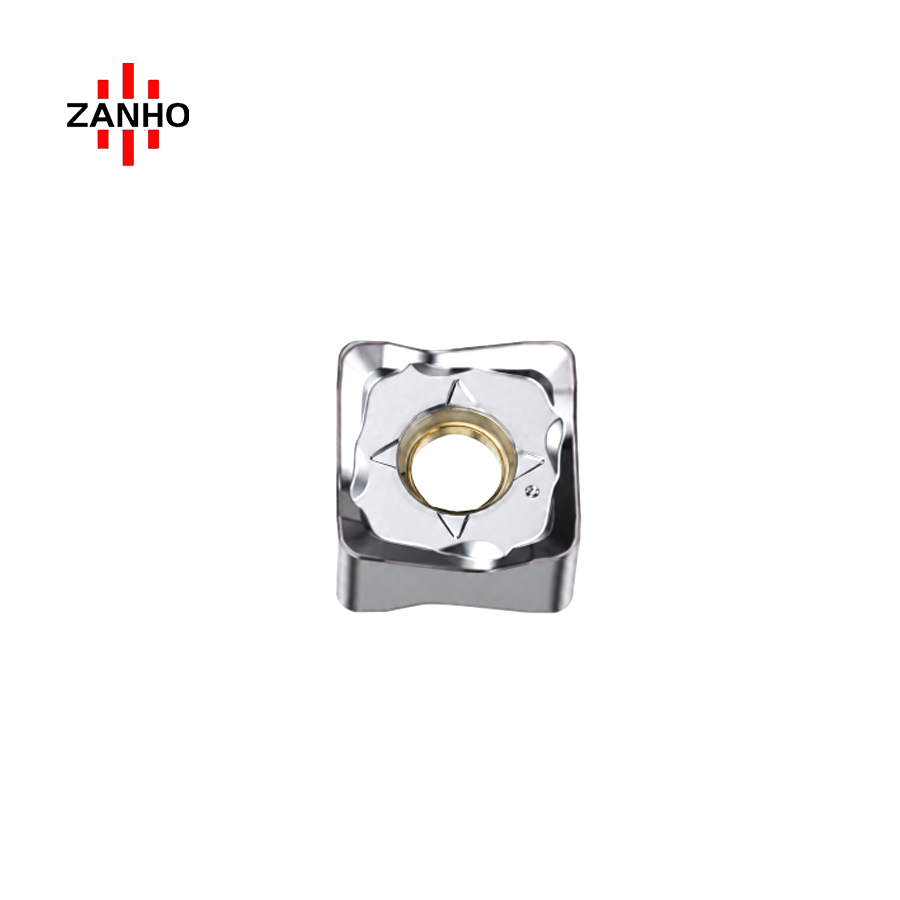

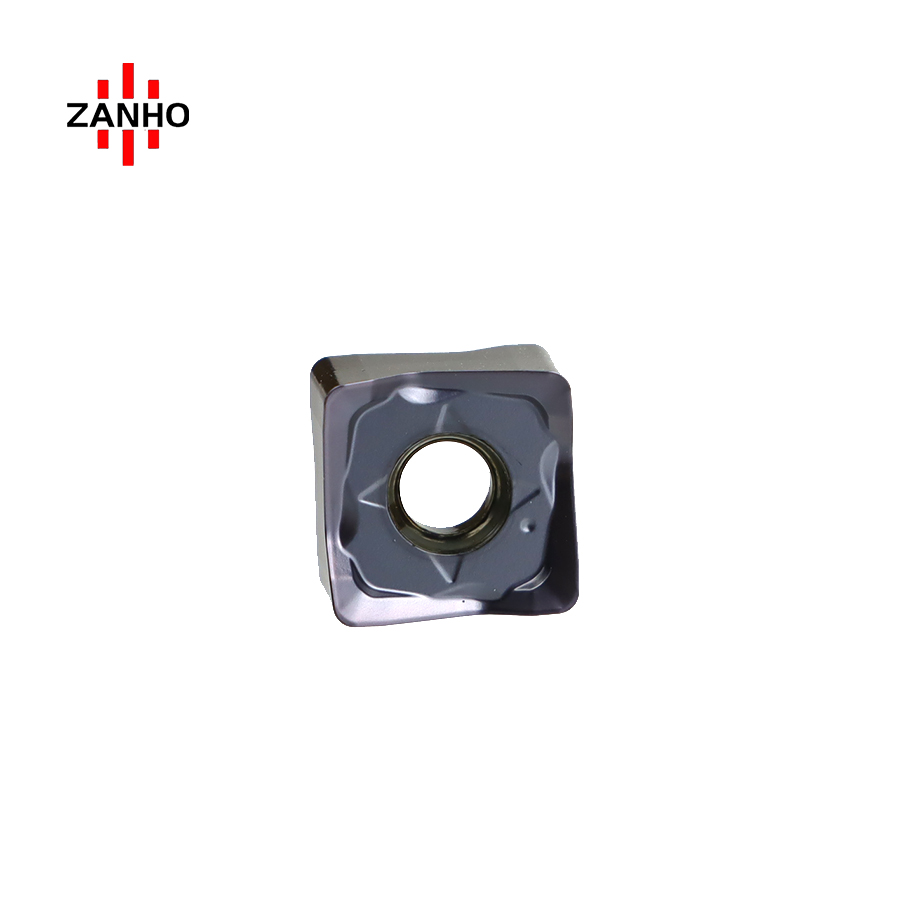

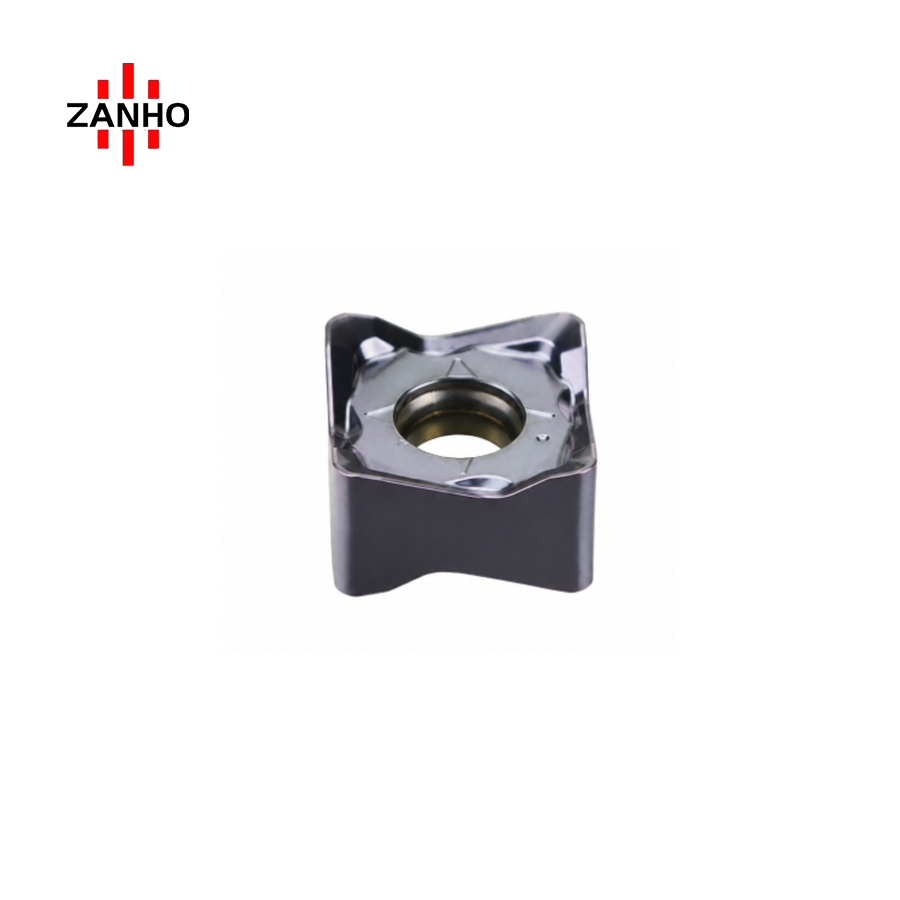

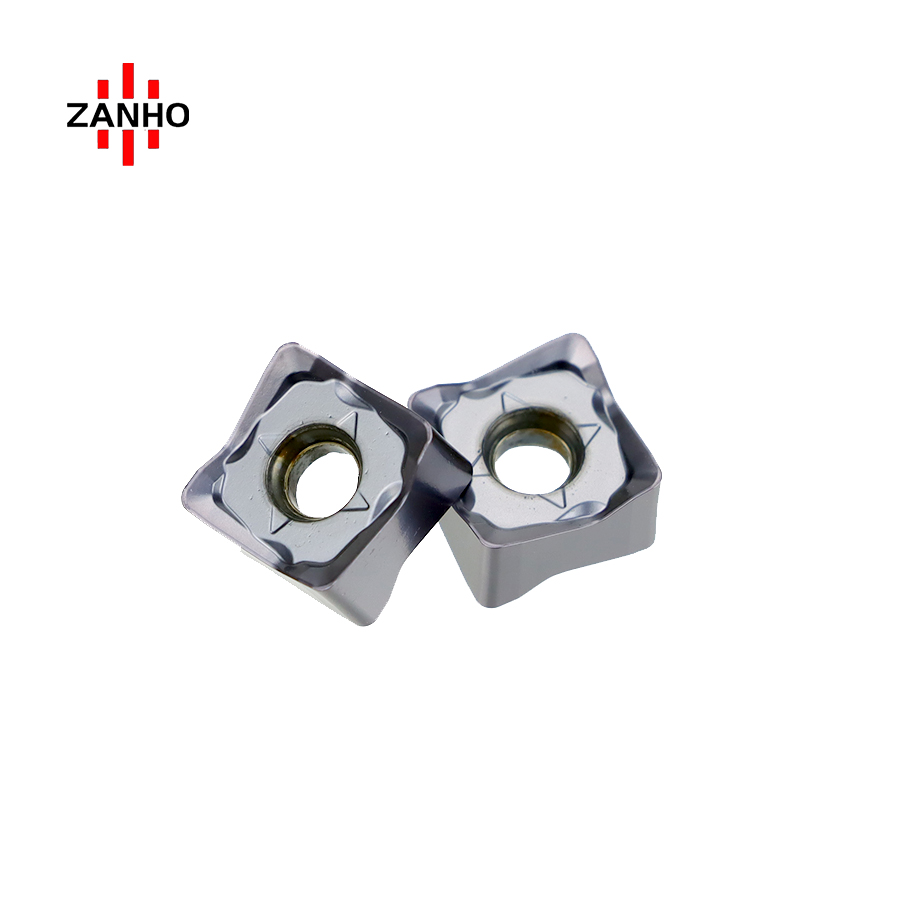

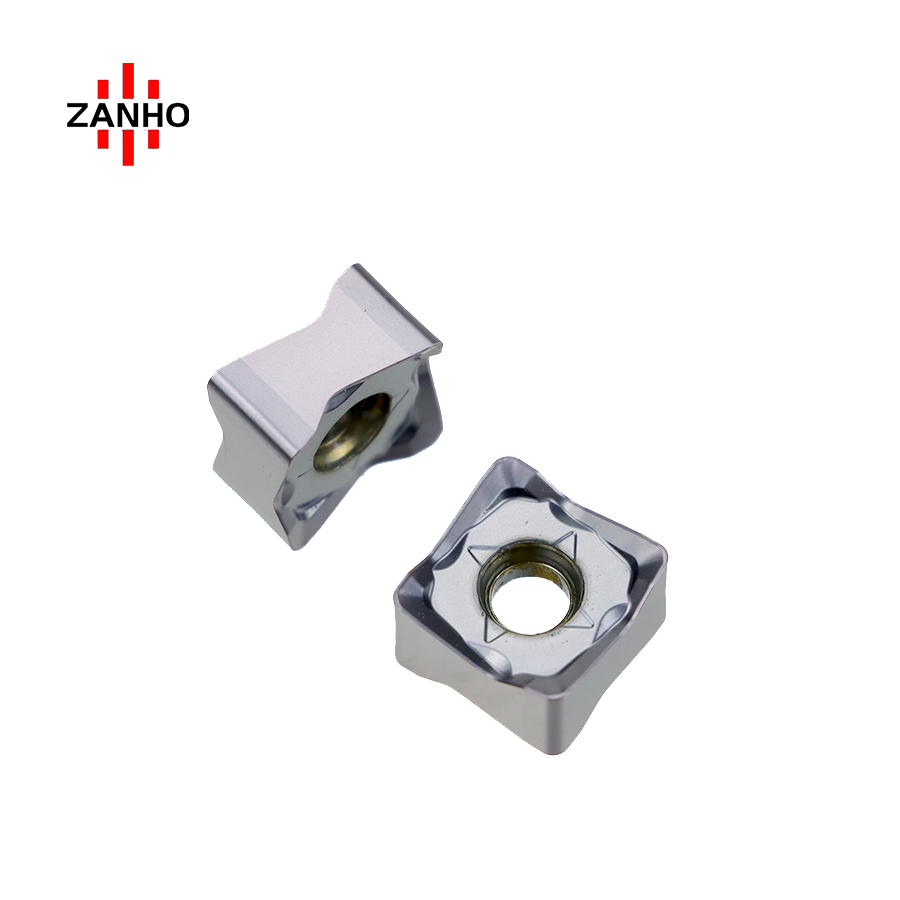

SNMU090408EN-GM

  • GM Chipbreaker: General-purpose geometry providing excellent chip control and low cutting resistance.
  • 8 Cutting Edges: Double-sided square design maximizes tool life and reduces cost-per-edge.
  • Advanced Coating: Features MEGACOAT NANO technology for superior heat resistance and durability in tough materials.
  • Application: Ideal for high-feed milling of Steel (P), Stainless Steel (M), and Cast Iron (K).
  • Precision Fit: Fully compatible with MFH Harrier and high-feed milling cutters.
  • [ZANHO Cutting Tools] – Your reliable partner for high-precision CNC machining solutions.

Categories:
Learn More
Download PDF
Description
  • GM Chipbreaker: General-purpose geometry providing excellent chip control and low cutting resistance.
  • 8 Cutting Edges: Double-sided square design maximizes tool life and reduces cost-per-edge.
  • Advanced Coating: Features MEGACOAT NANO technology for superior heat resistance and durability in tough materials.
  • Application: Ideal for high-feed milling of Steel (P), Stainless Steel (M), and Cast Iron (K).
  • Precision Fit: Fully compatible with MFH Harrier and high-feed milling cutters.
  • [ZANHO Cutting Tools] – Your reliable partner for high-precision CNC machining solutions.

Code Teeth Dimension APMX Matched Insert Screw Wrench
Cutting Dia. Dia. of Shank Overall length Avoid Length
MFSN 88-09-25-C25-2T-125L 2 25 25 125 50 6 SNMU090408EN-GM M3*6.5*D4*T8 T8
MFSN 88-09-25-C25-2T-160L 2 25 25 160 50 6 SNMU090408EN-GM M3*6.5*D4*T8 T8
MFSN 88-09-25-C25-2T-200L 2 25 25 200 50 6 SNMU090408EN-GM M3*6.5*D4*T8 T8
MFSN 88-09-26-C25-2T-125L 2 26 25 125 50 6 SNMU090408EN-GM M3*6.5*D4*T8 T8
MFSN 88-09-26-C25-2T-160L 2 26 25 160 26 6 SNMU090408EN-GM M3*6.5*D4*T8 T8
MFSN 88-09-26-C25-2T-200L 2 26 25 200 50 6 SNMU090408EN-GM M3*6.5*D4*T8 T8
MFSN 88-09-32-C32-3T-125L 3 32 32 125 64 6 SNMU090408EN-GM M3*6.5*D4*T8 T8
MFSN 88-09-32-C32-3T-160L 3 32 32 160 64 6 SNMU090408EN-GM M3*6.5*D4*T8 T8
MFSN 88-09-32-C32-3T-200L 3 32 32 200 64 6 SNMU090408EN-GM M3*6.5*D4*T8 T8
MFSN 88-09-33-C32-3T-160L 3 33 32 160 33 6 SNMU090408EN-GM M3*6.5*D4*T8 T8
MFSN 88-09-33-C32-3T-200L 3 33 32 200 33 6 SNMU090408EN-GM M3*6.5*D4*T8 T8
