RPHX1204M6EN‑M31

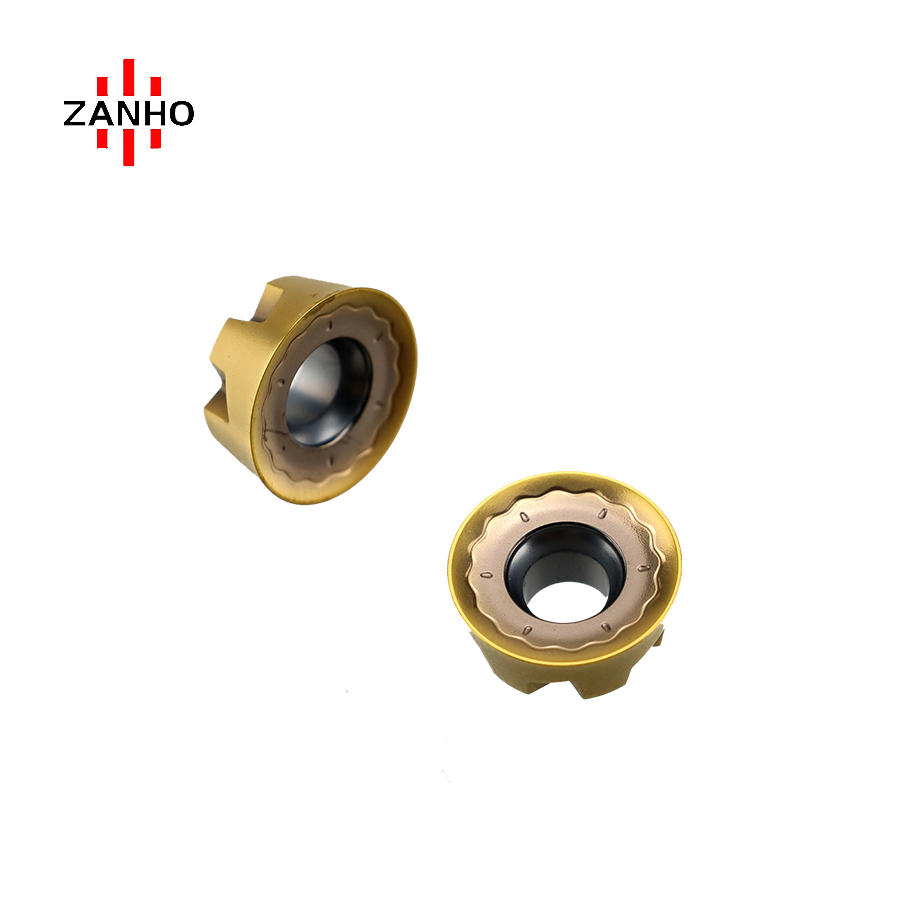

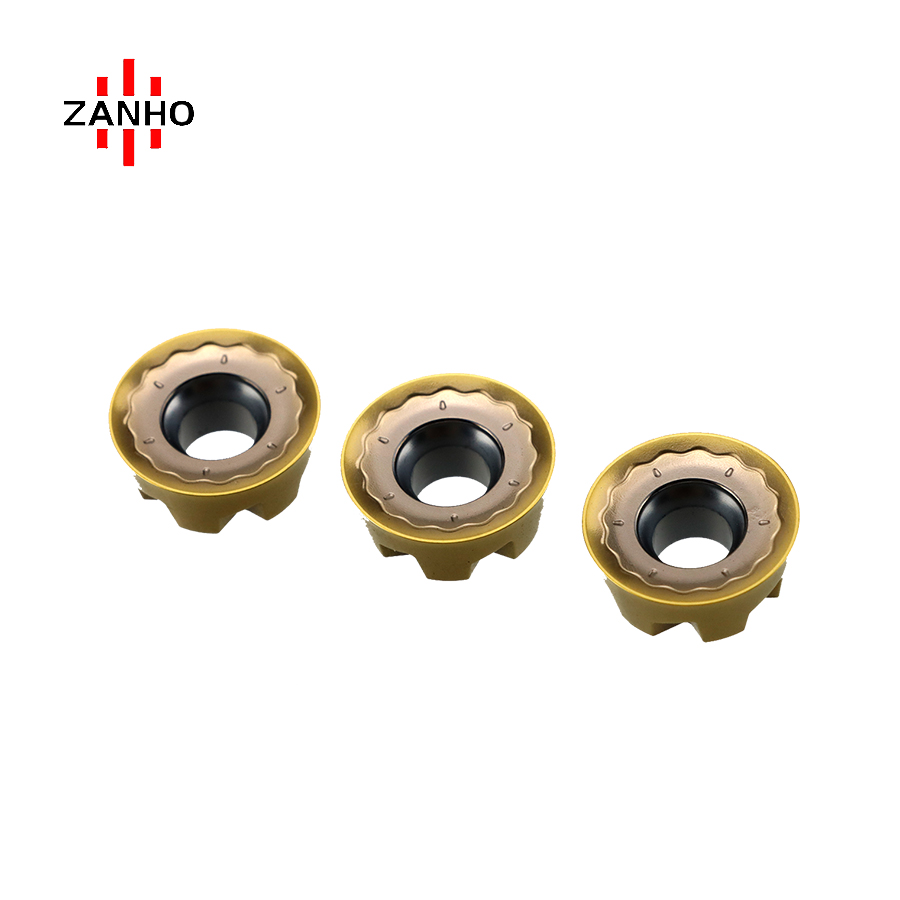

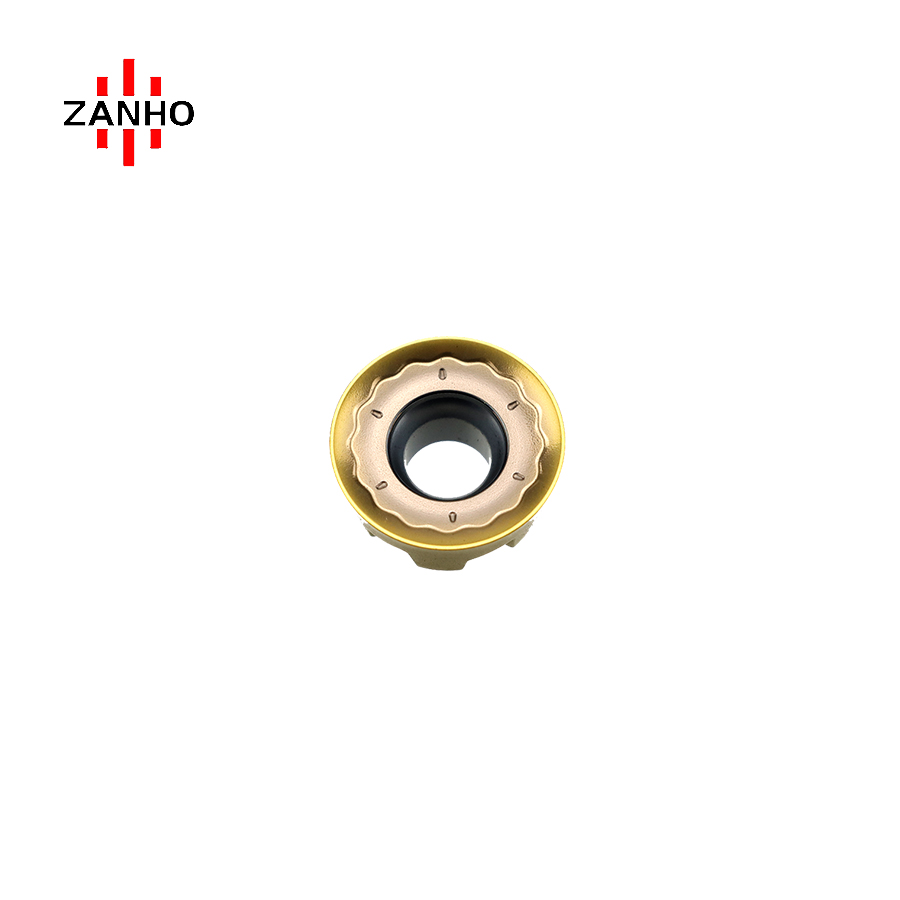

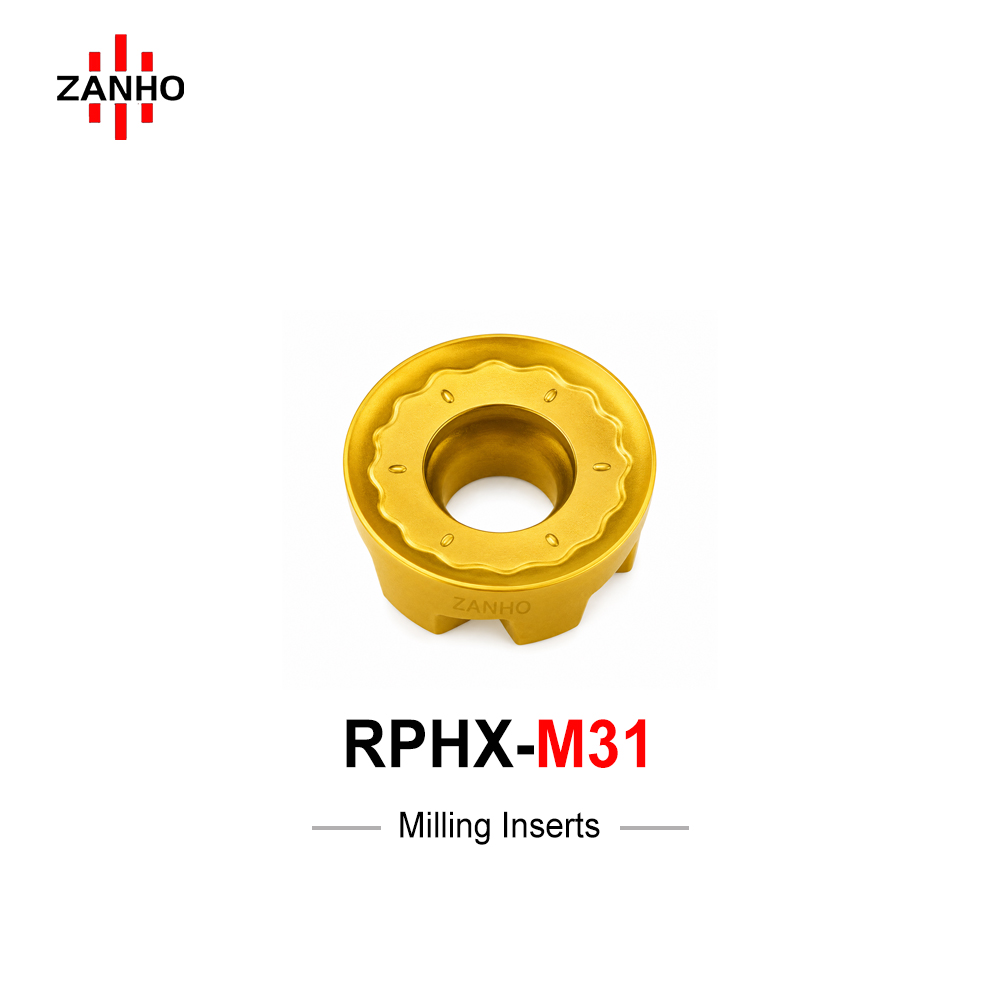

ZANHO RPHX1204M6EN-M31: Single-sided positive round insert featuring an anti-rotation positioning structure to ensure stability during high-load milling. Equipped with the M31 chipbreaker, it excels in large-depth profiling, cavity roughing, and helical interpolation. Optimized for mold steel, alloy steel, and forgings with oxide skin.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Anti-Rotation Design: Precision positioning slots effectively prevent insert rotation under heavy cutting loads, ensuring process safety and prolonged tool life.
  • M31 Versatile Geometry: A rough-to-semi-finish chipbreaker that balances superior edge toughness with efficient chip evacuation for complex 3D profiling.
  • High Productivity: Supports large axial depth (APMX 6.0mm) and radial depth (ARMAX 12.0mm) for rapid mold cavity opening and material removal.
  • Profiling Excellence: Optimized for large-depth profiling, arc transition area machining, and high-efficiency helical interpolation.
  • Rough Surface Reliability: High durability when machining forgings or castings with hard oxide scale and interrupted cutting paths.

Technical Specifications (mm)

Model Type I.C (IC) Thickness (S) Radius (Re) Relief Angle Max APMX Max ARMAX
RPHX1204M6EN-M31 12.00 4.76 6.00 11° 6.0 12.0

Precision Profiling for Complex Mold Cavities

ZANHO RPHX series delivers high stability for difficult profiling tasks. Contact us for bulk B2B inquiry and holder compatibility.
