TCMT-PC

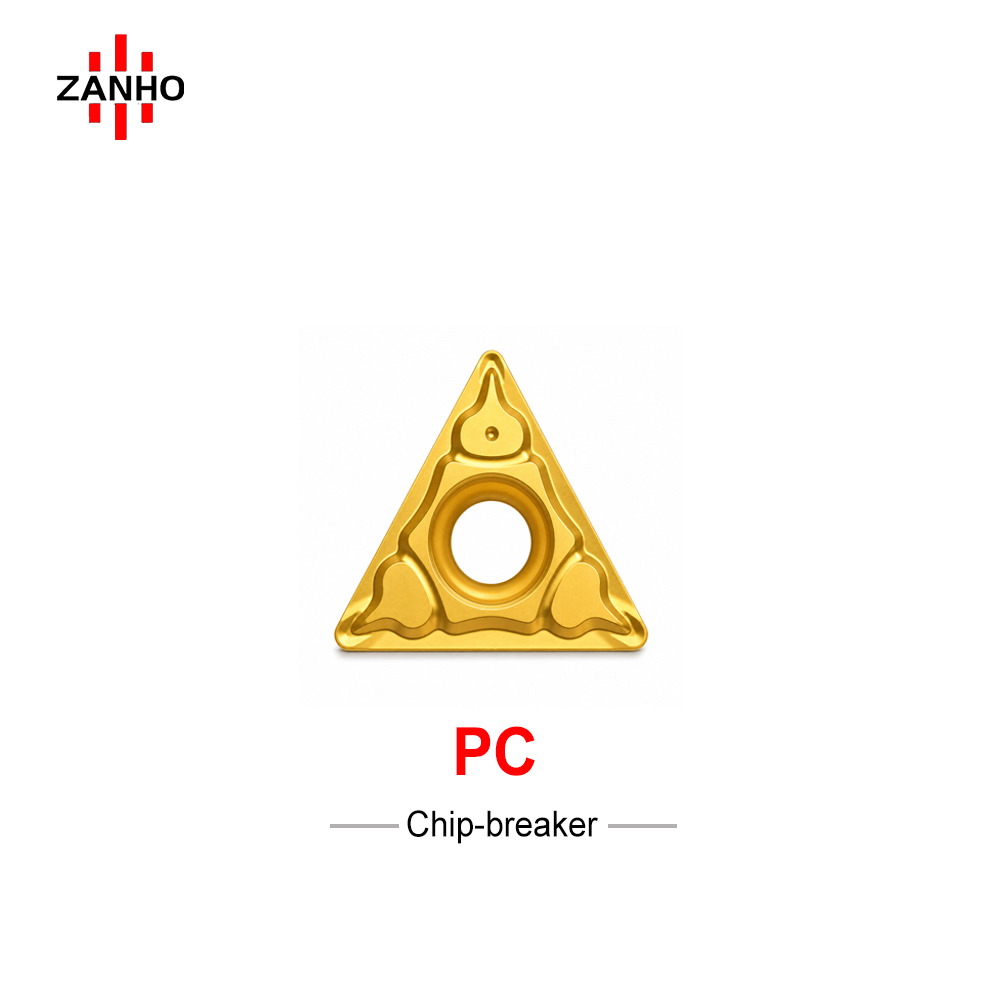

ZANHO TCMT-PC series is a professional triangle positive turning insert specifically designed for Medium Machining. Featuring the specialized PC chipbreaker, it delivers stable cutting performance and consistent chip evacuation at medium feed rates, making it an ideal choice for general-purpose turning of steel and alloy components with high reliability.
Categories:
Learn More
Download PDF
Description

ZANHO TCMT-PC series is a professional triangle positive turning insert specifically designed for Medium Machining. Featuring the specialized PC chipbreaker, it delivers stable cutting performance and consistent chip evacuation at medium feed rates, making it an ideal choice for general-purpose turning of steel and alloy components with high reliability.

Key Performance & Features

  • Medium Machining Specialist: Optimized for semi-roughing to medium finishing applications, ensuring continuous productivity in general CNC turning.
  • PC Chipbreaker Geometry: Specifically engineered for stable chip breaking at medium feed rates, effectively preventing chip nesting and workpiece surface damage.
  • Positive Triangle Design: The 7-degree positive clearance angle reduces cutting forces and heat buildup, ideal for smaller lathes and slender workpiece machining.
  • Stable Cutting Edge: Precision-ground edges enhance surface finish and machining reliability, maintaining consistent quality in long-running turning cycles.

Technical Specifications

Model Feed (f) Cut Depth (ap)
TCMT090204-PC 0.06 - 0.18 mm/r 0.3 - 2.0 mm
TCMT110204-PC 0.06 - 0.2 mm/r 0.3 - 2.5 mm
TCMT110208-PC 0.09 - 0.26 mm/r 0.42 - 2.5 mm
TCMT16T304-PC 0.08 - 0.25 mm/r 0.35 - 3.0 mm
TCMT16T308-PC 0.10 - 0.28 mm/r 0.5 - 3.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade and coating based on your specific material hardness and machining conditions.
