TNMG-43

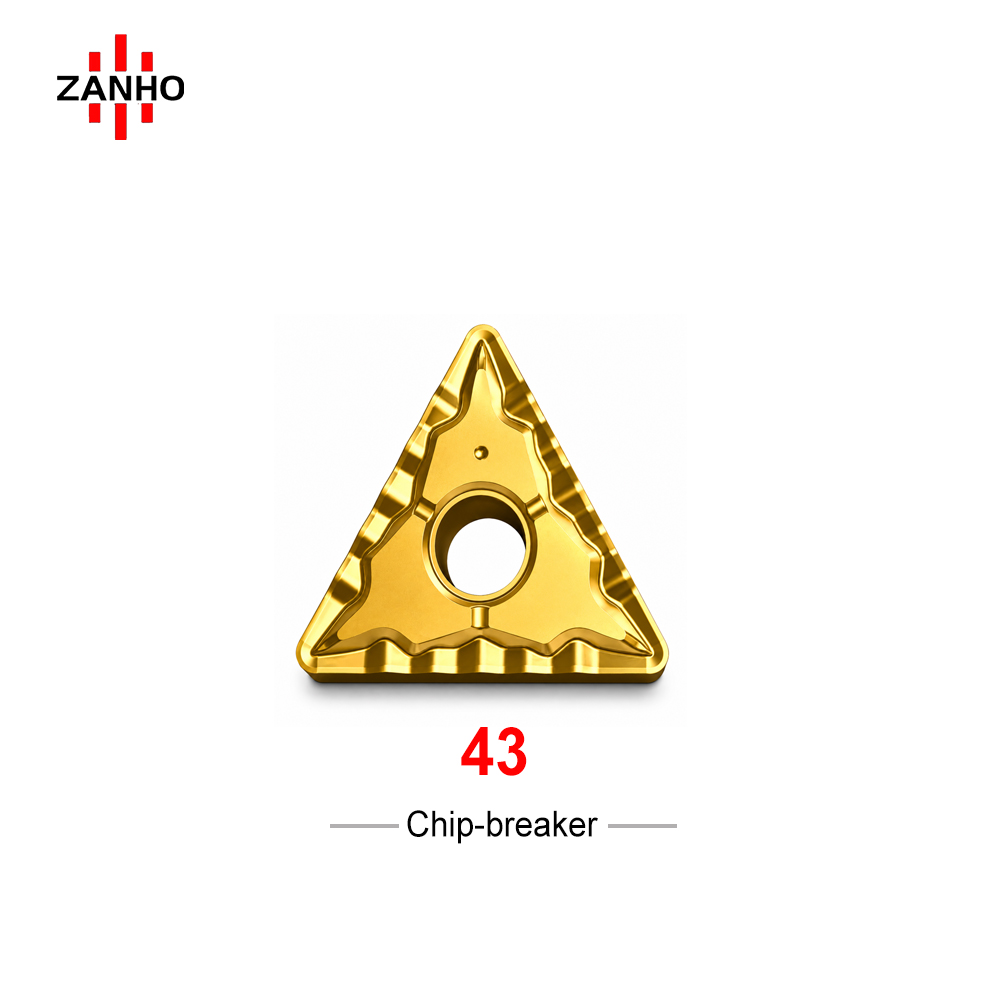

ZANHO TNMG1604-43 is a professional triangular negative turning insert specifically designed for Semi-finishing. Featuring the versatile 43 chipbreaker, it provides an excellent balance between cutting efficiency and surface quality, ensuring stable chip evacuation in both steel and stainless steel applications.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Semi-finishing Specialist: Engineered to provide a perfect balance between metal removal rate and surface finish.
  • 43 Chipbreaker: A highly versatile geometry that ensures smooth chip breaking across a wide range of feed rates (0.12 - 0.52 mm/rev).
  • Triangular Stability: Negative triangular geometry offers high edge strength and 6 available cutting edges for maximum cost-efficiency.
  • Wide Machining Range: Stable performance at cutting depths (ap) up to 4.8mm, suitable for various profiling and turning tasks.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
TNMG160404-43 0.4 mm 0.12 - 0.52 0.7 - 4.5 mm
TNMG160408-43 0.8 mm 0.12 - 0.52 0.7 - 4.8 mm
TNMG160412-43 1.2 mm 0.12 - 0.52 0.7 - 4.8 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
