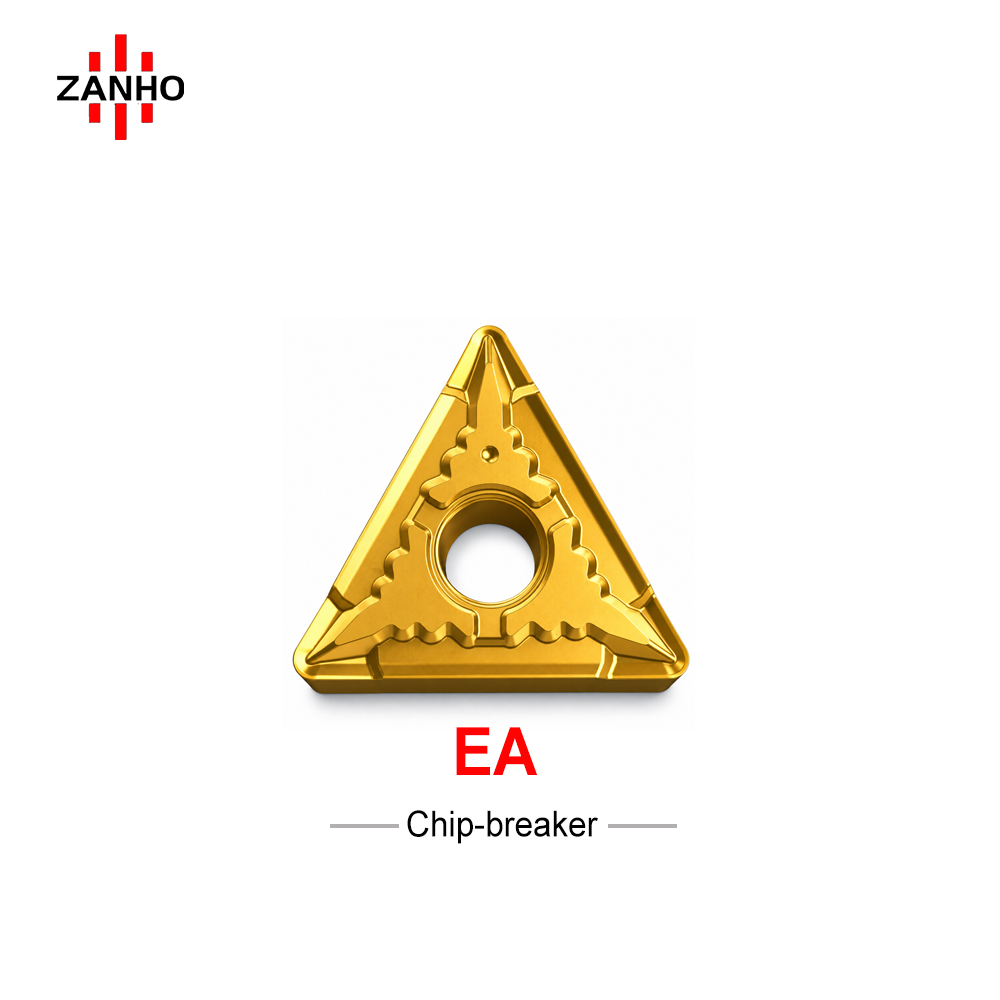

TNMG-EA

Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Finishing Specialist: Engineered specifically for high-precision finishing operations, delivering superior surface integrity and dimensional accuracy.
  • EA Chipbreaker: Optimized for stainless steel and heat-resistant alloys, ensuring excellent chip breaking at very light depths of cut.
  • Stable Geometry: The TNMG negative geometry provides high edge strength and multiple cutting edges for increased cost-efficiency in continuous turning.
  • Sharp Cutting Edge: Designed to minimize cutting resistance and heat buildup, effectively preventing work hardening in sensitive materials.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
TNMG160404-EA 0.4 mm 0.05 - 0.20 0.1 - 1.5 mm
TNMG160408-EA 0.8 mm 0.10 - 0.40 0.1 - 1.5 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
