TNMG-GM

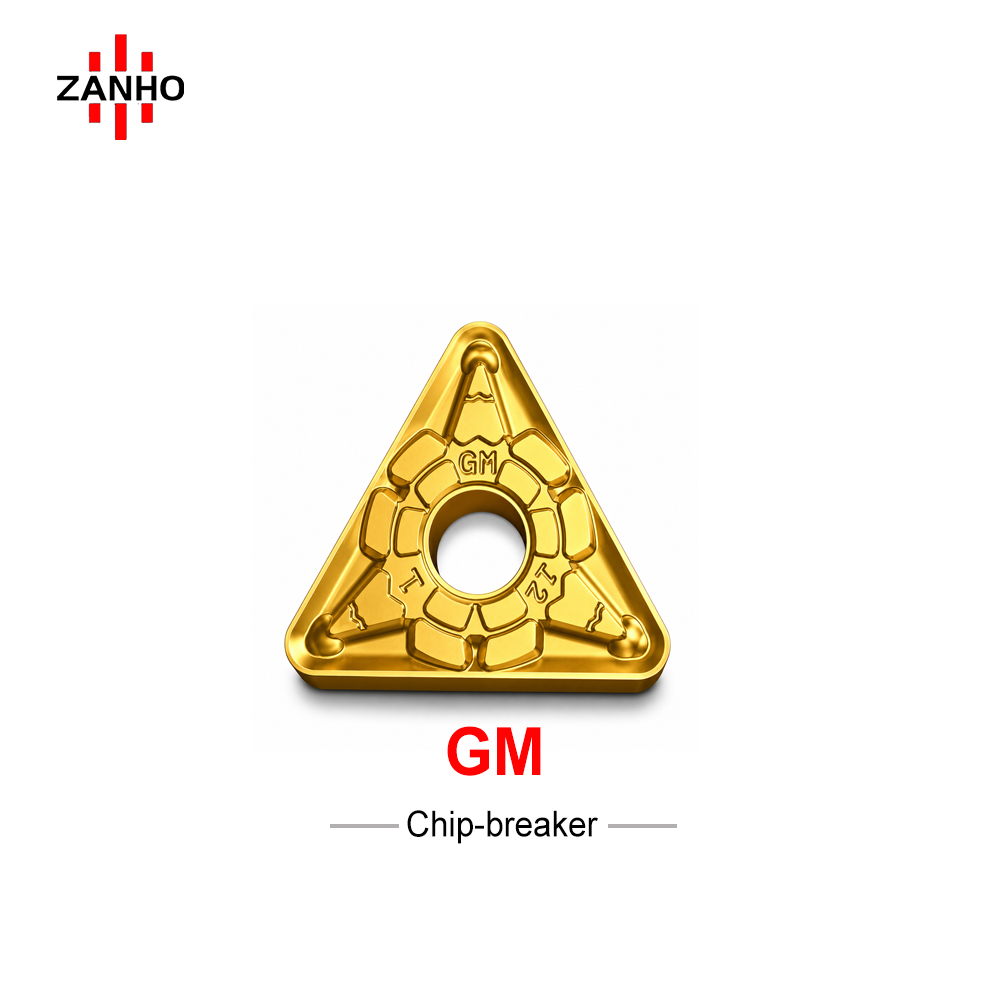

ZANHO TNMG1604-GM is a high-performance triangular negative turning insert designed for Medium Machining. Featuring the versatile GM chipbreaker, it delivers stable chip control and excellent edge durability, ensuring reliable performance in both steel and stainless steel applications.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • General Purpose Specialist: Designed for a wide range of medium machining tasks, offering a perfect balance between toughness and cutting sharpness.
  • GM Chipbreaker: Features a reinforced geometry that ensures stable chip breaking even at varying depths of cut and feed rates.
  • High Edge Strength: The triangular negative geometry provides 6 robust cutting edges, delivering exceptional cost-efficiency and tool life.
  • Material Versatility: Optimized for stable turning in Steel (P), Stainless Steel (M), and Alloy Steels with consistent surface quality.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
TNMG160408-GM 0.8 mm 0.10 - 0.40 0.50 - 4.5 mm
TNMG160412-GM 1.2 mm 0.10 - 0.55 0.80 - 4.5 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
