TNMG-MA

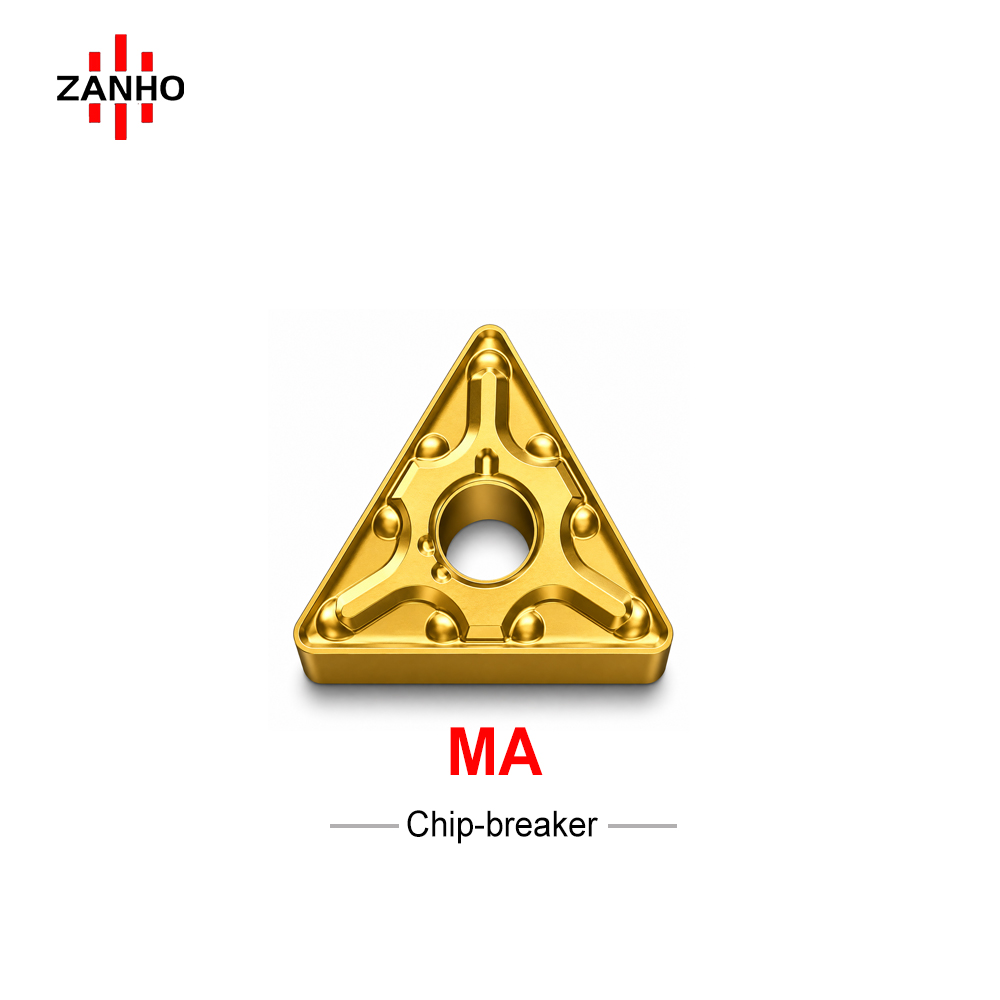

ZANHO TNMG1604-MA is a high-performance triangular negative turning insert specifically engineered for Medium Machining. Featuring the specialized MA chipbreaker, it delivers stable chip control and excellent edge durability, ensuring reliable performance in both steel and stainless steel applications.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • MA Chipbreaker: Specifically designed for Medium Machining, offering exceptional chip breaking control and reducing cutting resistance across a wide range of feed rates.
  • Versatile Performance: Optimized for high stability in both continuous and light-interrupted turning of Steel (P) and Stainless Steel (M).
  • High Edge Strength: The negative triangular geometry provides 6 robust cutting edges, ensuring maximum cost-efficiency and extended tool life.
  • Broad Application: Ideal for machining depths (ap) up to 5.0mm, making it the perfect choice for transitioning from roughing to finishing.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
TNMG160404-MA 0.4 mm 0.10 - 0.50 0.5 - 5.0 mm
TNMG160408-MA 0.8 mm 0.13 - 0.50 0.5 - 5.0 mm
TNMG160412-MA 1.2 mm 0.15 - 0.55 0.5 - 5.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
