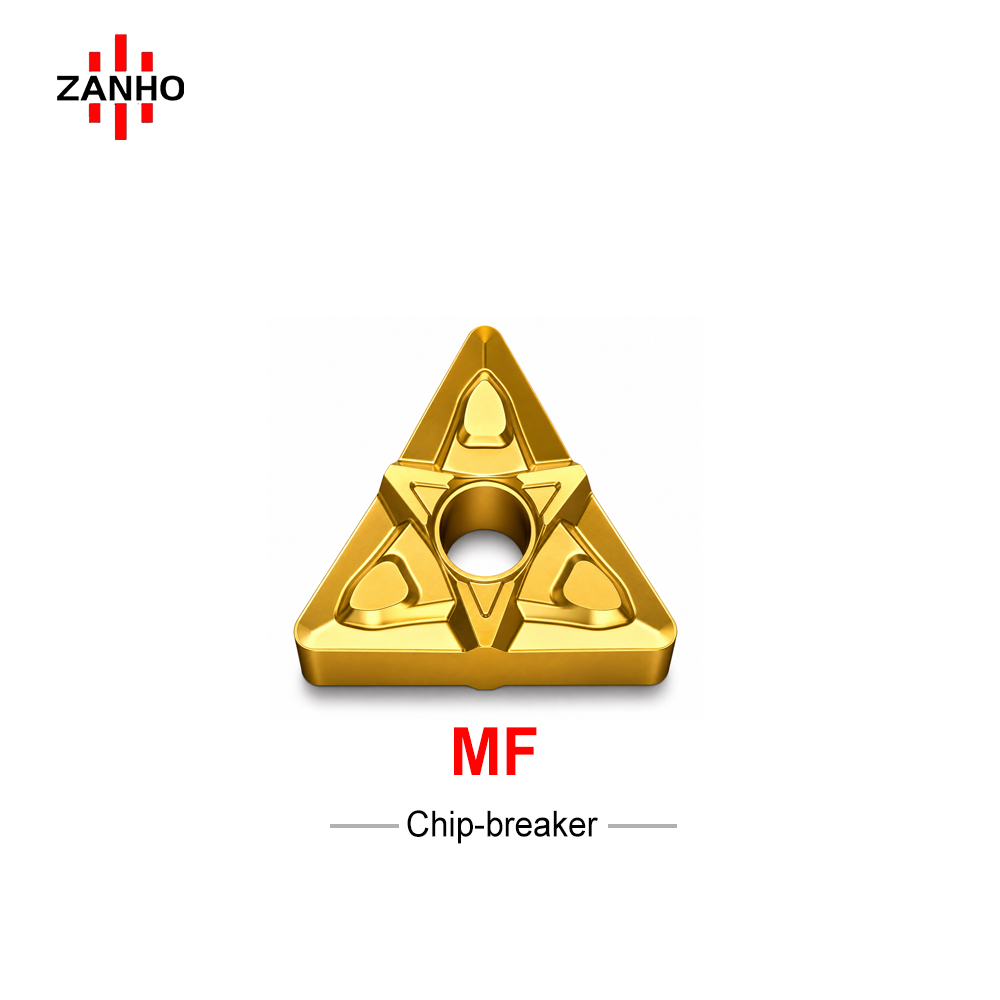

TNMG1604-MF | Triangular Carbide Turning Insert

ZANHO TNMG1604-MF is a professional triangular negative turning insert specifically engineered for Medium Machining. Featuring the specialized MF chipbreaker, it delivers stable chip evacuation and high edge strength, ensuring reliable performance in both steel and stainless steel semi-finishing applications.

Categories: TNMG Inserts

Download PDF

Key Performance & Features

MF Chipbreaker: Optimized for medium machining, providing exceptional chip control and reducing cutting forces during semi-finishing stages.
High Surface Finish: Features a precision-ground cutting edge that delivers superior surface integrity and dimensional consistency on workpieces.
Stable Geometry: The TNMG negative triangular design provides high edge stability and 6 efficient cutting edges for maximum cost-effectiveness.
Material Versatility: Highly effective for turning Steel (P) and Stainless Steel (M) with extended tool life and minimal vibration.

Technical Specifications

Model	Radius (re)	Feed (fn)	Cut Depth (ap)
TNMG160408-MF	0.8 mm	0.12 - 0.35	1.0 - 3.5 mm
TNMG160412-MF	1.2 mm	0.15 - 0.35	1.5 - 3.5 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
