TNMG-PC

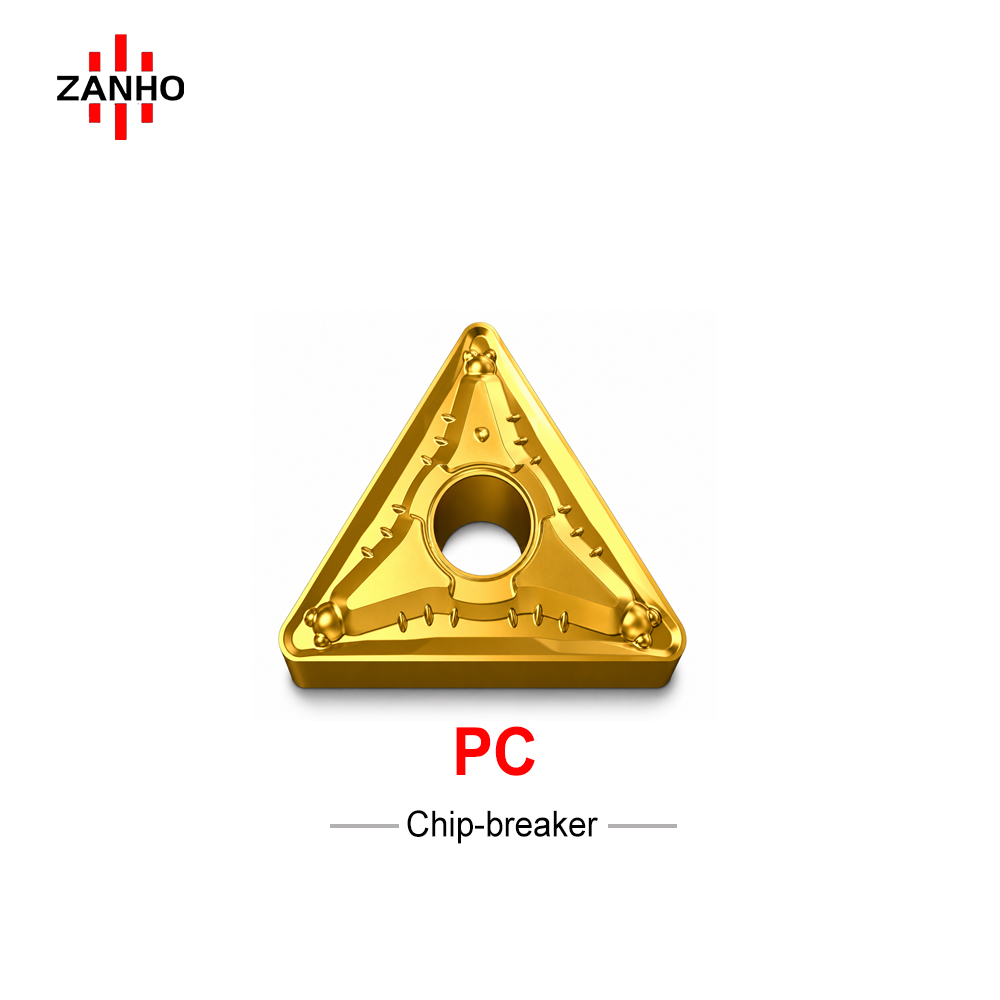

ZANHO TNMG1604-PC is a high-performance triangular negative turning insert specifically engineered for Medium Machining. Featuring the specialized PC chipbreaker, it delivers stable chip evacuation and high edge durability, ensuring reliable performance in both steel and stainless steel applications.
Categories:
Learn More
Download PDF
Description

ZANHO TNMG1604-PC is a high-performance triangular negative turning insert specifically engineered for Medium Machining. Featuring the specialized PC chipbreaker, it delivers stable chip evacuation and high edge durability, ensuring reliable performance in both steel and stainless steel applications.

Key Performance & Features

  • PC Chipbreaker: Specifically designed for Medium Machining, offering exceptional chip breaking control and reducing cutting resistance across various feed rates.
  • Stable Geometry: The negative triangular geometry provides 6 robust cutting edges, ensuring maximum cost-efficiency and high edge strength for reliable turning.
  • High Efficiency: Optimized for stable performance at cutting depths (ap) up to 4.5mm, significantly improving metal removal productivity.
  • Universal Application: Delivers consistent results in Steel (P) and Stainless Steel (M) machining with extended tool life and heat resistance.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
TNMG160404-PC 0.4 mm 0.15 - 0.40 1.0 - 3.5 mm
TNMG160408-PC 0.8 mm 0.15 - 0.50 0.5 - 4.5 mm
TNMG160412-PC 1.2 mm 0.15 - 0.50 0.5 - 4.5 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
