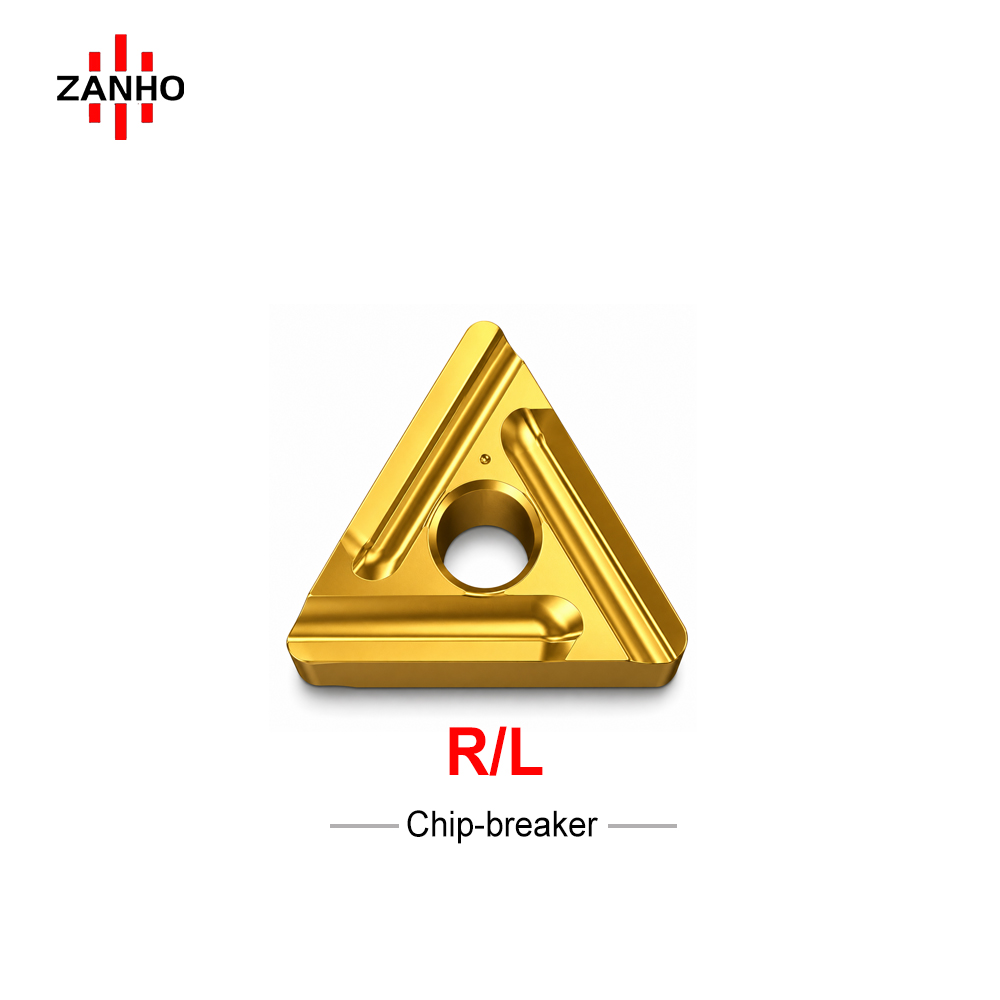

TNMG1604-R/L | Triangular Turning Insert for Medium Machining

ZANHO TNMG1604-S is a professional triangular negative turning insert specifically engineered for Medium Machining. Featuring the specialized S chipbreaker (modified from FS), it delivers excellent chip control and edge stability. Available in both Right-hand (R) and Left-hand (L) orientations to meet diverse CNC profiling requirements.

Categories: TNMG Inserts

Download PDF

Key Performance & Features

S Chipbreaker (Medium Machining): Optimized for stable chip evacuation at medium feed rates, preventing surface damage and ensuring process reliability.
R/L Orientation: Specifically designed for profiling operations with dedicated Right-hand and Left-hand geometries for precise cutting paths.
Negative Triangular Geometry: Provides high edge strength and multiple cutting edges, offering exceptional cost-efficiency in high-production turning.
Balanced Cutting Force: The S profile ensures smooth cutting action even in materials prone to work hardening like stainless steel.

Technical Specifications

Model	Hand	Feed (fn)	Cut Depth (ap)
TNMG160404L-S	Left (L)	0.15 - 0.30	0.8 - 3.0 mm
TNMG160404R-S	Right (R)	0.15 - 0.30	0.8 - 3.0 mm
TNMG160408L-S	Left (L)	0.20 - 0.40	1.0 - 3.5 mm
TNMG160408R-S	Right (R)	0.20 - 0.40	1.0 - 3.5 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
