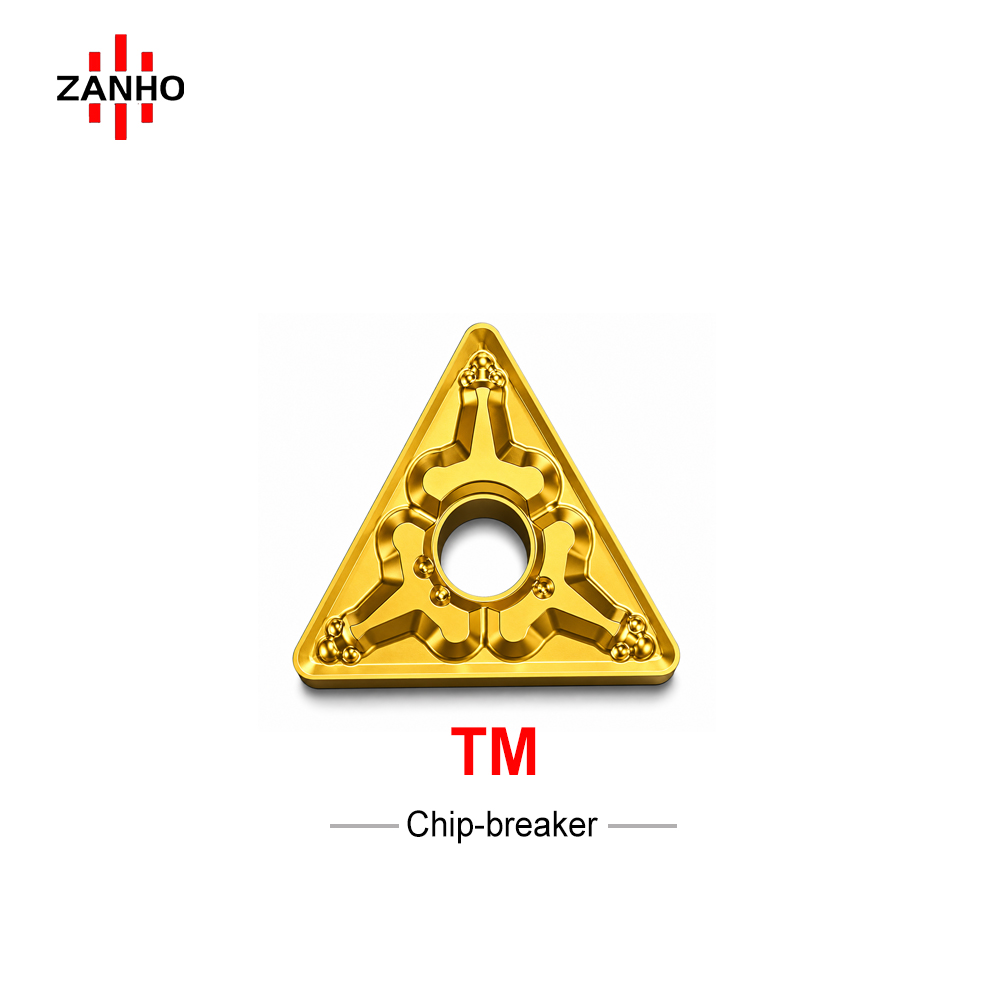

TNMG-TM

ZANHO TNMG1604-TM is a professional triangular negative turning insert specifically engineered for Medium Machining. Featuring the specialized TM chipbreaker, it delivers stable chip evacuation and high edge durability, ensuring reliable performance in both steel and stainless steel applications.
Categories:
Learn More
Download PDF
Description

ZANHO TNMG1604-TM is a professional triangular negative turning insert specifically engineered for Medium Machining. Featuring the specialized TM chipbreaker, it delivers stable chip evacuation and high edge durability, ensuring reliable performance in both steel and stainless steel applications.

Key Performance & Features

  • TM Chipbreaker: Optimized for medium machining tasks, offering a reinforced cutting edge for stable chip breaking and reduced vibration.
  • High Surface Integrity: Precision geometry reduces heat buildup and cutting resistance, delivering consistent surface quality in continuous turning.
  • Negative Triangular Design: Provides 6 robust cutting edges, ensuring maximum cost-efficiency and superior edge strength for heavy-duty CNC lathes.
  • Material Versatility: Highly effective for turning Steel (P) and Stainless Steel (M) with extended tool life and excellent wear resistance.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
TNMG160404-TM 0.4mm 0.20 - 0.50 0.5 - 5.0 mm
TNMG160408-TM 0.8 mm 0.20 - 0.50 0.5 - 5.0 mm
TNMG160412-TM 1.2 mm 0.20 - 0.50 0.5 - 5.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
