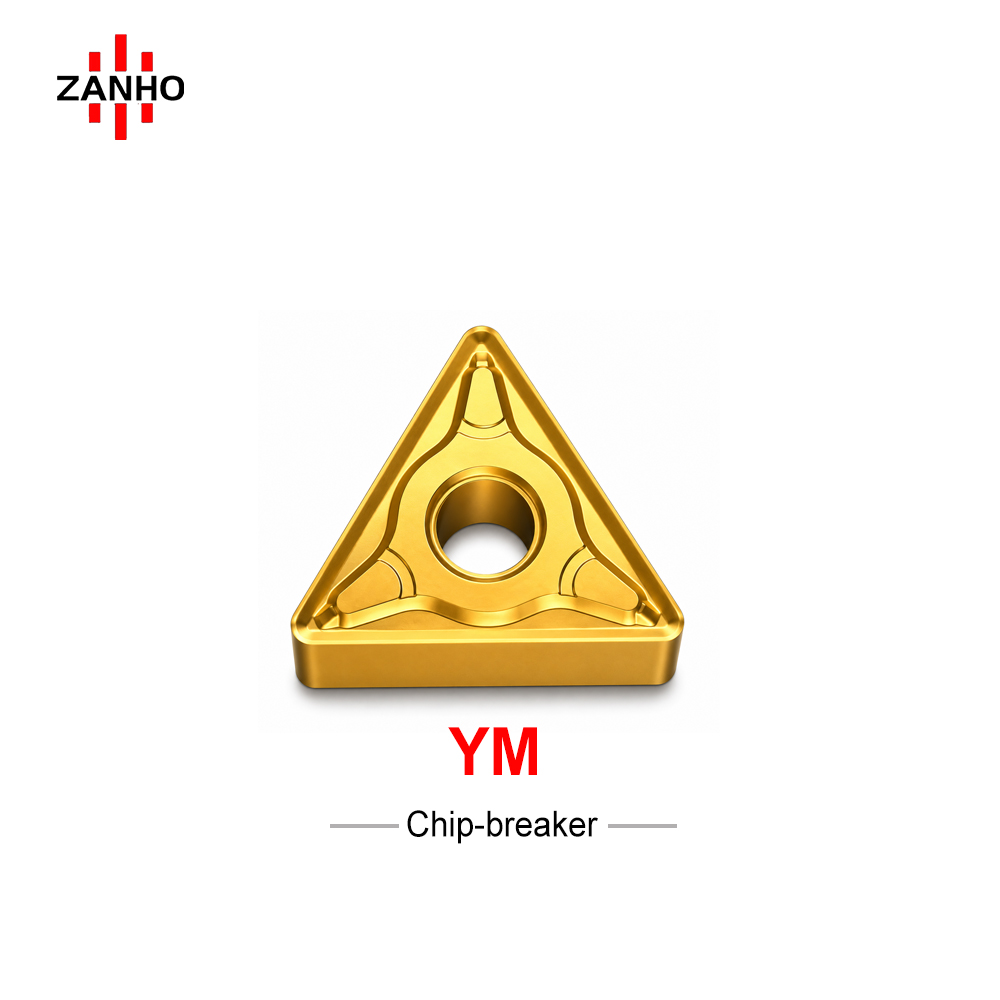

TNMG1604-YM | Triangular Turning Insert for Medium Machining

ZANHO TNMG1604-YM is a professional triangular negative turning insert specifically engineered for Medium Machining. Featuring the optimized YM chipbreaker (modified from MM), it delivers stable chip evacuation and high edge durability, ensuring reliable performance in both steel and stainless steel applications.

Categories: TNMG Inserts

Download PDF

Key Performance & Features

YM Chipbreaker: Specifically designed for Medium Machining, balancing cutting sharpness with high edge stability to prevent chipping in tough materials.
Stable Chip Evacuation: Features an optimized geometry that ensures consistent chip control across varying depths of cut, reducing heat buildup.
High Precision Geometry: The negative triangular design provides multiple cutting edges, delivering exceptional cost-efficiency for professional CNC turning.
Enhanced Durability: Advanced sub-micron carbide substrate with heat-resistant coating for extended tool life in Steel (P) and Stainless Steel (M).

Technical Specifications

Model	Radius (re)	Feed (fn)	Cut Depth (ap)
TNMG160402-YM	0.2 mm	0.10 - 0.30	0.8 - 3.5 mm
TNMG160404-YM	0.4 mm	0.10 - 0.30	0.8 - 3.5 mm
TNMG160408-YM	0.8 mm	0.12 - 0.35	1.0 - 3.5 mm
TNMG160412-YM	1.2 mm	0.15 - 0.35	1.5 - 3.5 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
