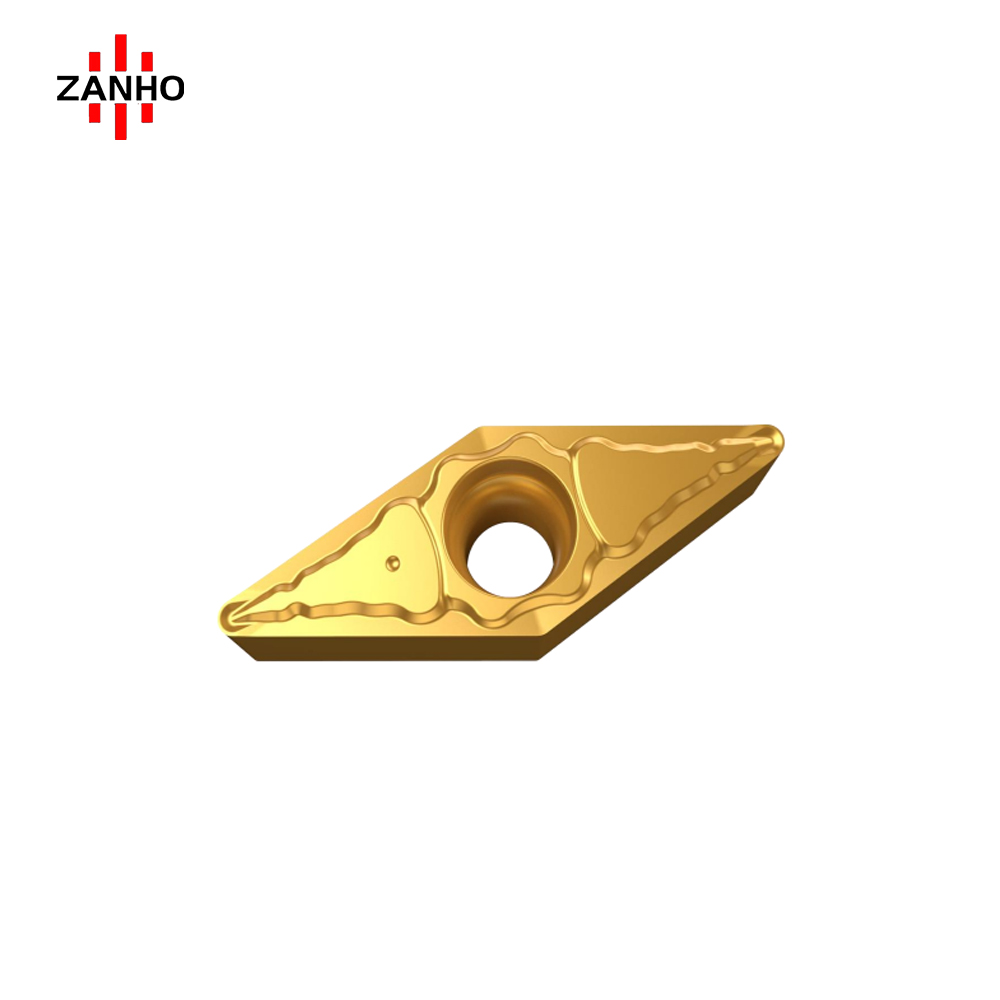

VBMT-PC

  • Turning Specialist: Engineered as a 35° Rhombic Positive Insert for specialized profiling and versatile turning operations.

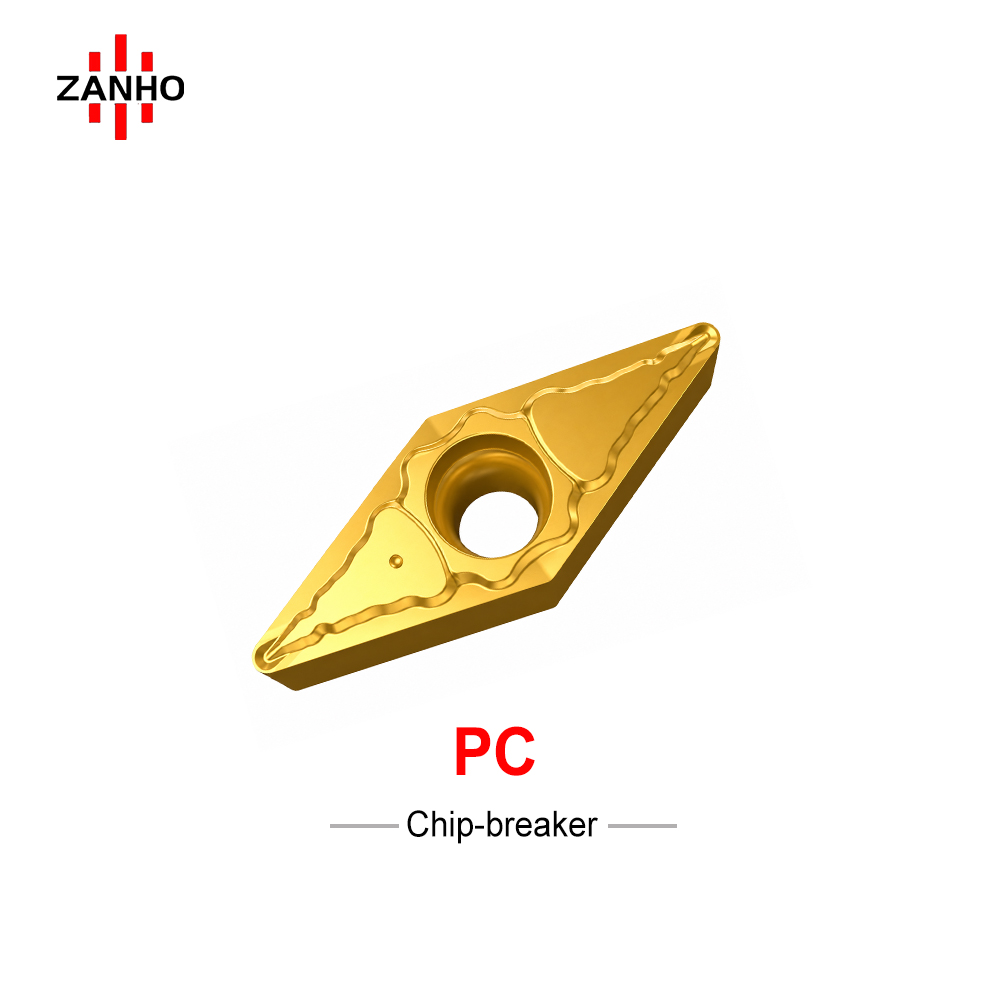

  • PC Chipbreaker Design: Features the innovative PC Profile, optimized for stable chip breaking and reduced cutting forces during Medium Machining (Semi-finishing) stages.
  • Exceptional Surface Finish: Precision-ground edges deliver high dimensional accuracy and superior surface integrity on the workpiece.
  • Precise Radius Options: Available in VBMT160404 (R0.4), VBMT160408 (R0.8), and VBMT160412 (R1.2) to meet diverse CNC machining requirements.
  • Durable Substrate: Made from premium tungsten carbide with advanced CVD/PVD coating for maximum heat and wear resistance.
Categories: ,
Learn More
Download PDF
Description
  • Turning Specialist: Engineered as a 35° Rhombic Positive Insert for specialized profiling and versatile turning operations.
  • PC Chipbreaker Design: Features the innovative PC Profile, optimized for stable chip breaking and reduced cutting forces during Medium Machining (Semi-finishing) stages.
  • Exceptional Surface Finish: Precision-ground edges deliver high dimensional accuracy and superior surface integrity on the workpiece.
  • Precise Radius Options: Available in VBMT160404 (R0.4), VBMT160408 (R0.8), and VBMT160412 (R1.2) to meet diverse CNC machining requirements.
  • Durable Substrate: Made from premium tungsten carbide with advanced CVD/PVD coating for maximum heat and wear resistance.
VBMT-PC — PRODUCT INFORMATION & TECHNICAL DATA
Product Series VBMT-PC Insert Shape 35° Diamond Relief Angle 5° Positive
Chipbreaker PC Application Medium Machining Insert Type Positive Turning Insert
MODEL & DIMENSIONS
Model IC (mm) S (mm) RE (mm) Feed f (mm/rev) ap (mm)
VBMT160404-PC 9.52 4.76 0.4 0.07–0.22 0.5–2.8
VBMT160408-PC 9.52 4.76 0.8 0.10–0.27 0.5–2.8
VBMT160412-PC 9.52 4.76 1.2 0.10–0.28 0.5–2.8
WORKPIECE MATERIAL & RECOMMENDED GRADES
Steel / ISO P TC4025 Stainless Steel / ISO M TP5355 Cast Iron / ISO K
Heat Resistant Alloy / ISO S Non-Ferrous Material / ISO N
