VBMT-PF

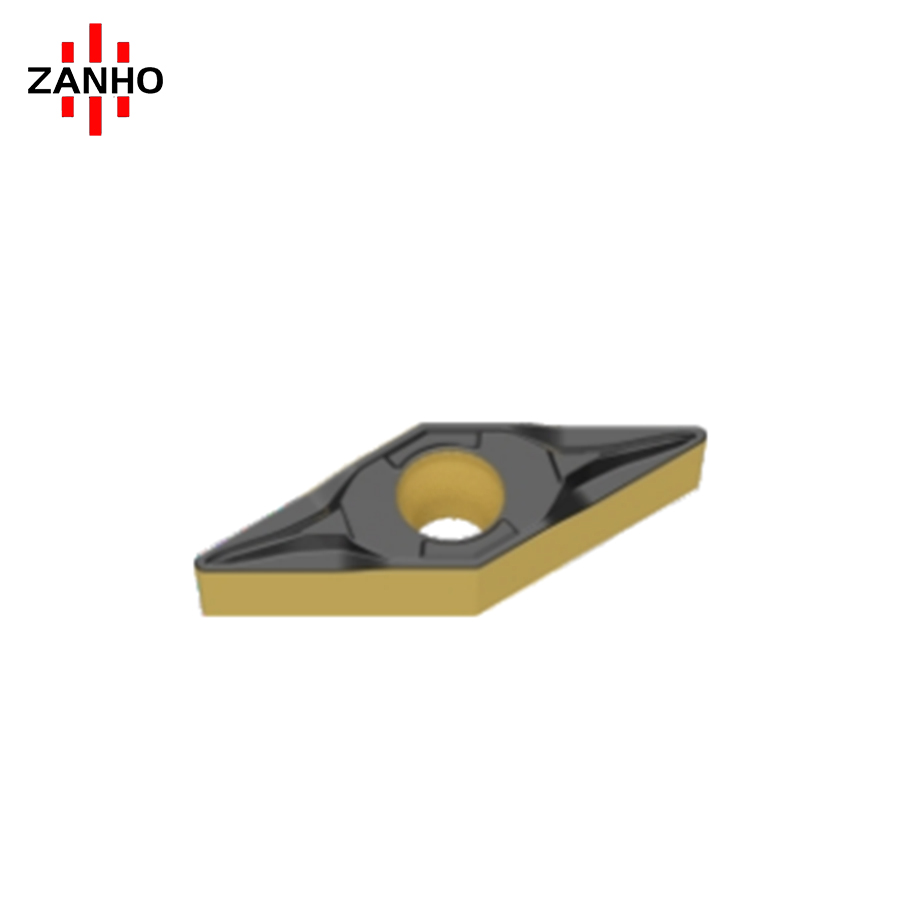

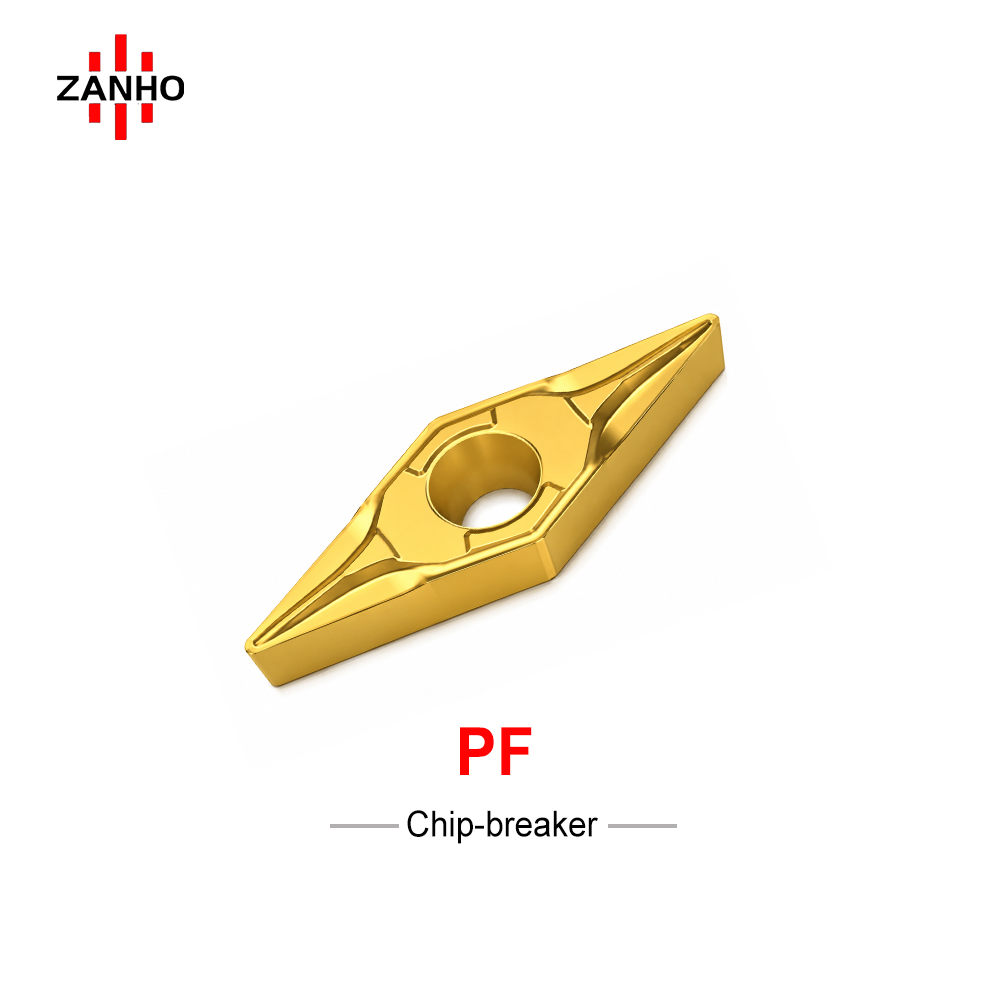

ZANHO VBMT160404-PF is a high-precision 35° rhombic positive turning insert specifically engineered for Steel Finishing. Featuring the advanced PF chipbreaker, it provides industry-leading chip control and light cutting geometry, making it the ideal solution for machining slender shafts, thin-walled components, and unstably clamped parts where superior surface quality is a priority.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Steel Finishing Expert: Specifically optimized for finishing operations in steel, delivering better chip control than standard geometries for high-precision results.
  • Light Cutting Geometry: Engineered with low cutting forces to prevent deflection, making it perfect for machining slender shafts and delicate thin-walled parts.
  • Versatile Operations: Highly efficient for longitudinal cutting, facing, back-turning, and complex profiling tasks.
  • Superior Surface Finish: Precision-ground edges prioritize surface integrity, ideal for high-spec components like axles and gear blanks.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
VBMT160404-PF 0.4 mm 0.07 - 0.5 mm/r 0.15 - 1.5 mm

Maximize Your Production Efficiency

This chipbreaker matches perfectly with our wear-resistant grades for optimal performance. Contact us to find the best grade for your specific steel hardness.
