VBMT-TM1

Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Specialist: Optimized for semi-roughing to medium finishing applications, ensuring continuous productivity in general CNC turning.

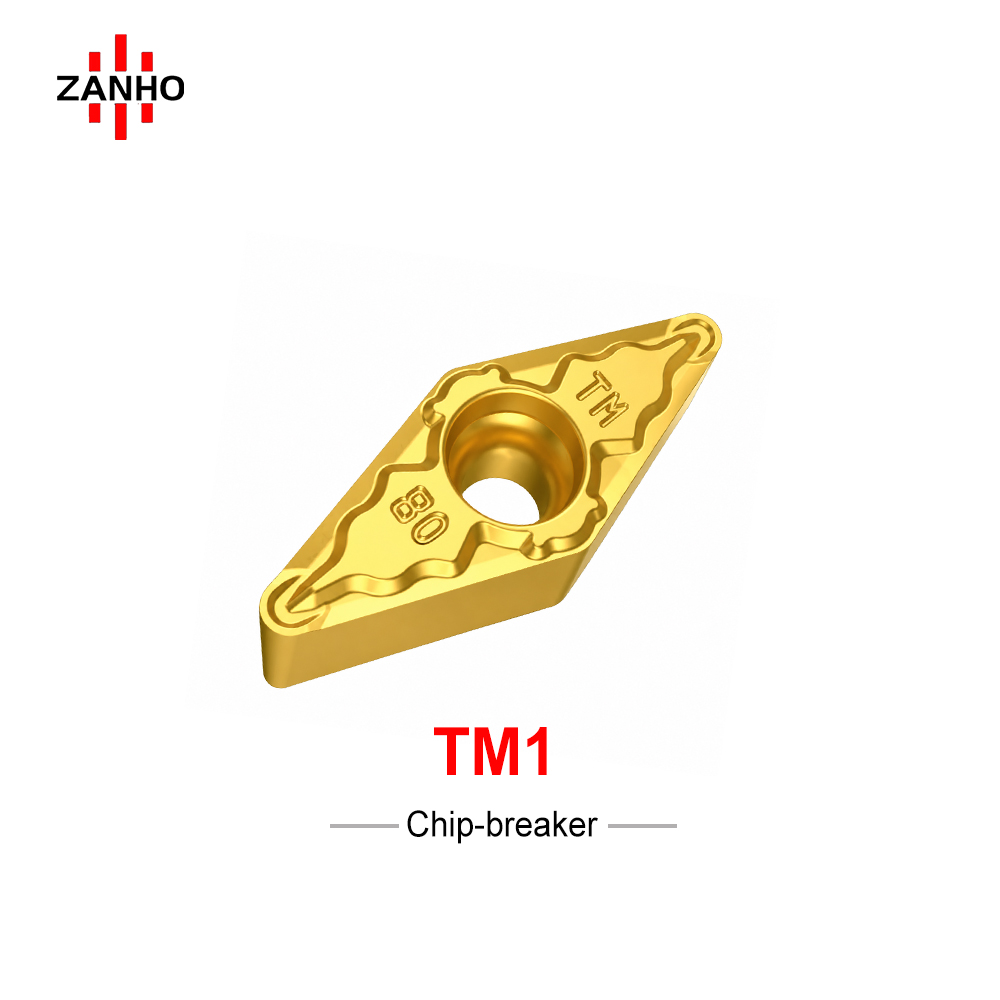

  • TM1 Chipbreaker Geometry: Specifically engineered for stable chip breaking at medium feed rates, effectively preventing chip nesting and surface damage.
  • Rhombic Stability: The VBMT 35-degree rhombic design provides excellent clearance for complex profiling, multi-directional turning, and reaching narrow workpiece sections.
  • Stable Cutting Edge: Precision-ground edges enhance surface finish and machining reliability, ideal for maintaining consistent quality in long-running turning cycles.

Technical Specifications

Model Radius (re) Feed (f) Cut Depth (ap)
VBMT110304-TM1 0.4 mm 0.08 - 0.20 mm/r 0.5 - 1.5 mm
VBMT110308-TM1 0.8 mm 0.10 - 0.20 mm/r 0.5 - 1.5 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade and coating based on your specific material hardness and workpiece complexity.
