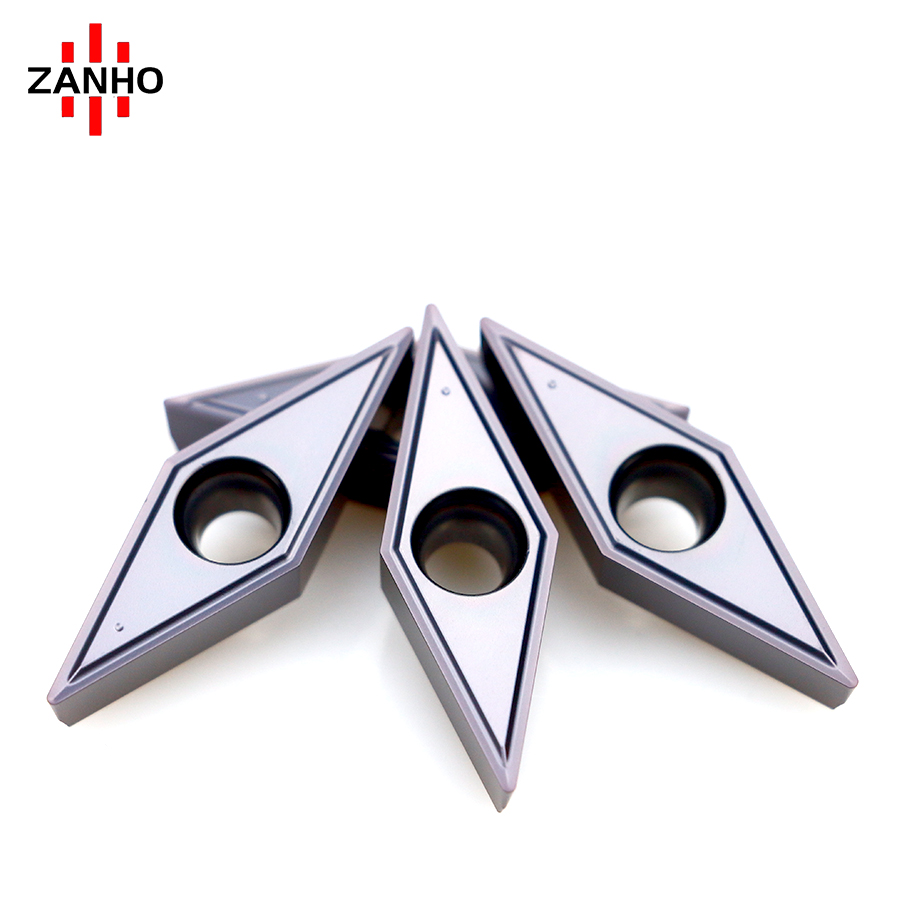

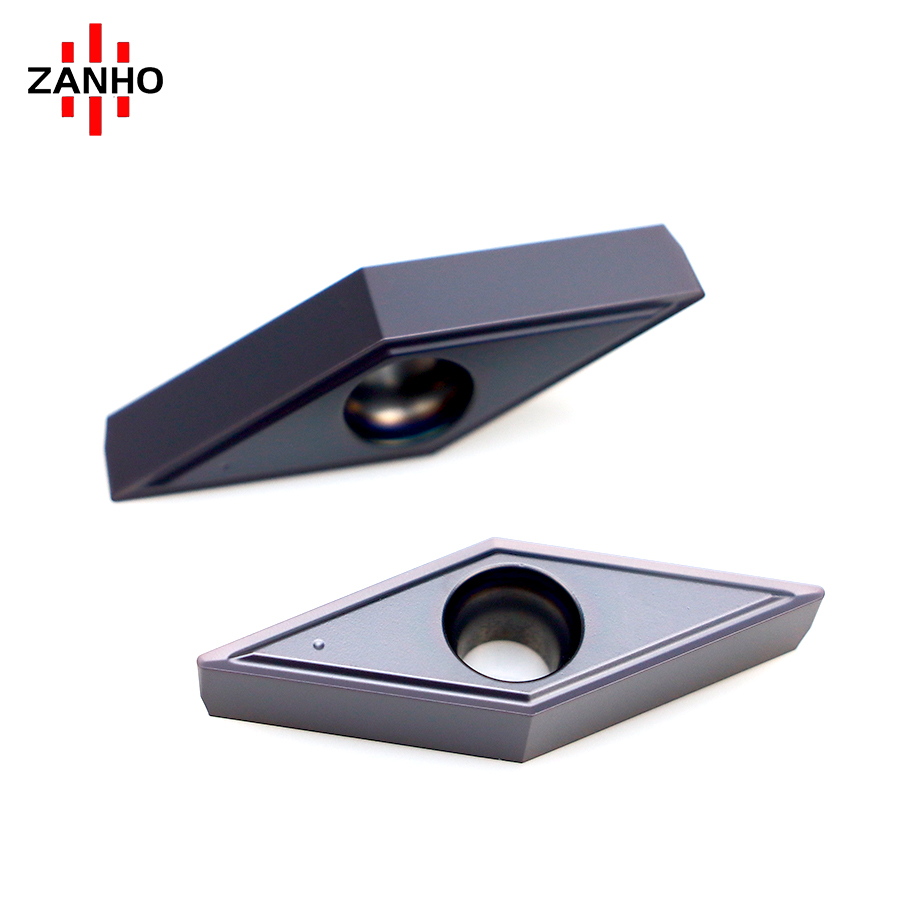

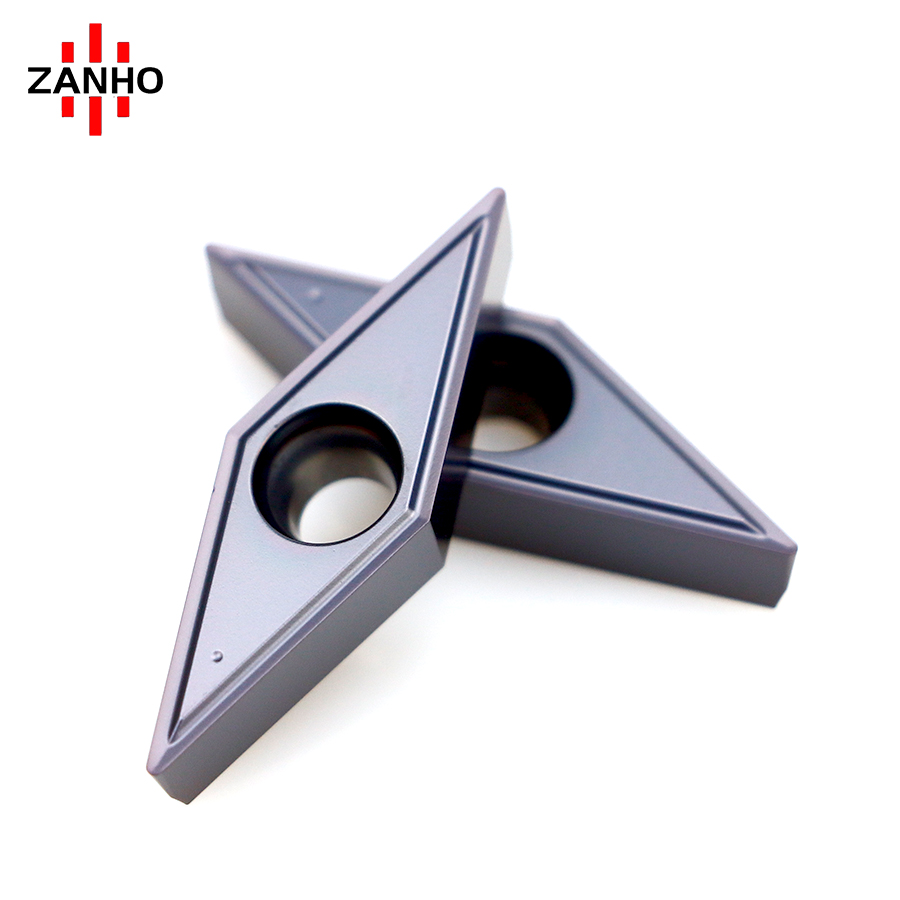

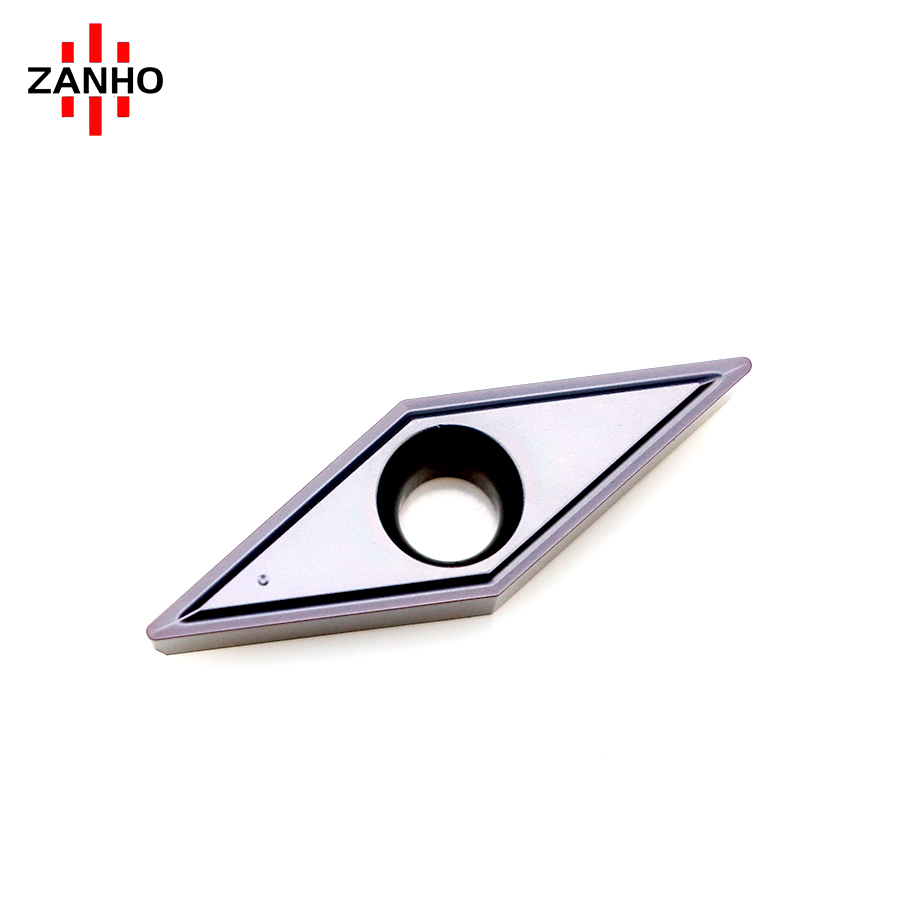

VBMT1103/VBMT1604-ZLF | Universal Medium Turning Carbide Insert

ZANHO VBMT-ZLF series is a high-versatility 35° rhombic positive turning insert engineered for Medium Machining across multiple material groups. It is exceptionally well-suited for most Steel, Stainless Steel, Cast Iron, Non-ferrous alloys, and High-temperature alloys. Featuring the specialized ZLF chipbreaker, it also delivers outstanding performance in hardened and short-chip materials, providing a truly universal solution for stable profiling and general turning.

Categories: VBMT Inserts

Download PDF

Key Performance & Features

Universal Application: Expertly designed for a vast range of materials, including Steel, Stainless Steel, Cast Iron, Non-ferrous, and High-temperature alloys.

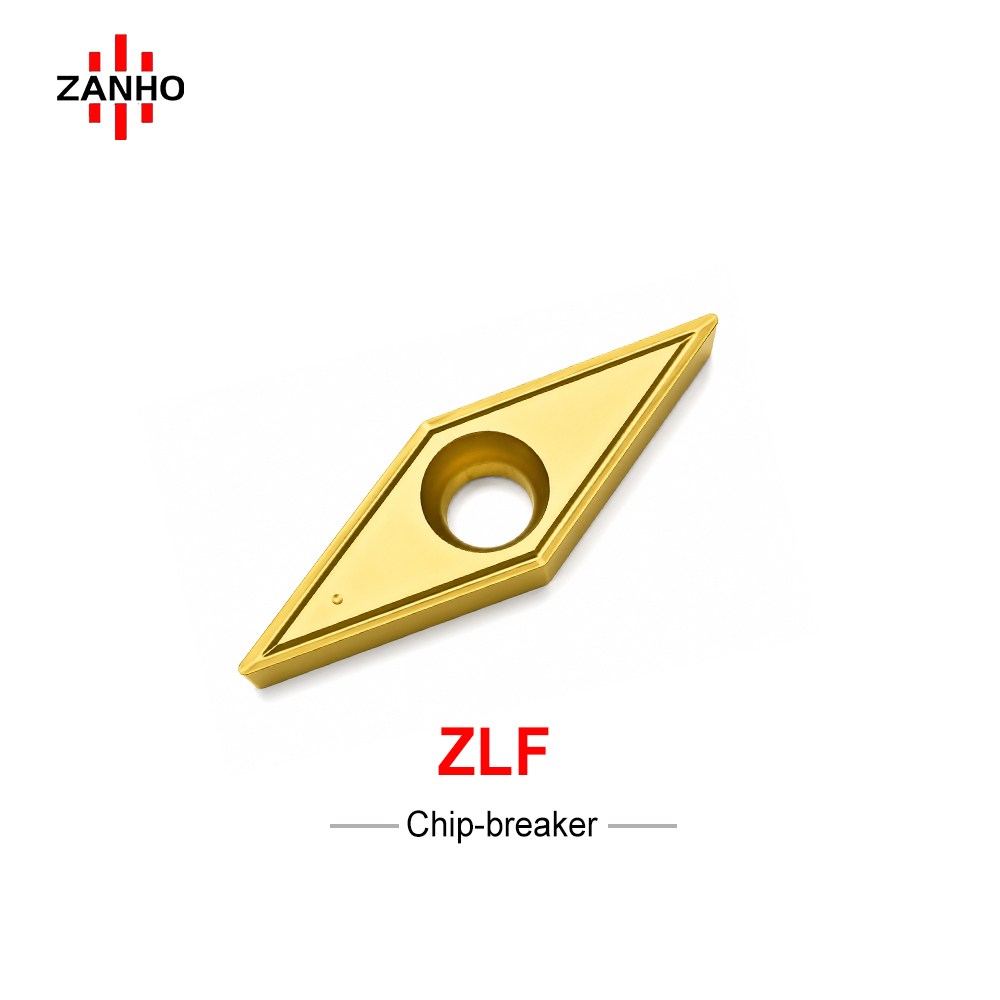

ZLF Chipbreaker Geometry: Optimized for stable chip control and low cutting resistance, even when processing hardened or short-chip materials.
Rhombic Clearance: The 35-degree positive geometry provides excellent clearance for complex profiling, multi-directional turning, and reaching narrow workpiece sections.
Superior Finish: Precision-ground edges enhance surface integrity and tool life, maintaining tight tolerances across diverse machining environments.

Technical Specifications

Model	Radius (re)	Feed (f)	Cut Depth (ap)
VBMT110302-ZLF	0.2 mm	0.05 - 0.25 mm/r	0.15 - 2.0 mm
VBMT110304-ZLF	0.4 mm	0.05 - 0.25 mm/r	0.15 - 2.0 mm
VBMT160402-ZLF	0.2 mm	0.05 - 0.25 mm/r	0.15 - 2.0 mm
VBMT160404-ZLF	0.4 mm	0.05 - 0.25 mm/r	0.15 - 2.0 mm
VBMT160408-ZLF	0.8 mm	0.05 - 0.25 mm/r	0.15 - 2.0 mm

Universal Solution for Complex Machining

Ideal for multi-material workshops. Our sales team can recommend the optimal grade and coating based on your primary workpiece material.
