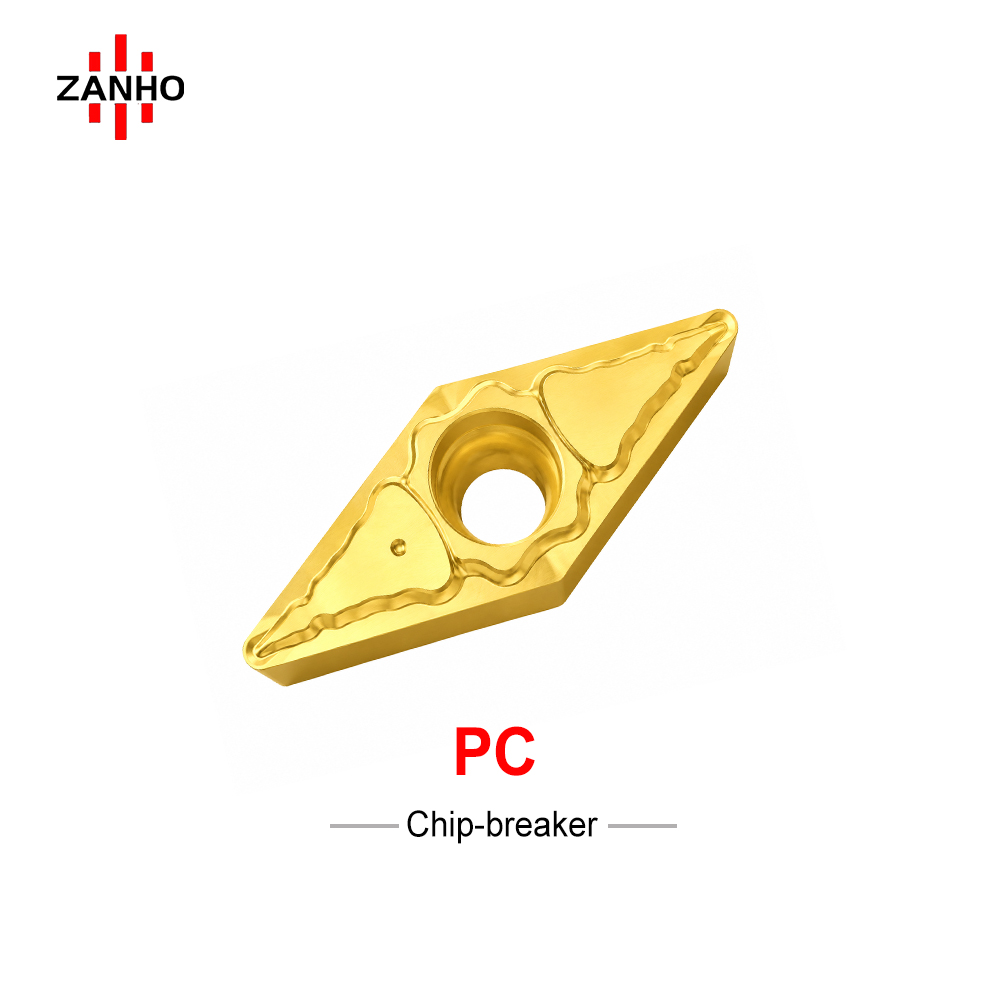

VCMT-PC

ZANHO VCMT1103/1604-PC series is a premium 35° rhombic positive turning insert specifically designed for Medium Machining. Featuring a high-clearance positive geometry and the specialized PC chipbreaker, it delivers stable chip control and significantly reduces cutting forces, making it ideal for precision turning and profiling of steel and stainless steel components.

Categories: VCMT Inserts

Download PDF

Key Performance & Features

Medium Machining Specialist: Optimized for medium turning and finishing operations, providing a perfect balance between sharp cutting action and edge durability.
PC Chipbreaker Geometry: Specifically engineered for stable chip evacuation at low to medium feed rates, effectively preventing surface scratching and chip accumulation.
Rhombic Positive Design: The 35-degree positive geometry offers outstanding clearance, making it perfect for intricate profiling and reaching narrow workpiece sections.
Reduced Cutting Forces: Precision-ground edges minimize vibration and heat buildup, maintaining tight tolerances in long-running turning tasks.

Technical Specifications

Model	Radius (re)	Feed (fn)	Cut Depth (ap)
VCMT110304-PC	0.4 mm	0.05 - 0.20	0.1 - 1.7 mm
VCMT110308-PC	0.8 mm	0.05 - 0.20	0.1 - 1.7 mm
VCMT160404-PC	0.4 mm	0.05 - 0.20	0.3 - 2.0 mm
VCMT160408-PC	0.8 mm	0.07 - 0.20	0.3 - 2.0 mm

Looking for Precision Solutions?

Our sales team can recommend the optimal grade and coating based on your specific material hardness and workpiece requirements.
