VNMG-PF

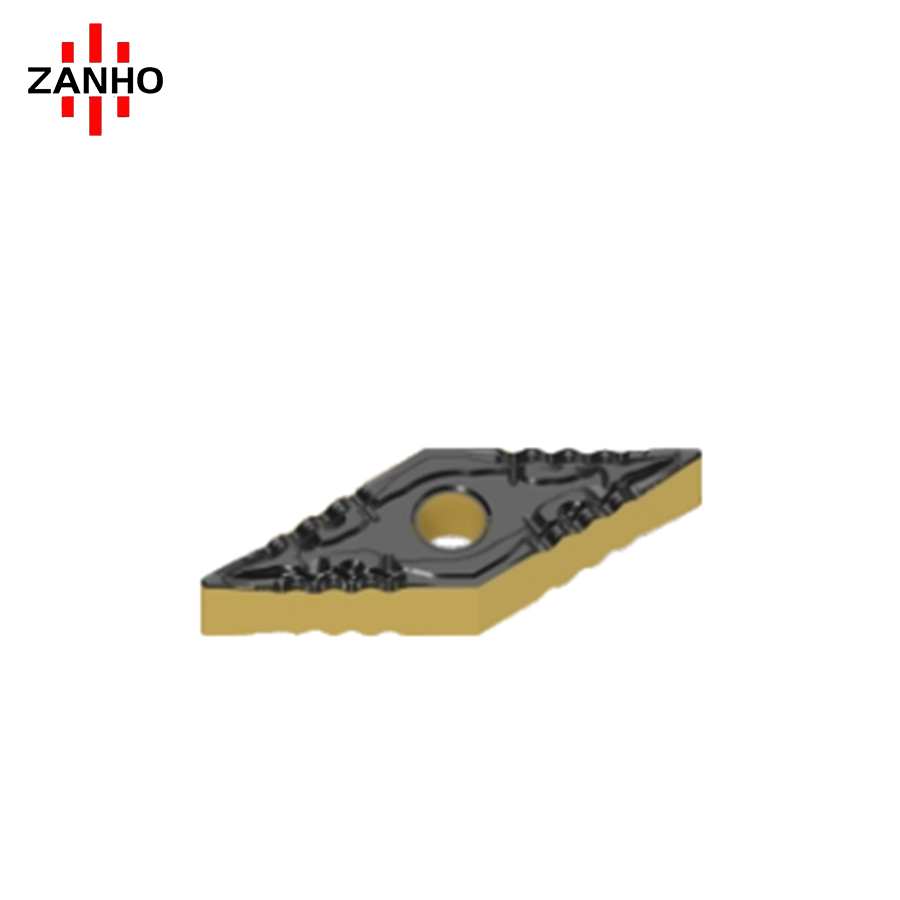

ZANHO VNMG160404-PF is a high-precision 35° rhombic negative turning insert specifically designed for High-Precision Finishing. Featuring the specialized PF chipbreaker, it delivers exceptional surface integrity and stable chip control at light depths, making it ideal for the final machining stages of steel and stainless steel components.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Finishing Specialist: Engineered specifically for high-precision finishing operations, delivering superior surface integrity and dimensional accuracy in professional CNC machining.

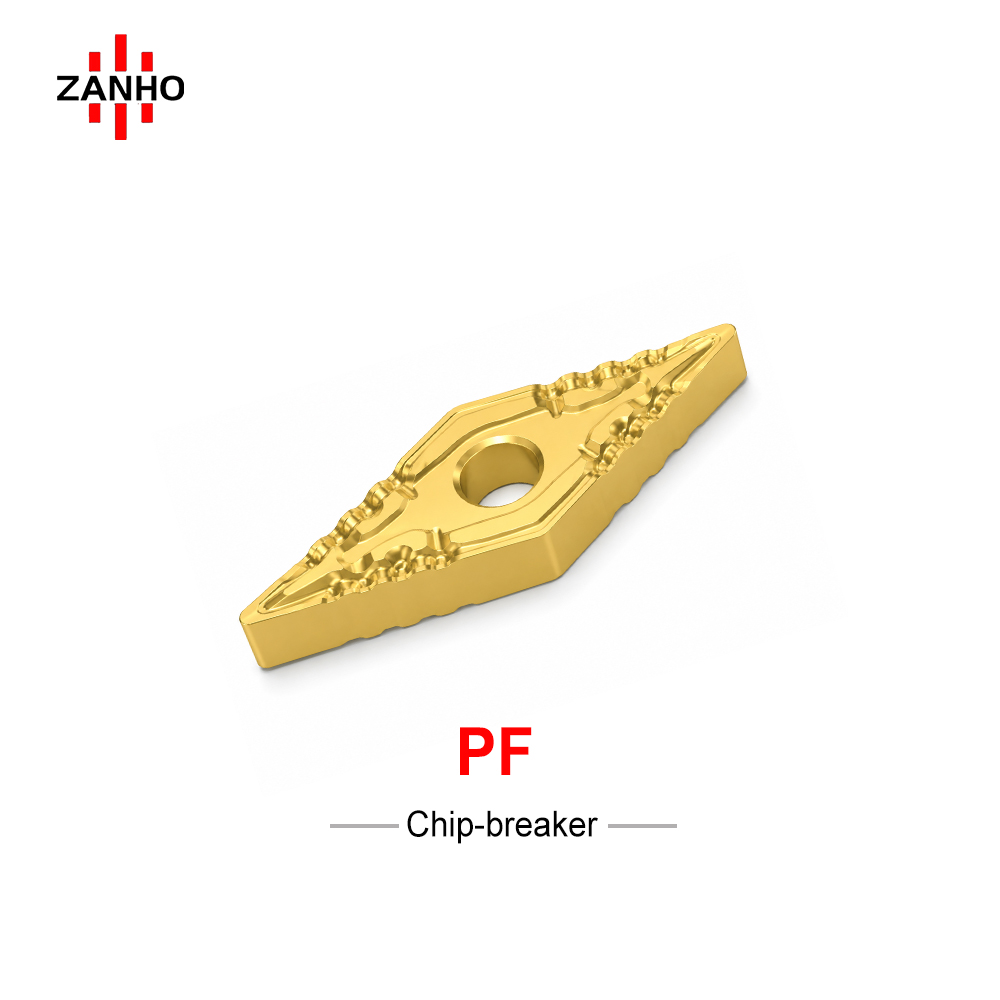

  • PF Chipbreaker Geometry: Optimized for light cutting depths and low feed rates, ensuring excellent chip breaking and preventing surface marring from long chips.
  • Rhombic Clearance: The VNMG 35-degree rhombic design provides excellent clearance for complex profiling and intricate finishing tasks.
  • Smooth Cutting: Precision-ground edges reduce cutting resistance and heat buildup, ideal for maintaining tight tolerances even in long-running finishing cycles.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
VNMG160404-PF 0.4 mm - -

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade and coating based on your workpiece material and final surface requirements.
