VNMG-PM

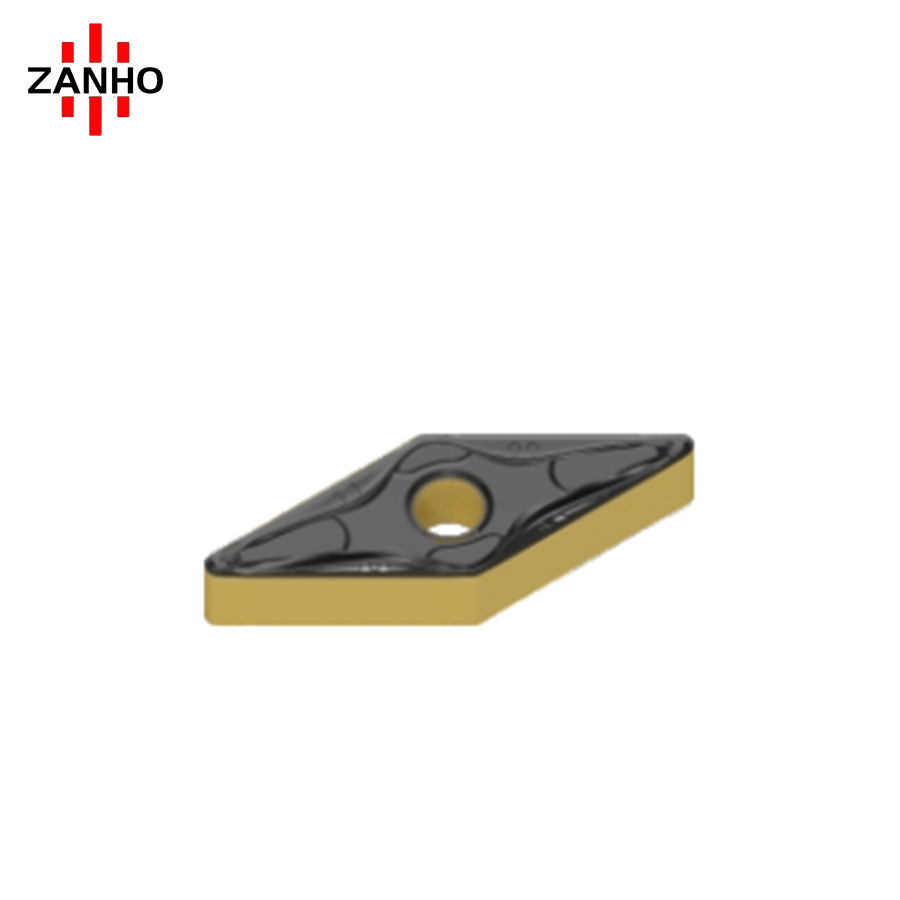

ZANHO VNMG1604-PM series is a professional 35° rhombic negative turning insert designed for Semi-finishing Steel Machining. Featuring the industry-inspired PM chipbreaker, it provides an excellent balance of edge toughness and chip control, making it ideal for stable profiling and general turning of various steel grades.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Semi-finishing Specialist: Optimized for medium cutting ranges, providing consistent performance from light roughing to final semi-finishing stages.

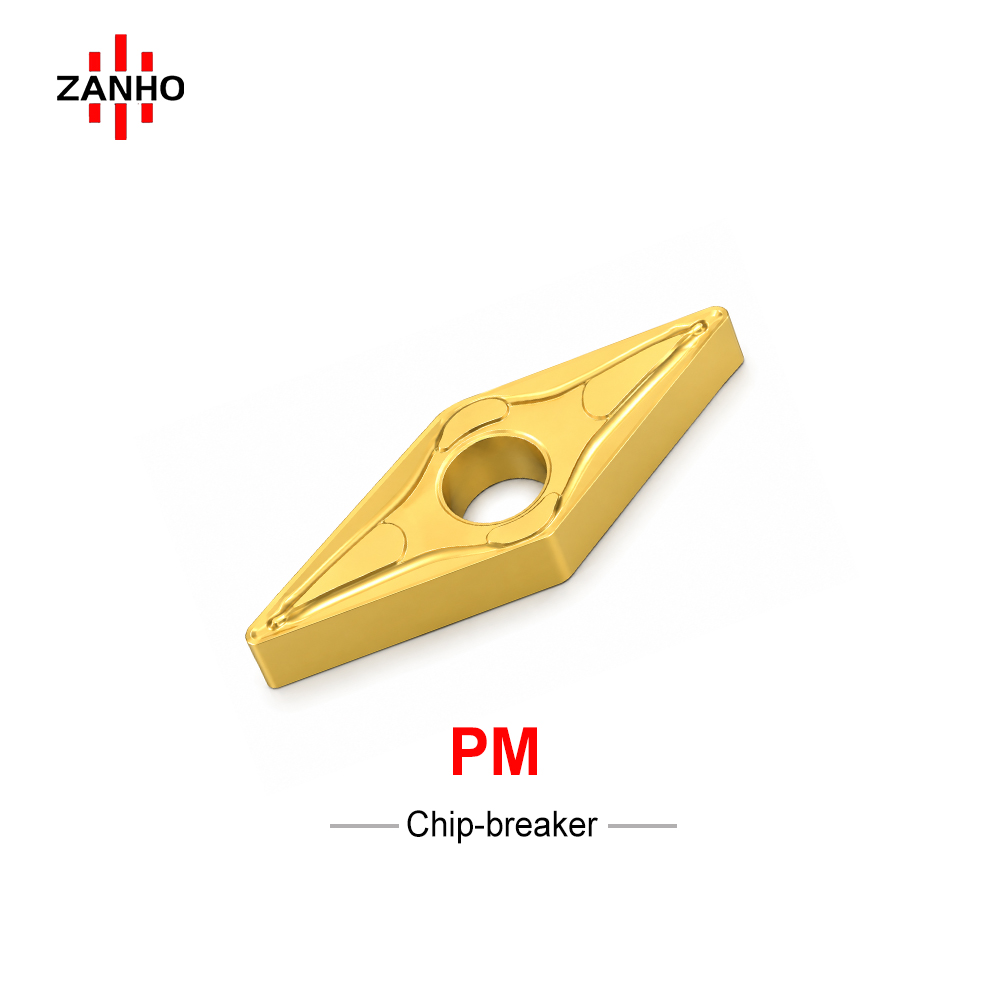

  • PM Chipbreaker (Sandvik Style): Engineered with a specialized rake angle to ensure smooth chip evacuation and reduced vibration, especially effective in Steel (P-group) machining.
  • Rhombic Geometry: The 35-degree VNMG design offers exceptional clearance for complex profiling, multi-directional turning, and reaching narrow workpiece sections.
  • High Edge Integrity: Reinforced cutting edge design minimizes thermal stress and micro-chipping, extending tool life during high-speed continuous turning.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
VNMG160404-PM 0.4 mm 0.10 - 0.35 mm/r 0.5 - 4.0 mm
VNMG160408-PM 0.8 mm 0.15 - 0.50 mm/r 0.8 - 4.5 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade and coating based on your specific steel hardness and workpiece complexity.
