VNMG-TF1

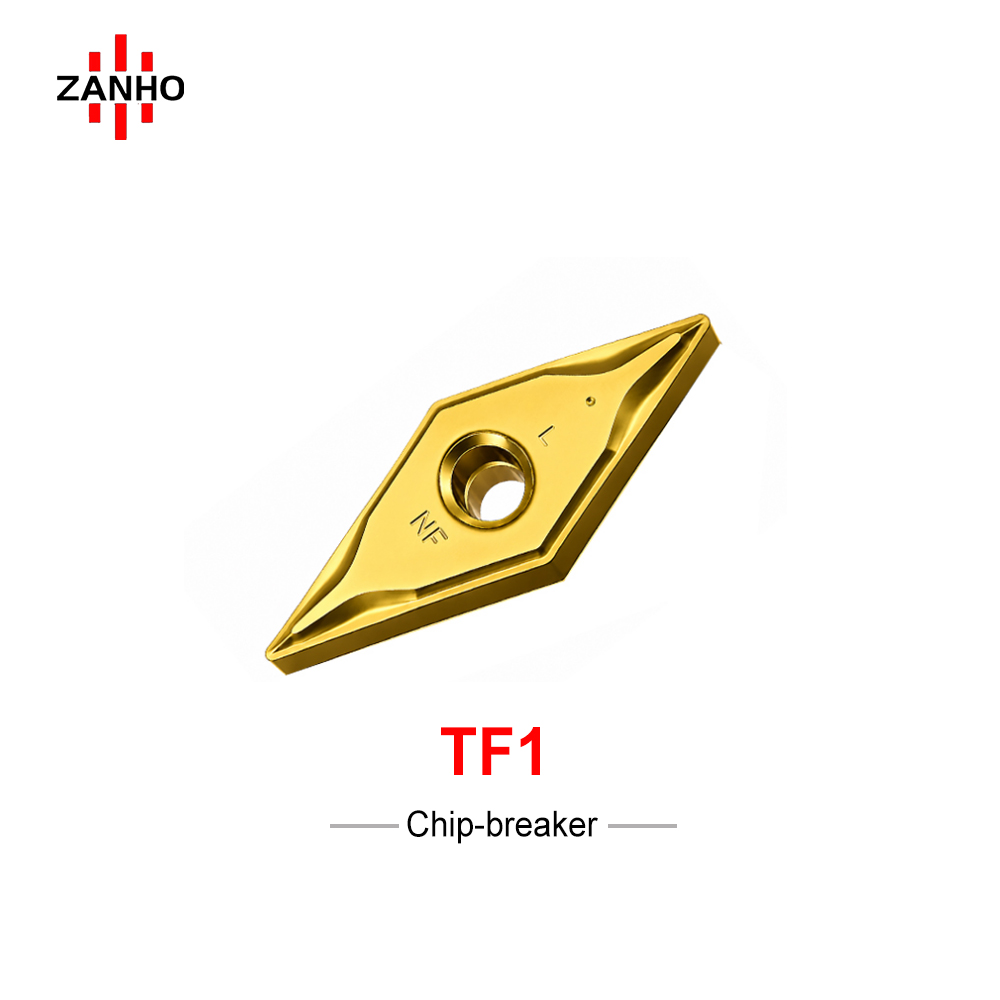

ZANHO VNMG1604-TF1series is a professional 35° rhombic negative turning insert specifically designed for Medium Machining. Featuring the specialized TF1 chipbreaker, it delivers stable cutting performance and consistent chip evacuation at medium feed rates, making it ideal for the versatile turning of steel and alloy components with superior stability.
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Excellence: Optimized for semi-roughing to medium finishing applications, ensuring continuous productivity in general CNC turning.
  • TF1 Chipbreaker Geometry: Specifically engineered for stable chip breaking at medium feed rates, effectively preventing chip nesting and surface damage.
  • Rhombic Stability: The VNMG 35-degree rhombic design provides excellent clearance for complex profiling, multi-directional turning, and reaching narrow workpiece sections.
  • Strong Cutting Edge: Enhanced edge toughness allows for stable machining even in slightly interrupted cuts or with varying depths of cut.

Technical Specifications

Model Radius (re) Feed (f) Cut Depth (ap)
VNMG160404-TF1 0.4 mm 0.15 - 0.3 mm/r 1.0 - 4.0 mm
VNMG160408-TF1 0.8 mm 0.15 - 0.3 mm/r 1.0 - 4.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade and coating based on your specific material hardness and workpiece complexity.
