VNMG-YM

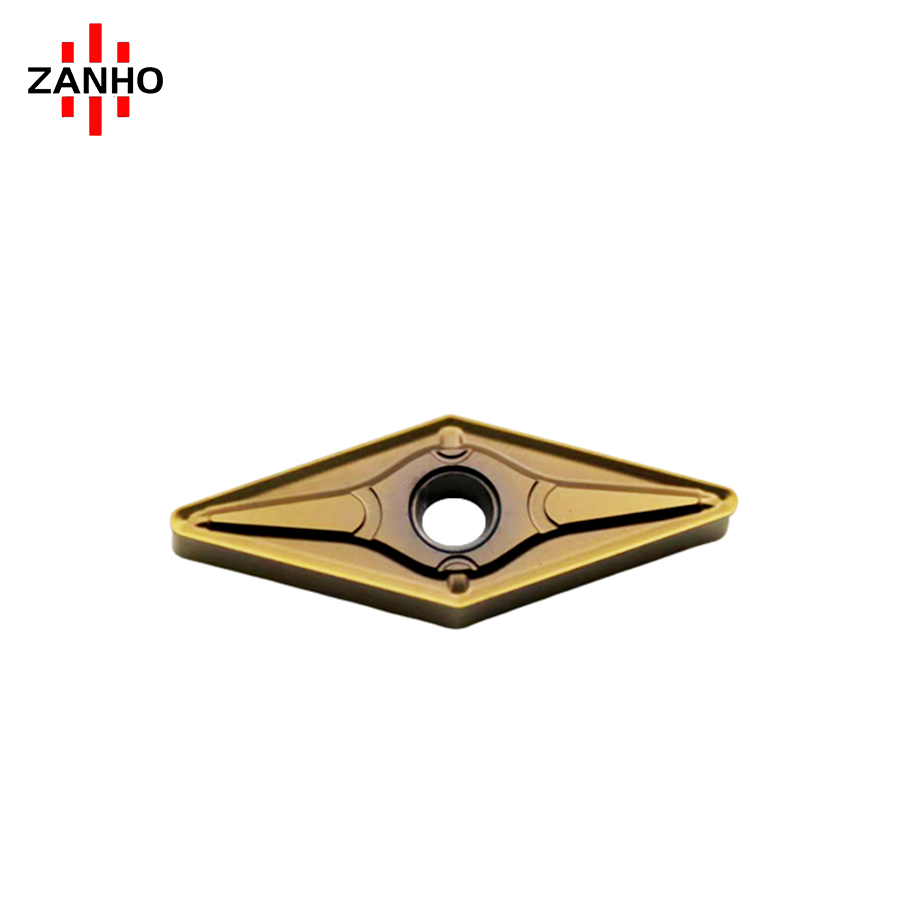

ZANHO VNMG1604-YM is a high-performance 35° rhombic negative turning insert engineered for Semi-finishing to Roughing. Featuring an advanced Dual Rake Angle design , it provides the perfect balance between cutting sharpness and edge strength. The Raised Chipbreaker structure and Large Side Grooves ensure exceptional chip control and ample space for chip evacuation, preventing clogging during heavy-duty turning.
Categories:
Learn More
Download PDF
Description

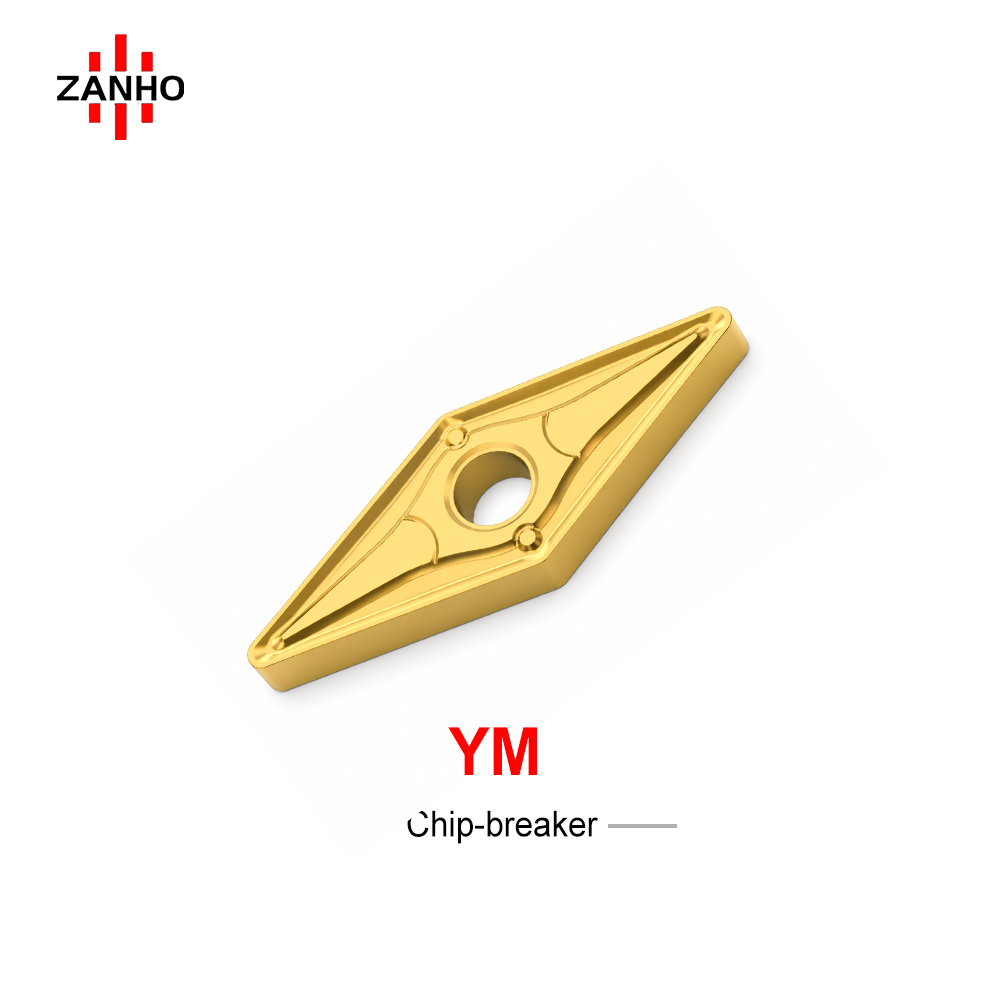

Advanced YM Chipbreaker Design

  • Dual Rake Angle Structure: Combines sharp cutting action with high edge durability  to handle both light and heavy loads.
  • Raised Chipbreaking Geometry: Specially designed protrusions facilitate stable chip breaking across a wide range of feed rates and cutting depths.
  • Large Capacity Side Grooves: Provides significant space for chip storage and evacuation, effectively preventing chip accumulation and surface marring.
  • Enhanced Edge Strength: The 0.2mm edge land design provides superior resistance against chipping during interrupted cuts or roughing applications.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
VNMG160404-YM 0.4 mm 0.2 - 0.5 mm/r 0.3 - 4.0 mm
VNMG160408-YM 0.8 mm 0.2 - 0.5 mm/r 0.3 - 4.0 mm

Optimized for High-Volume Metal Removal

Ideal for general steel and cast iron turning where high stability and efficient chip evacuation are required. Contact us for the best grade recommendations.
