VNMG-EP

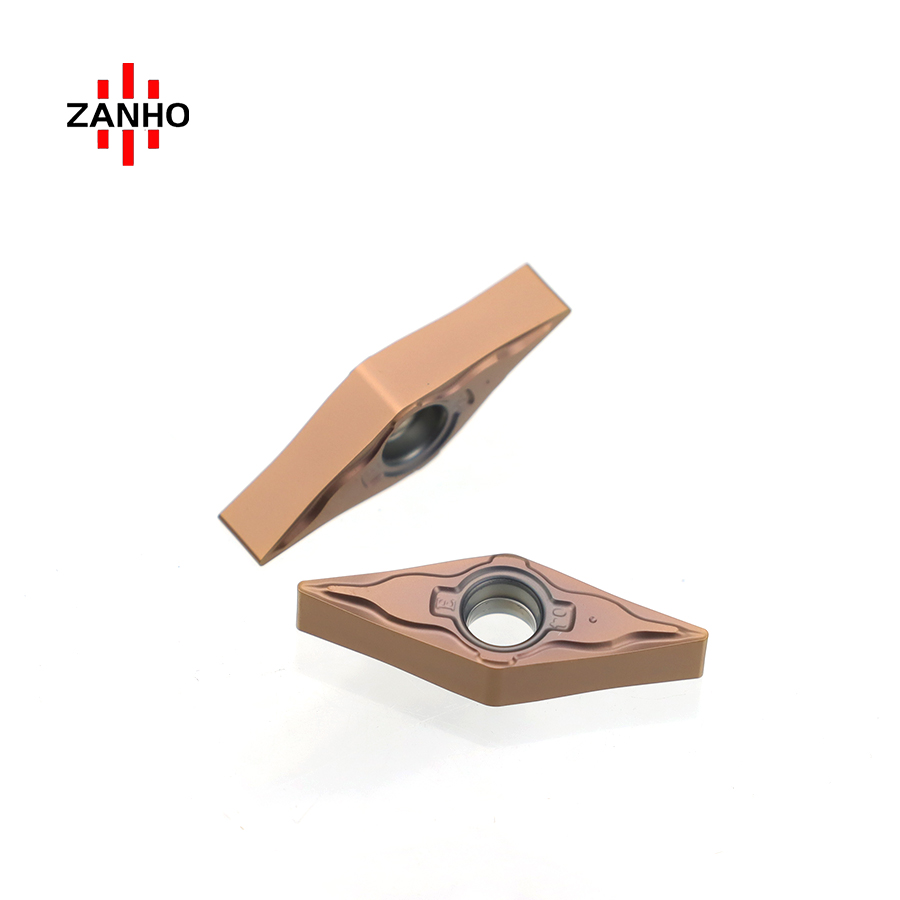

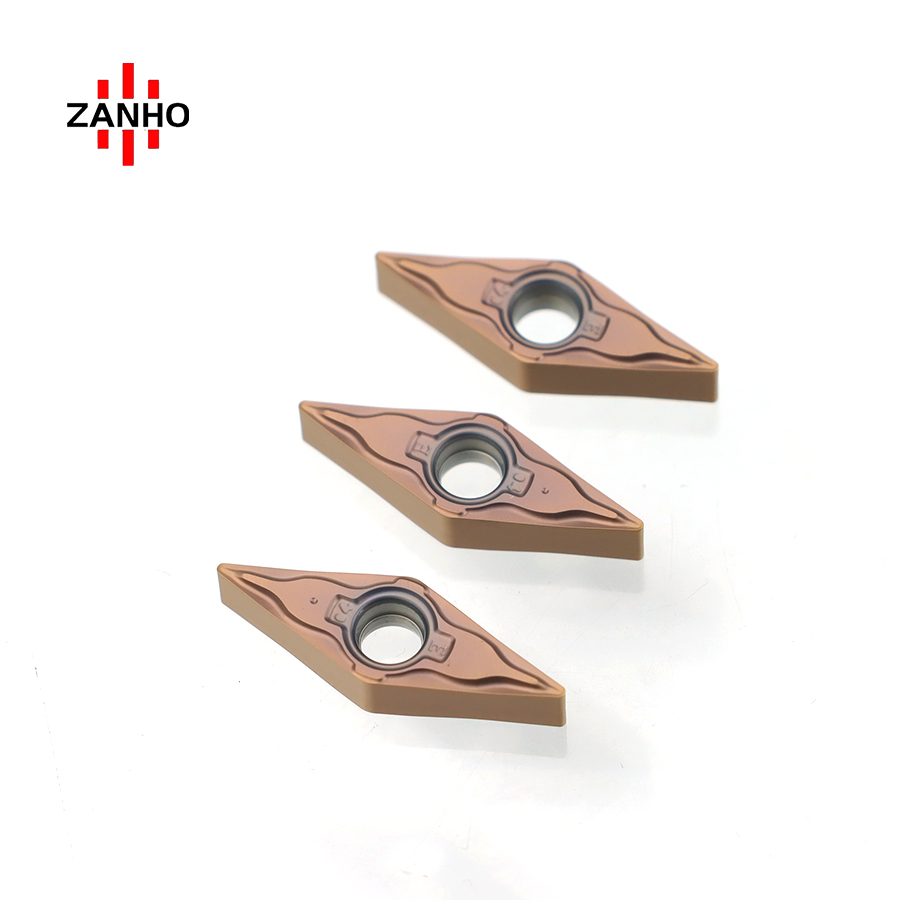

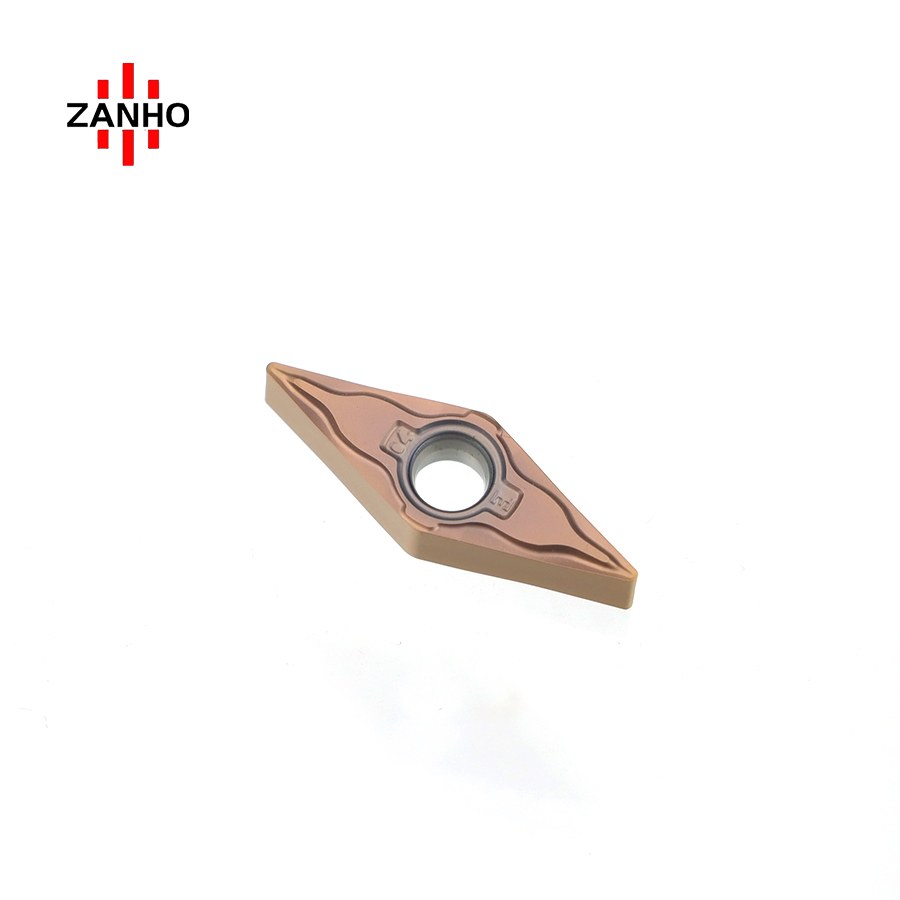

ZANHO VNMG12T3-EP series is a professional 35° rhombic negative turning insert specifically designed for Medium Machining. Featuring the specialized EP chipbreaker, it delivers reliable chip evacuation and excellent edge durability, making it ideal for the versatile turning of steel and alloy components with superior stability.

Categories: VNMG Inserts

Key Performance & Features

Medium Machining Excellence: Optimized for semi-roughing to medium finishing applications, ensuring continuous productivity in general CNC turning.

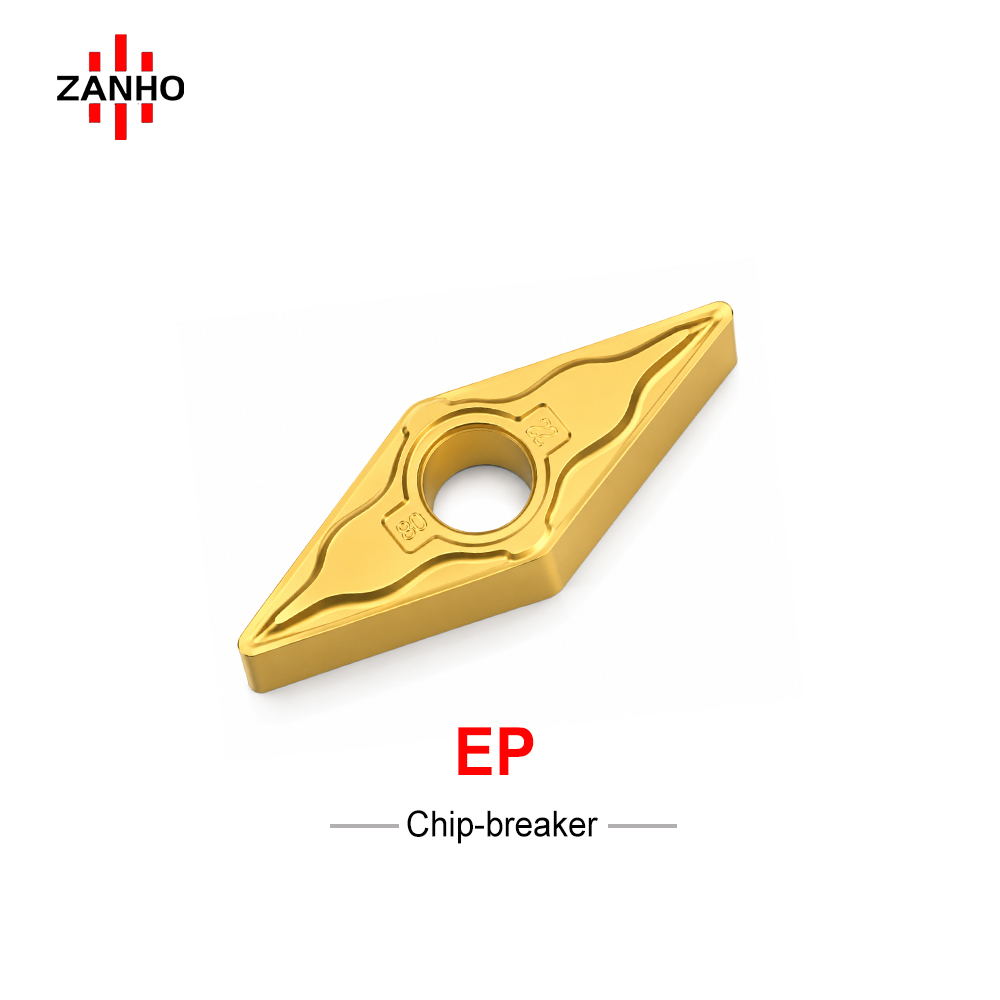

EP Chipbreaker Geometry: Specifically engineered for stable chip breaking at medium feed rates, effectively preventing chip nesting and surface damage.
Rhombic Stability: The VNMG 35-degree rhombic design provides excellent clearance for complex profiling, multi-directional turning, and reaching narrow workpiece sections.
Strong Cutting Edge: Enhanced edge toughness allows for stable machining even in slightly interrupted cuts or with varying depths of cut.

Technical Specifications

Model	Radius (re)	Feed (fn)	Cut Depth (ap)
VNMG12T304-EP	0.4 mm	0.10 - 0.50	0.5 - 5.0 mm
VNMG12T308-EP	0.8 mm	0.20 - 0.50	0.5 - 5.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade and coating based on your specific steel hardness and workpiece complexity.
