VNMG-43

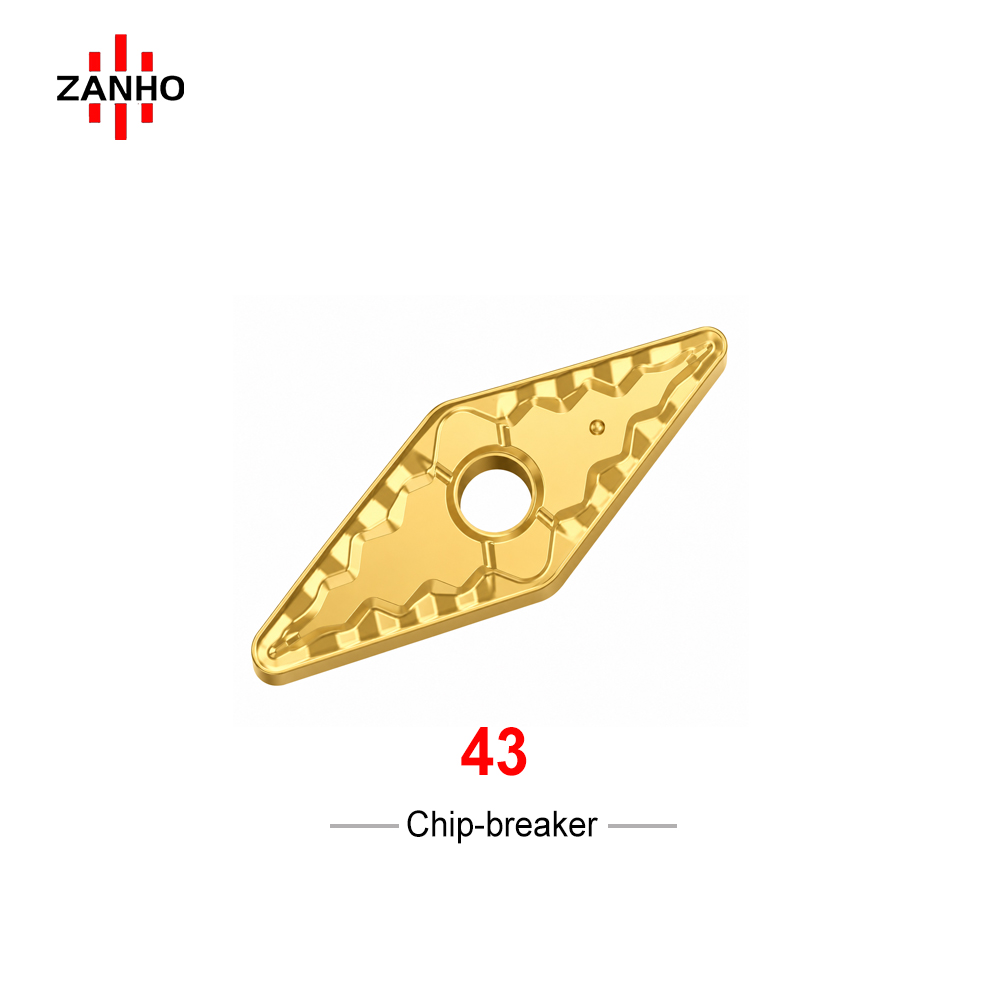

ZANHO VNMG1604-43 series is a robust 35° rhombic negative turning insert specifically designed for Semi-finishing and Medium Machining. Featuring the versatile 43 chipbreaker, it offers excellent chip control across a wide range of cutting conditions, ensuring stable performance and high efficiency in general steel turning.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Specialist: Optimized for semi-finishing to medium machining operations, providing a perfect balance between chip breaking and edge durability.
  • 43 Chipbreaker Geometry: A highly versatile geometry that ensures smooth chip evacuation even at fluctuating cutting depths and feed rates.
  • Rhombic Stability: The VNMG 35-degree rhombic design provides excellent clearance for complex profiling and intricate turning tasks.
  • Stable Performance: Enhanced edge toughness allows for stable machining in both continuous and slightly interrupted cuts, maintaining consistent quality.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
VNMG160404-43 0.4 mm 0.12 - 0.52 0.7 - 4.8 mm
VNMG160408-43 0.8 mm 0.07 - 0.30 0.5 - 2.0 mm
VNMG160412-43 1.2 mm 0.15 - 0.50 1.2 - 5.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
