VNMG-MSF

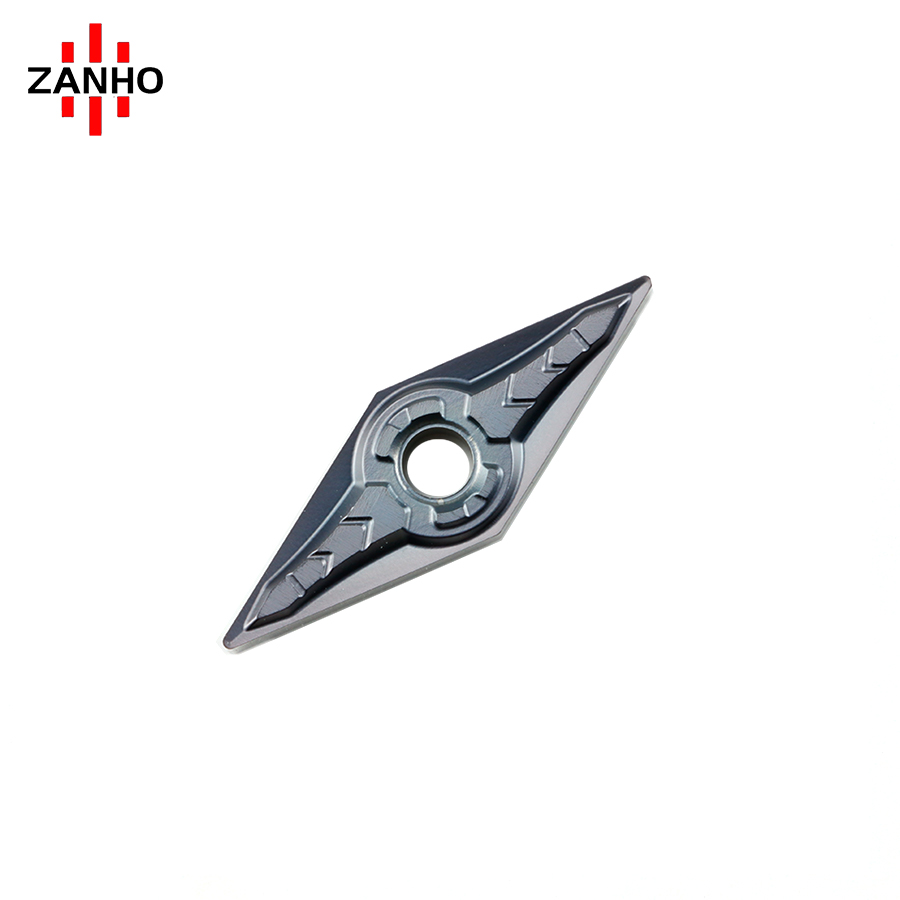

ZANHO VNMG1604-MSF is a professional 35° rhombic negative turning insert specifically designed for High-Precision Finishing. Featuring the specialized MSF chipbreaker, it delivers exceptional surface integrity and stable chip control at light depths, making it ideal for the final machining stages of steel and stainless steel components.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Finishing Specialist: Engineered specifically for high-precision finishing operations, delivering superior surface integrity and dimensional accuracy in professional CNC machining.

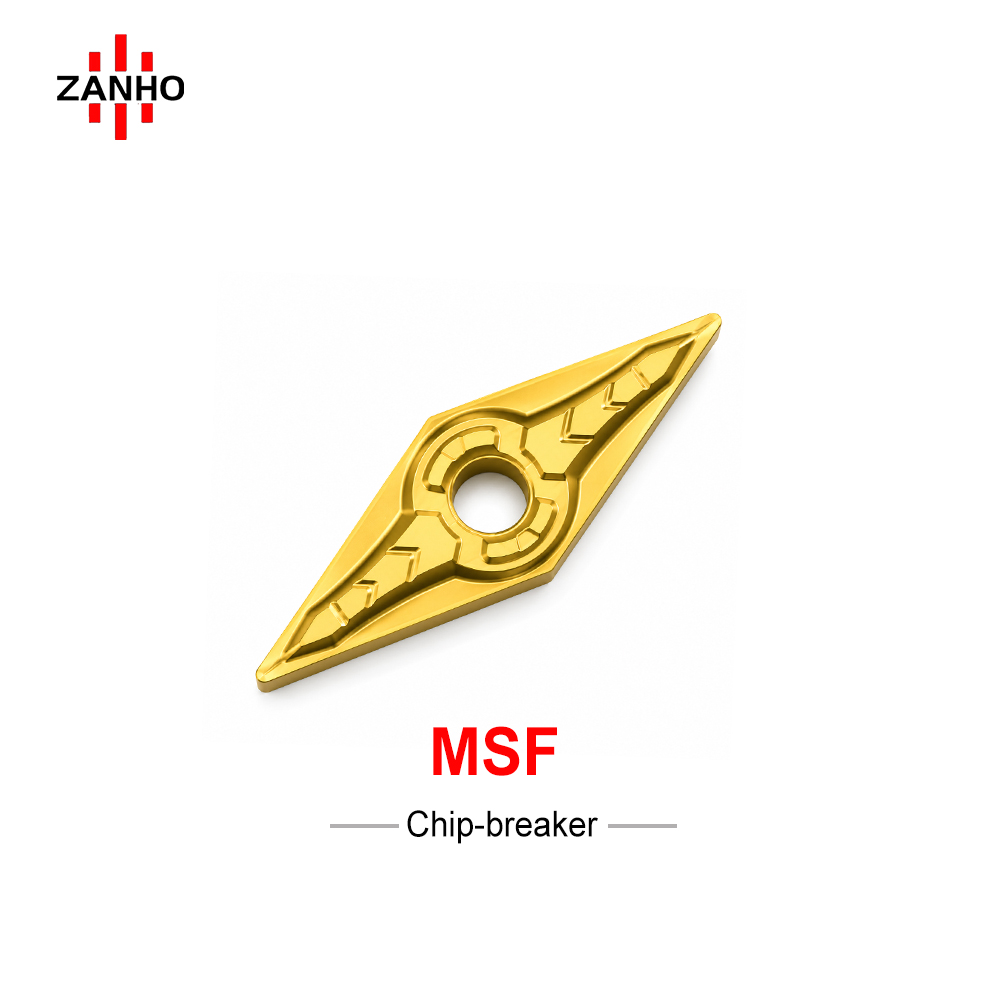

  • MSF Chipbreaker: Optimized for light cutting depths and stable feed rates, ensuring excellent chip breaking and preventing surface marring from long chips.
  • Rhombic Clearance: The VNMG 35-degree rhombic design provides outstanding clearance for complex profiling, multi-directional turning, and reaching narrow workpiece sections.
  • Smooth Cutting: Precision-ground edges reduce cutting resistance and heat buildup, ideal for maintaining tight tolerances even in long-running finishing cycles.

Technical Specifications

Model Radius (re)
VNMG160404-MSF 0.4 mm
VNMG160408-MSF 0.8 mm

Need Custom Technical Parameters?

Our sales team can provide detailed cutting data and recommend the optimal grade based on your specific material and machining requirements.
