VNMG-TM

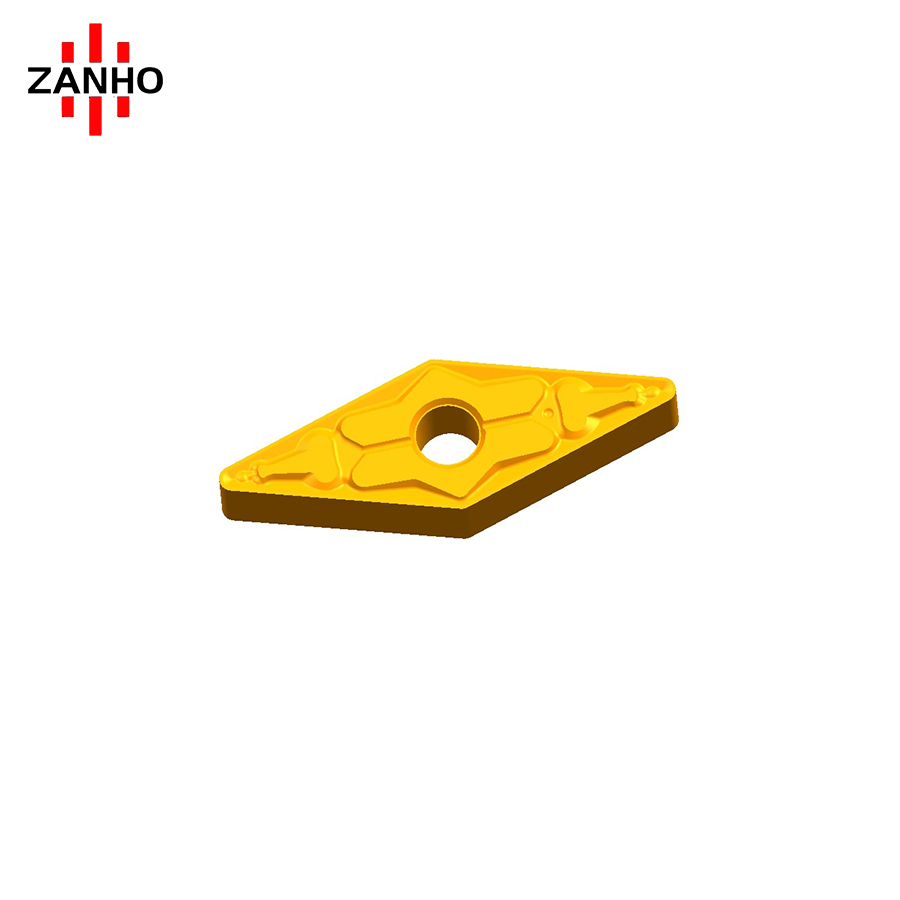

ZANHO VNMG1604-TM series is a robust 35° rhombic negative turning insert specifically designed for Medium Machining. Featuring the specialized TM chipbreaker, it delivers exceptional chip control and stable cutting performance across a wide range of cutting depths, making it ideal for high-efficiency turning of steel and alloy components.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Excellence: Optimized for semi-roughing to medium machining operations, providing a perfect balance between chip breaking and edge durability.

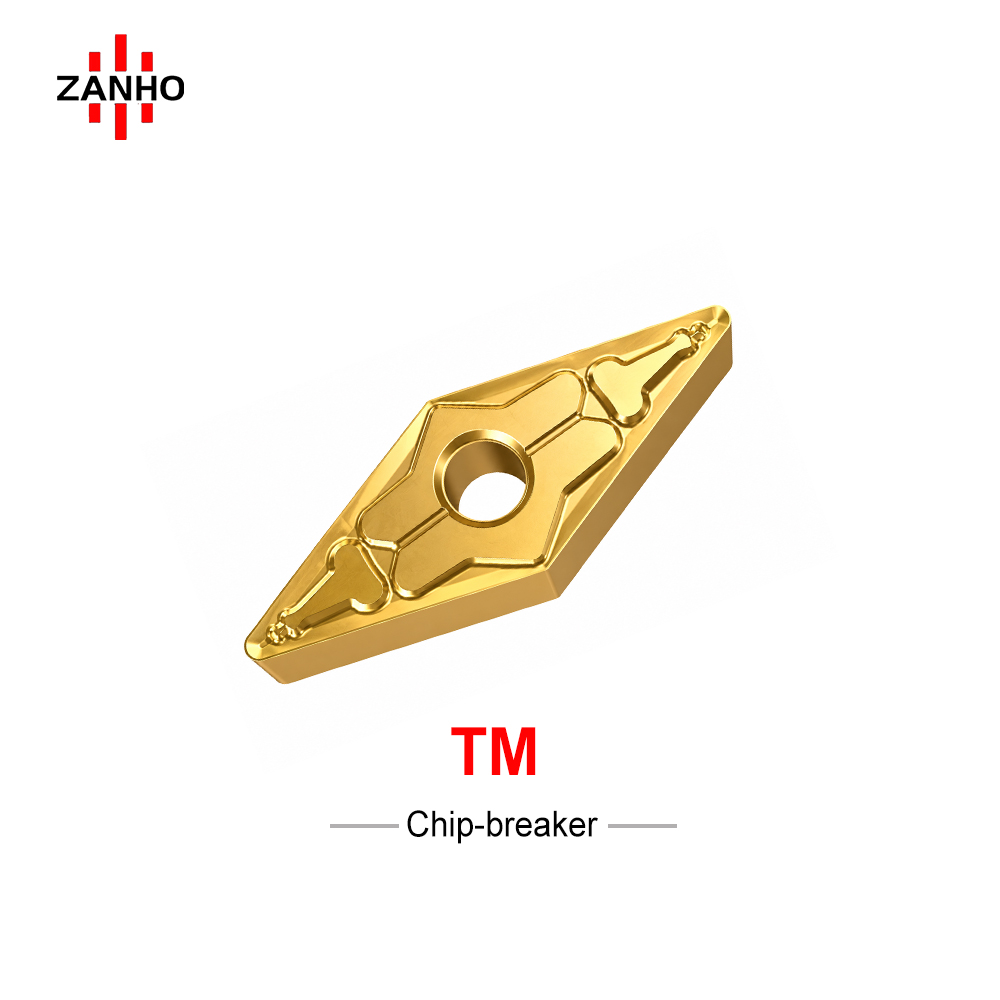

  • TM Chipbreaker: Engineered for stable chip evacuation even at higher feed rates, effectively reducing cutting resistance and heat buildup.
  • Rhombic Stability: The 35-degree VNMG negative design provides excellent clearance for profiling and intricate turning tasks while maintaining high tool life.
  • Strong Cutting Edge: Precision-ground edges enhance surface finish and machining reliability, ideal for maintaining consistent quality in long-running turning cycles.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
VNMG160404-TM 0.4 mm 0.10 - 0.50 0.5 - 5.0 mm
VNMG160408-TM 0.8 mm 0.20 - 0.50 0.5 - 5.0 mm
VNMG160412-TM 1.2 mm 0.25 - 0.55 1.5 - 4.0 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade and coating based on your specific material hardness and machining conditions.
