WNMG-43

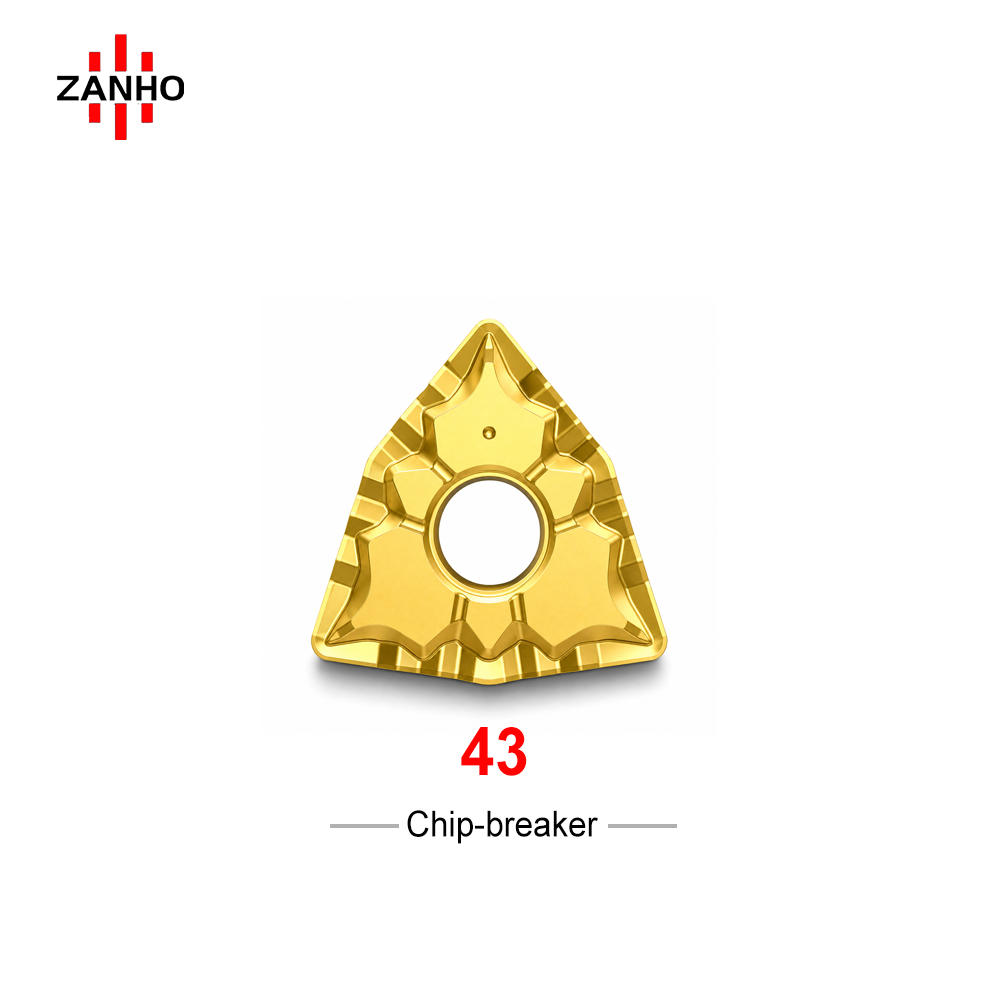

ZANHO WNMG0804-43 is a robust 80° trigon negative turning insert engineered for Semi-finishing and Medium Machining. Featuring the versatile 43 chipbreaker, it offers excellent chip control across a wide range of cutting depths (0.7-4.8mm), ensuring stable performance and high efficiency in general steel and cast iron turning.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

  • Medium Machining Expert: Designed for semi-finishing to medium roughing applications, providing a perfect balance between cutting speed and edge durability.
  • 43 Chipbreaker: A highly versatile geometry that ensures smooth chip evacuation even at fluctuating cutting depths and varying feed rates.
  • Six Cutting Edges: The WNMG negative geometry utilizes a trigon shape to provide 6 effective cutting edges, maximizing tool life and lowering cost-per-part.
  • Strong Edge Design: Enhanced edge strength prevents chipping during interrupted cuts, making it suitable for both continuous and slightly unstable machining environments.

Technical Specifications

Model Radius (re) Feed (fn) Cut Depth (ap)
WNMG080404-43 0.4 mm 0.12 - 0.52 0.7 - 4.8 mm
WNMG080408-43 0.8 mm 0.12 - 0.52 0.7 - 4.8 mm
WNMG080412-43 1.2 mm 0.12 - 0.52 0.7 - 4.8 mm

Need Help Selecting the Right Grade?

Our sales team can recommend the optimal grade based on your workpiece material and machining conditions.
